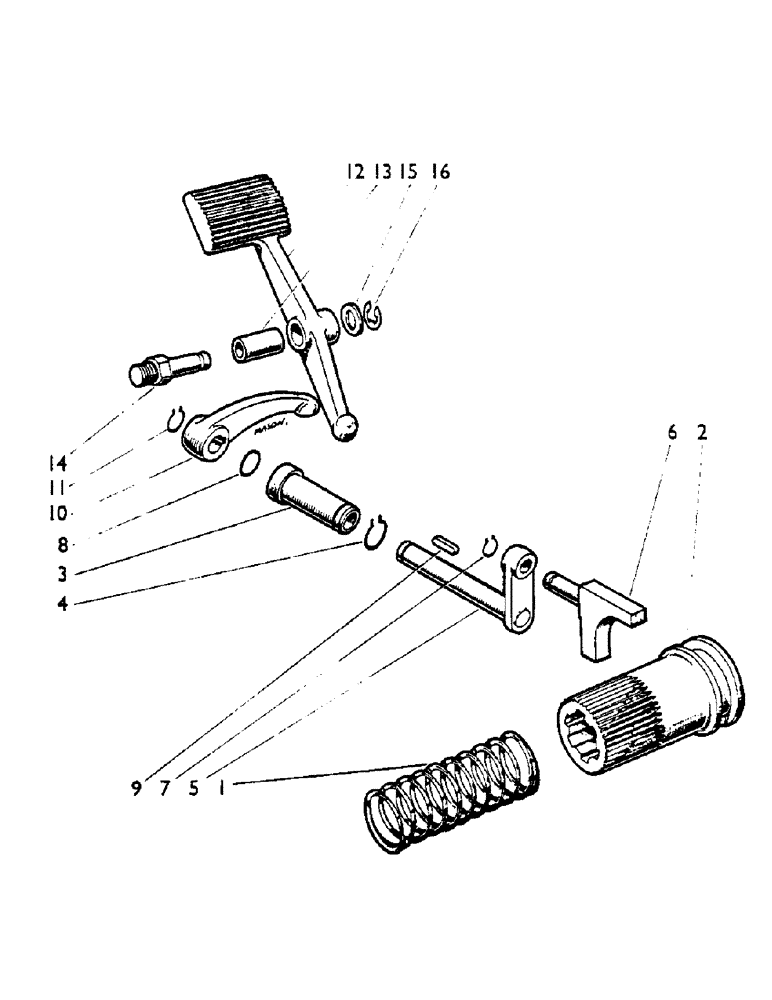

Запчасти Case IH 950 (33) - DIFFERENTIAL LOCK, STANDARD WIDTH MODELS Gearbox

1

K625119

SPRING

Return Spring

1шт.

2

K903191

SLEEVE

Locking Sleeve

1шт.

3

K903494

BUSHING

Bush--Cross Shaft

1шт.

4

K34454

RING, SNAP

Circlip, 7/8 in. Dia. Ext.

1шт.

5

K903197

SHAFT

Cross Shaft and Arm

1шт.

6

K903226

SELECTOR

Fork

1шт.

K19474

HARDWARE

Washer, 1/2 in.

1шт.

7

K11302

RING, SNAP

Circlip, 1/2 in. Ext.

1шт.

8

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

O Ring

1шт.

9

K622309

KEY

3/16 X 5/32 X 3/4 in.

1шт.

10

K903228

LEVER

1шт.

11

K11797

RING, SNAP

Circlip, 5/8 in.

1шт.

12

K903229

PEDAL

1шт.

13

K621346

BUSHING

Bush

1шт.

14

K907643

NO LONGER SERVICED

Pivot Pin--Pedal

1шт.

15

K19474

HARDWARE

Washer, 1/2 in.

1шт.

16

K621589

RING, SNAP

E Clip, 1/2 in

1шт.
