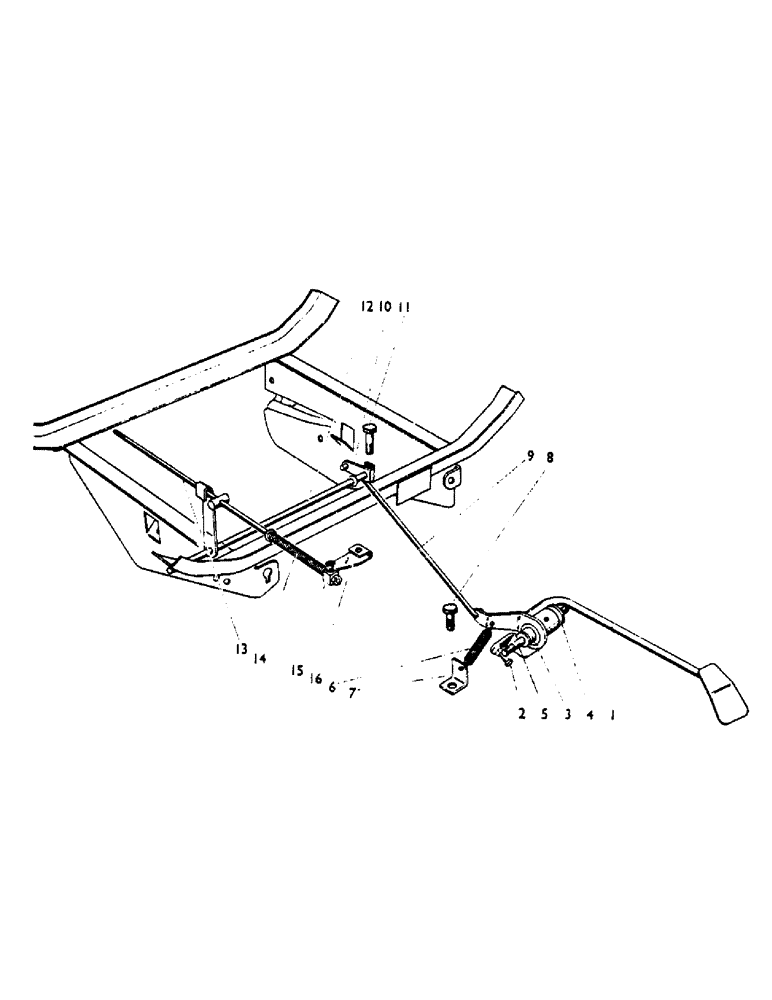

Запчасти Case IH 950 (74) - 906987 FOOT THROTTLE, U377 Engine Controls & Instruments

1

K900015

PEDAL

Accelerator Pedal

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

K626440

WASHER

Copper Washer

1шт.

2

K620500

BOLT

--Special

1шт.

K19440

NUT

Locknut, 1/4 BSF

1шт.

3

K900016

CLUTCH

Cross Shaft Extension

1шт.

4

K88751

WASHER

--Special

1шт.

5

K608222

BOLT

Stud, 3/8 UNC x 3 3/4 in.

1шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in.

1шт.

280136

NUT,3/8"-16, G8

1шт.

6

K30332

SPRING

1шт.

7

K900017

BRACKET

Spring Anchor Bracket

1шт.

8

K603002

BOLT (SPREADER)

Setscrew, 7/16 UNC x 7/8 in.

1шт.

K19483

SPRING WASHER

Spring Washer, 7/16 in.

1шт.

9

K900018

ROD

--Pedal to Cross Shaft

1шт.

K19520

PIN

Split Pin, 1/16 x 3/8 in.

4шт.

K19470

WASHER

1/4 in.

4шт.

10

K89255

LEVER

--Cross Shaft

1шт.

11

K600005

BOLT

1/4 x 1 3/8 in.

1шт.

K19470

WASHER

1/4 in.

1шт.

K19480

SPRING WASHER

Spring Washer, 1/4 in.

1шт.

K607000

NUT

1/4 UNC

1шт.

12

K900020

SHAFT

Cross Shaft and Lever

1шт.

13

K900023

ROD

Control Rod

1шт.

14

K60193

NO LONGER SERVICED

Spring--Control Rod

1шт.

15

K900024

PIN

Pivot Pin

2шт.

K621583

RING, SNAP

E Clip, 1/4 in.

1шт.

K19401

NUT

1/4 BSF

1шт.

K19440

NUT

Locknut, 1/4 BSF

1шт.

16

K900025

LEVER

1шт.
