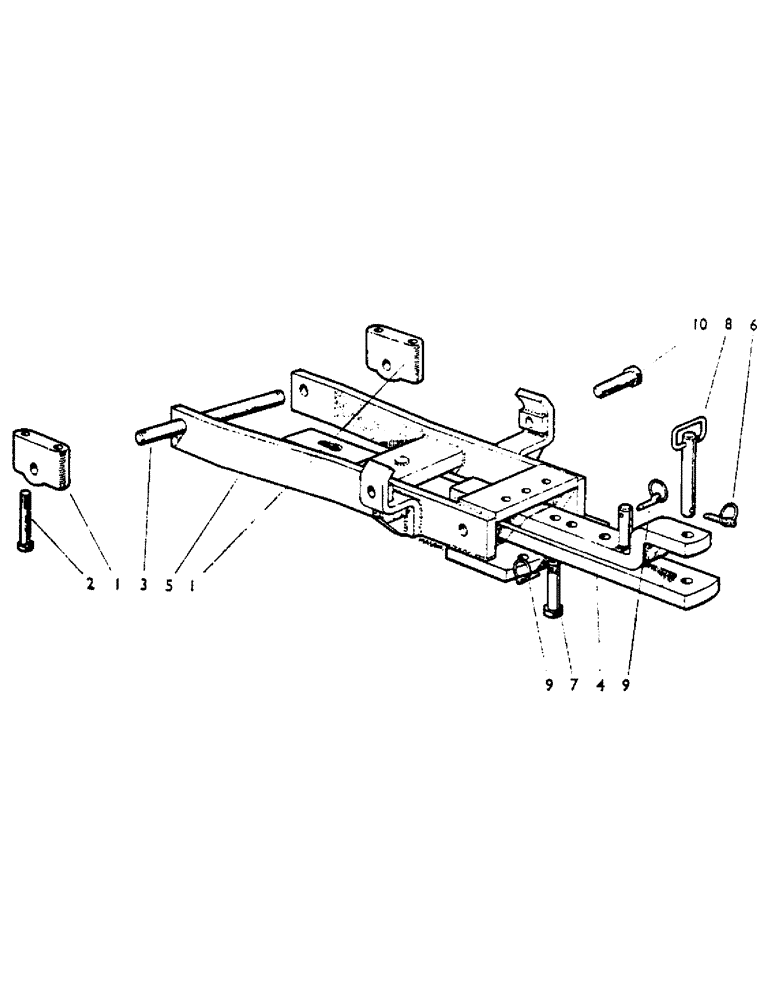

Запчасти Case IH 950 (56) - 906983 UNIVERSAL DRAWBAR, U373, 950 MODELS Drawbars & Hitches

1

K903969

Hinge Bracket

2шт.

2

K601215

BOLT

5/8 UNC x 3 3/4 in.

4шт.

K12994

BEARING WASHER

Tab Washer

4шт.

3

K903935

Hinge Bar

1шт.

K19558

PIN

Split Pin, 1/4 x 1 1/2 in.

2шт.

4

K903937

SPARE PART

Drawbar

1шт.

5

K904491

Drawbar Support

1шт.

6

K900139

PIN

Linch Pin and Ring

1шт.

7

K903940

STOP

Lateral Stop Pin

1шт.

8

K901782

HITCH PIN

1шт.

9

K62995

NO LONGER SERVICED

Linch Pin and Ring

2шт.

10

K908290

STEP BOLT

--Special

2шт.

280954

NUT,3/4"-10, G5

3/4 UNC

2шт.

K19486

WASHER, LOCK

Spring Washer, 3/4 in.

2шт.
