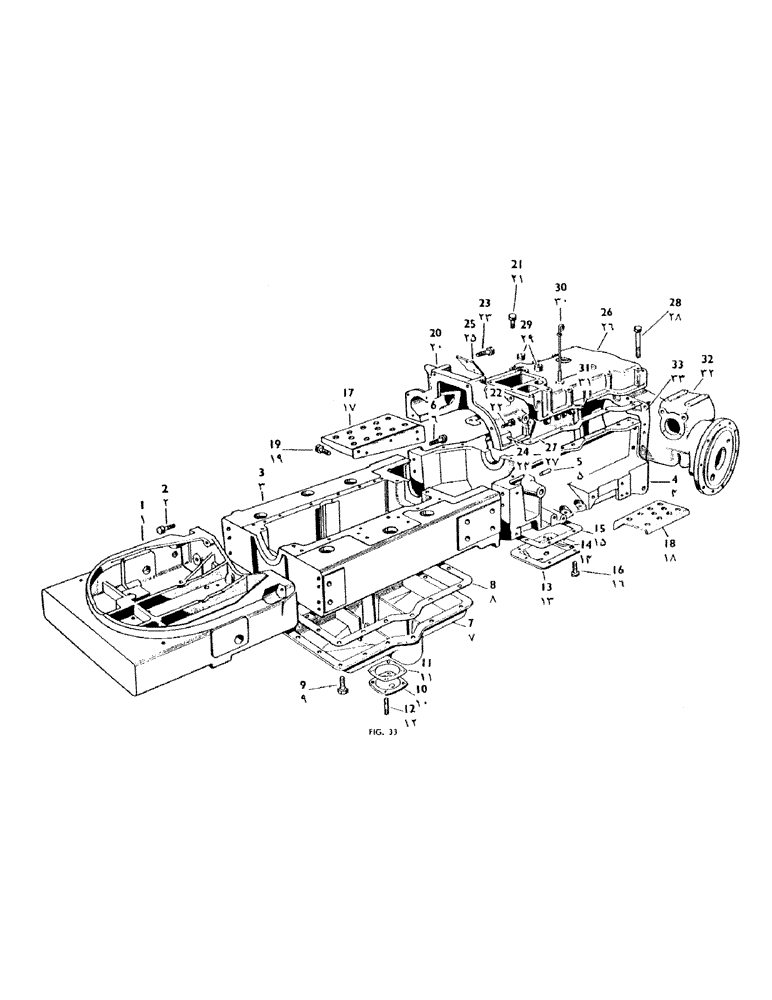

Запчасти Case IH 950 (086) - FRONT EXTENSION, MAIN FRAME AND COVERS (09) - CHASSIS

1

K89357

CASTING

Extension--Front Main Frame

1шт.

2

K19266

Bolt--7/16" B.S.F. x 1 3/4" L. Extension to Front Main Frame

10шт.

K19483

SPRING WASHER

--Spring, 7/16" dia. Extension to Front Main Frame

10шт.

K80217

Main Frame--Front and Rear Halves--Complete, Comprising:

1шт.

3

K901410

Main Frame--Front Half

1шт.

4

K901641

FRAME

Main Frame--Rear Half

1шт.

K19546

PIN

Split Pin--3/16" dia. x 1 1/4" L.

1шт.

5

K30362

PIN

Dowel--7/16" dia.

2шт.

6

K19264

BOLT (SPREADER)

Bolt--7/16" B.S.F. x 1 1/2" L.

4шт.

6

K19262

Bolt--7/16" B.S.F. x 1 1/4" L.

6шт.

K19404

NUT

--Plain, 7/16" B.S.F.

4шт.

K19483

SPRING WASHER

--Spring, 7/16" dia.

10шт.

K627907

X

Red Cap--5/6"

10шт.

7

K16012A

Cover--Engine Sump (Alternative 89763)

1шт.

8

K10042

GASKET

Cover to Front Frame

1шт.

9

K19220

BOLT

--5/16" B.S.F. x 3/4" L. Cover to Front Frame

16шт.

K19481

SPRING WASHER

Washer--Spring, 5/16" dia.

16шт.

10

K10044

Drain Plate--Sump Cover

1шт.

11

K10043

GASKET

Plate to Sump Cover

1шт.

12

K12036

Stud--5/16" B.S.F. x 1 3/16" L. Plate to Sump Cover

4шт.

K19402

NUT

--Plain, 5/16" B.S.F.

4шт.

K19481

SPRING WASHER

Washer--Spring, 5/16" dia.

4шт.

K24850

WASHER

Drain Plug--1/2" Gas

1шт.

K626769

WASHER

Selon Sealing Washer

1шт.

13

K67981

Cover--Rear Sump--With Retainers and Springs

1шт.

K67941

Retainer Bracket

2шт.

14

K31278

Spring--For Oil Filter

2шт.

K16086

Screw--Hammer Driver

2шт.

15

K31277

GASKET

Cover to Rear Frame

1шт.

16

K19241

BOLT

--3/8" B.S.F. x 1" L. Cover to Rear Frame

6шт.

K19482

SPRING WASHER

Washer--Spring, 3/8" dia.

6шт.

K24850

WASHER

Drain Plug--1/2" Gas

1шт.

K19502

WASHER

--Fibre, 1/2" Gas

1шт.

17

K900138

Frame Platform--R.H.

1шт.

17

K904666

Frame Platform--R.H. Introduced October 1960

1шт.

18

K900137

Frame Platform--L.H.

1шт.

19

K19260

BOLT

--7/16" B.S.F. x 1" L.

8шт.

K19483

SPRING WASHER

--Spring, 7/16" dia.

8шт.

20

K89382

Clutch Cover and Flywheel Housing

1шт.

21

K19241

BOLT

--3/8" B.S.F. x 1" L. Housing to Rear Frame

6шт.

K19482

SPRING WASHER

Washer--Spring, 3/8" dia. Housing to Rear Frame

6шт.

22

K19247

Bolt--3/8" B.S.F. x 1 3/4" L. Housing to Support Plate

1шт.

23

K13107

Bolt--3/8" B.S.F. x 4 1/4" L. Housing to Support Plate

2шт.

K19482

SPRING WASHER

Washer--Spring, 3/8" dia. Housing to Support Plate

3шт.

24

K89386

Timing Location Peg

1шт.

25

K89387

COVER

--Clutch Adjustment

1шт.

K903489

Distance Piece

1шт.

K11544

Bolt--1/4" B.S.F. x 1/2" L. Cover and Timing Pointer to Clutch Cover

1шт.

K19201

Bolt--1/4" B.S.F. x 3/4" L. Cover and Timing Pointer to Clutch Cover

1шт.

K19480

SPRING WASHER

--Spring, 1/4" dia. Cover and Timing Pointer to Clutch Cover

2шт.

26

K904163

SPARE PART

Gearbox Cover

1шт.

27

K900815

GASKET

Cover to Rear Frame

2шт.

28

K19275

Bolt--7/16" B.S.F. x 3 3/4" L. Cover to Rear Frame

10шт.

K19483

SPRING WASHER

--Spring, 7/16" dia. Cover to Rear Frame

10шт.

29

K12362

PLUG

Taper Plug--1" B.S.P.

2шт.

30

K904238

DIPSTICK

--Gearbox

1шт.

31

K83884

SLEEVE

--Dipstick

1шт.

32

K903520

Rear Axle Casing For other details refer to figure 124

1шт.

K42850

Drain Plug--1/2" B.S.P. For other details refer to figure 124

1шт.

K19502

WASHER

Fibre Washer--1/2" B.S.P. For other details refer to figure 124

1шт.

33

K30893

GASKET

--Casing to Rear Frame For other details refer to figure 124

1шт.
