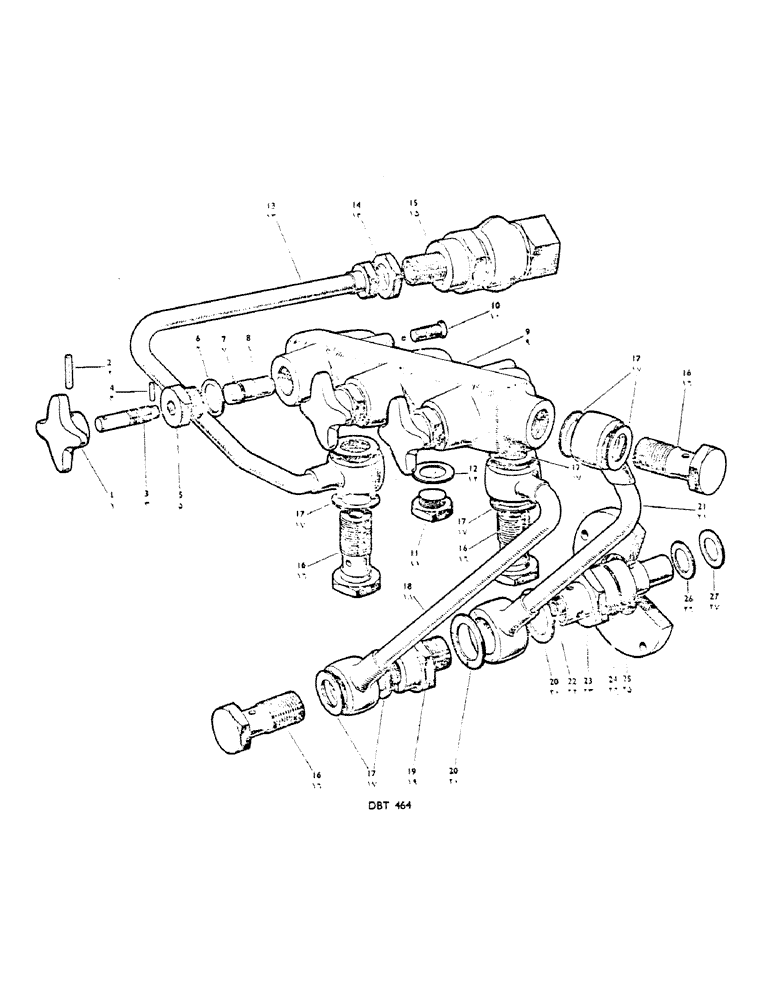

Запчасти Case IH 950 (170) - EXTERNAL THREE-WAY HYDRAULIC VALVE (08) - HYDRAULICS

K902761

VALVE, CHECK

Selector Valve Assembly, Comprising

1шт.

1

K901871

SPARE PART

Handwheel

3шт.

2

K623727

GROOVED PIN,5/32" x 7/8", Type A

Pin, Grooved, , L. Mills GP.I. 5/32" x 7/8", Type A

3шт.

3

K901869

SPARE PART

Valve Spindle

3шт.

4

K623730

PIN

3шт.

5

K901870

BUSHING, LARGE

Screwed Bush

3шт.

6

K15143

WASHER

Copper Washer

3шт.

7

K623534

O-RING,0.352" OD x 0.103" Width

'O' Sealing Ring

3шт.

8

K901868

PLUNGER

3шт.

9

K901867

Valve Body

1шт.

10

K624712

SCREW

--C'sk. Hd., 5/16" B.S.F. x 5/8" L.

4шт.

11

K24850

WASHER

Plug--1/2" B.S.P.

1шт.

12

K626783

WASHER

Sealing Washer--1/2" B.S.P.

1шт.

13

K901883

PIPE

--Valve, Serial Range: Body-Take-Off

1шт.

14

K19647

NUT

Locknut

1шт.

15

K34087

COUPLING

Exactor Coupling

1шт.

16

K901876

UNION

Banjo Bolt--1/2" B.S.P.

4шт.

17

K626783

WASHER

Sealing Washer--1/2" B.S.P.

7шт.

18

K901885

PIPE

--Valve Body to Distributor From Tractor 70662 Inclusive

1шт.

18

K903094

SPARE PART

Pipe--Valve, Serial Range: Body-Distributor

1шт.

K30100

UNION

Adaptor--Union--1/2" B.S.P. From Tractor 70662 Inclusive

1шт.

19

K901875

DISTRIBUTOR

Extension

1шт.

20

K626785

WASHER

Sealing Washer

2шт.

21

K901887

PIPE

--Distributor to Valve Body

1шт.

22

K24701

O-RING,0.426" ID x 0.566" OD x 0.07"

Cord Ring--7/16" dia.

1шт.

23

K901874

DISTRIBUTOR

Body and Tube

1шт.

24

K24618

O-RING

'O' Ring--1 5/16" dia.

1шт.

25

K905475

Cover Plate (Replaces 901877) From Tractor 70662 Onwards

1шт.

26

K626784

WASHER,23.24mm ID x 33.34mm OD x 2.34mm Thk

Sealing Washer--1/2" B.S.P. From Tractor 70662 Onwards

1шт.

27

K626782

WASHER

Sealing Washer

1шт.

K690419

Plug--3/8" B.S.P. (Red Cap)

1шт.
