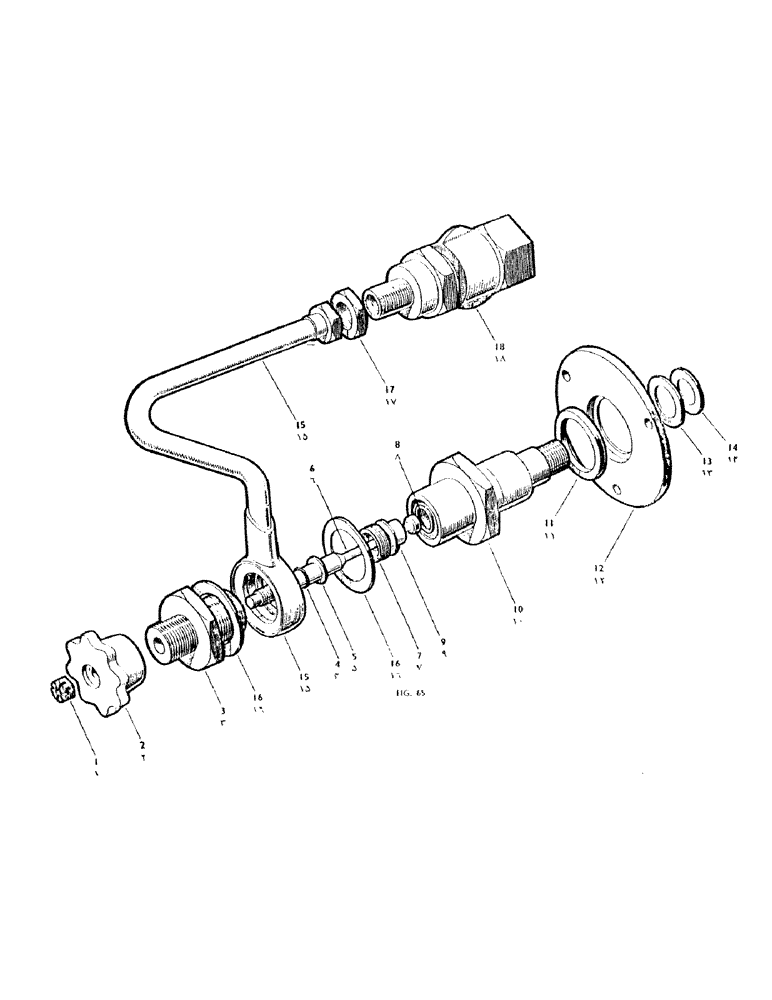

Запчасти Case IH 950 (168) - HYDRAULIC VALVE AND EXTERNAL TAKE-OFF (08) - HYDRAULICS

1

K19450

Nut--Slotted, 1/4" B.S.F. Spindle to Hand Nut

1шт.

K11934

PIN

Split Pin--1/16" dia. x 5/8" L. Spindle to Hand Nut

1шт.

2

K64586

NUT

Hand Adjusting Nut

1шт.

3

K64587

Gland Nut

1шт.

4

K37710

SPARE PART

Cord Ring

1шт.

5

K37711

WASHER

Retaining Washer

1шт.

6

K64585

VALVE

Spindle

1шт.

7

K37706

NUT

Locating Nut

1шт.

8

K37708

Copper Washer

1шт.

9

K901383

Valve Seat

1шт.

10

K37697

Valve Body

1шт.

11

K37709

GASKET

Cord Ring--Valve Body to Support Plate

1шт.

12

K38705

PLATE ASSY.

Support Plate--To Rear Axle Casing

1шт.

13

K11537

SPARE PART

Copper Asbestos Washer--23 mm. dia.

1шт.

14

K11536

Copper Asbestos Washer--18 mm. dia.

1шт.

15

K87571

Pipe--Complete

1шт.

16

K37712

WASHER

Copper Asbestos Washer

2шт.

17

K19647

NUT

Locknut--1/2" B.S.F.

1шт.

18

K34087

COUPLING

Exactor Coupling

1шт.
