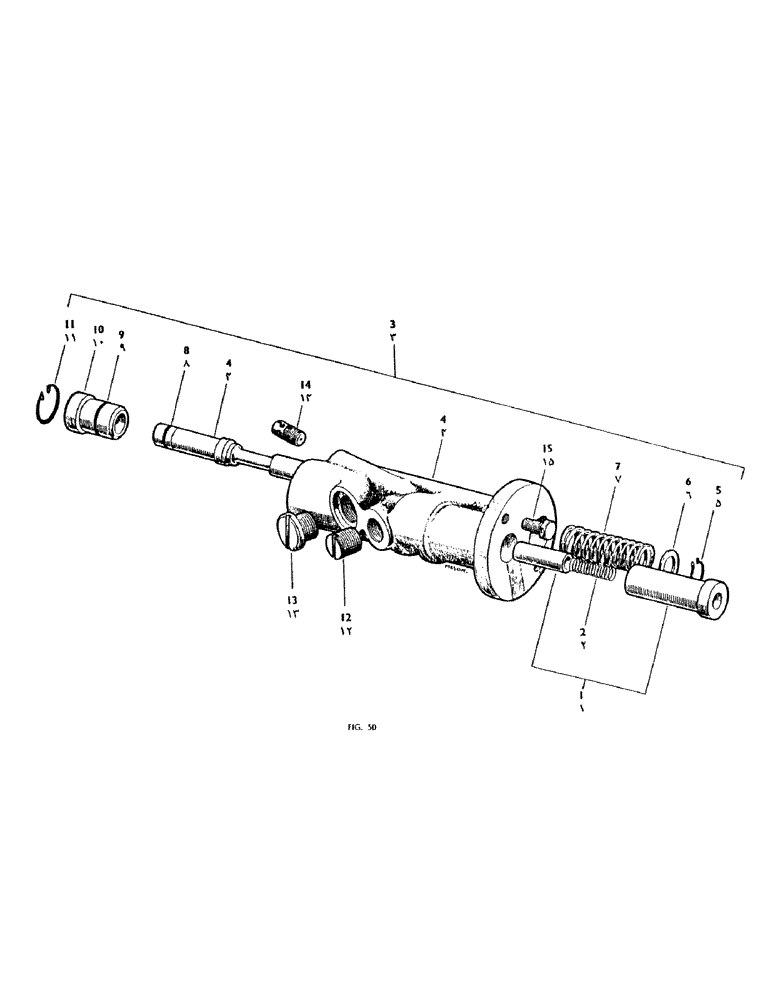

Запчасти Case IH 950 (132) - T.C.U. AND T.D.C. VALVE (08) - HYDRAULICS

1

K88615

SPRING

T.C.U. Valve, Spring and Plunger

1шт.

2

K12043

SPRING

only

1шт.

3

K904147

SPARE PART

Valve Body and T.D.C. Valve Assembly, Comprising Refs. 4 - 14

1шт.

4

K904148

VALVE BODY

and T.D.C. Spindle

1шт.

5

K15457

Circlip

1шт.

6

K902978

Thrust Washer

1шт.

7

K625117

Return Spring

1шт.

8

K24554

O-RING

O Ring--1/2" O./dia.

1шт.

9

K623540

O-RING,0.614" ID x 0.754" OD x 0.07"

O Ring--3/4" O./dia.

1шт.

10

K902976

SLEEVE

1шт.

11

K14143

Circlip--7/8" dia. Internal

1шт.

12

K14660

Grub Screw

1шт.

13

K623822

Plug--Valve Body

1шт.

K626780

WASHER

1шт.

14

K904835

Restrictor Plug

1шт.

15

K19222

BOLT

--5/16" B.S.F. x 1" L. Valve Body Fixing

2шт.

K19481

SPRING WASHER

Washer--Spring, 5/16" dia. Valve Body Fixing

2шт.
