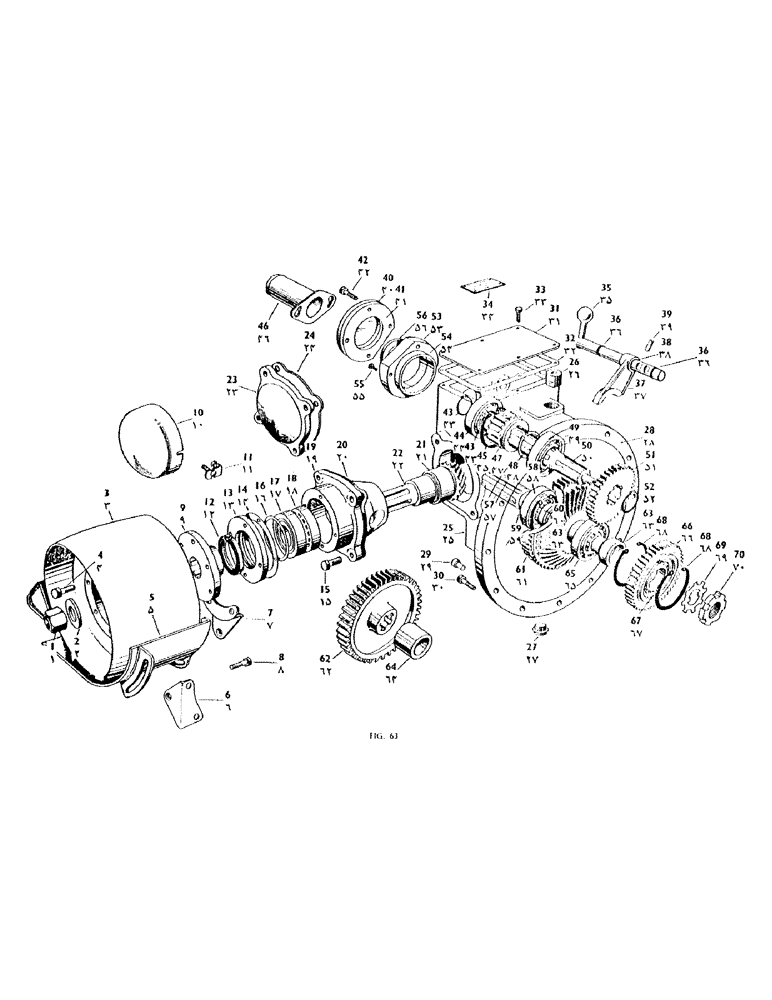

Запчасти Case IH 950 (162) - P.T.O. AND BELT PULLEY (06) - POWER TRAIN

K902159

P.T.O. and Pulley Centre 950

1шт.

K902158

P.T.O. and Pulley Centre 950 Livedrive

1шт.

1

K623000

NUT

Nyloc Nut--3/4" B.S.F.

1шт.

2

K19493

WASHER

--Plain

1шт.

3

K903009

Belt Pulley Rim--6 1/2" wide Alternatives

1шт.

3

K32049

PULLEY

Belt Pulley Rim--5 3/16" wide Alternatives

1шт.

4

K19241

BOLT

--3/8" B.S.F. x 1" L. Pulley, Serial Range: Rim-Centre

6шт.

K19482

SPRING WASHER

Washer--Spring, 3/8" dia. Pulley, Serial Range: Rim-Centre

6шт.

5

K903176

Guard--Belt Pulley

1шт.

6

K903177

Support Bracket

1шт.

7

K903999

Support Bracket

1шт.

8

K19456

NUT

Bolt--3/8" B.S.F. x 3/4" L. ?56

2шт.

K19482

SPRING WASHER

Nut--Plain, 3/8" B.S.F.

2шт.

K19472

WASHER

--Plain, 3/8" dia.

2шт.

9

K30868

CENTRALIZER

Centre--Belt Pulley

1шт.

10

K901679

Guard--Pulley Centre

1шт.

11

K901680

Support Clip

2шт.

K14971

Nyloc Nut--1/4" B.S.F.

2шт.

12

K13709

SEAL

Oil Seal--1 15/16" Shaft dia.

1шт.

13

K89205

BEARING

Retainer

1шт.

14

K89206

JOINT

Gasket Retainer to Bearing Housing

1шт.

15

K19222

BOLT

--5/16" B.S.F. x 1" L. Retainer to Bearing Housing

4шт.

K19481

SPRING WASHER

Washer--Spring, 5/16" dia. Retainer to Bearing Housing

4шт.

16

K89208

SHIM,.003" Thk

Normal Requirements .003" Thk

2шт.

16

K89209

SHIM,.005" Thk

Normal Requirements .005" Thk

1шт.

16

K89210

SHIM,.007" Thk

Normal Requirements .007" Thk

1шт.

17

K19055

ROLLER

Bearing--Roller, Hoff. R.L.S. 12 1/2

1шт.

18

K19165

BALL

Bearing--Ball, Hoff. Duplex L. 12 1/2 CD.

1шт.

19

K89200

Bearing Housing--Bevel Pinion Shaft

1шт.

20

K89201

SHIM,.003" Thk

Normal Requirements .003" Thk

2шт.

20

K89202

SHIM,.005" Thk

Normal Requirements .005" Thk

2шт.

20

K89203

SHIM,.007" Thk

Normal Requirements .007" Thk

2шт.

K19262

Bolt--7/16" B.S.F. x 1 1/4" L., Serial Range: Housing-Case

4шт.

K19483

SPRING WASHER

--Spring, 7/16" dia., Serial Range: Housing-Case

4шт.

21

K19166

NEEDLE

Bearing--Needle Roller

1шт.

22

K89207

SPARE PART

Bevel Pinion Shaft--(17T)

1шт.

23

K901509

SPARE PART

Blanking Cover--P.T.O. only

1шт.

24

K89204

SPARE PART

Gasket--P.T.O. only

1шт.

25

K89173

Case (Modified)

1шт.

26

K14518

PLUG

Taper Plug--3/4" B.S.F.

1шт.

27

K24850

WASHER

Drain Plug--1/2" B.S.P. Discontinued

1шт.

K19502

WASHER

--Fibre, 1/2" B.S.P. Discontinued

1шт.

28

K89175

GASKET

1шт.

29

K24827

PIN

Headed Dowel--7/16" dia. x 1 3/4" L. Case and Support, Serial Range: Plate-R.A.C.

1шт.

30

K19267

Bolt--7/16" B.S.F. x 1 7/8" L. Case and Support, Serial Range: Plate-R.A.C.

11шт.

K19483

SPRING WASHER

--Spring, 7/16" dia. Case and Support, Serial Range: Plate-R.A.C.

11шт.

31

K905255

Top Cover--(Replaces 89177)

1шт.

K11574

Screw--C'sk. Hd. 5/16" B.S.F.x5/8" L.

3шт.

32

K89176

GASKET

, Serial Range: Cover-Case

1шт.

33

K19346

Bolt--5/16" B.S.F. x 5/8" L., Serial Range: Cover-Case

3шт.

K19481

SPRING WASHER

Washer--Spring, 5/16" dia., Serial Range: Cover-Case

3шт.

34

K89199

Instruction Plate--(Required in conjunction with cover 89177), Discontinued

1шт.

K624009

Rivet--3/32" dia. x 1/4" L. Discontinued

4шт.

K905262

Transfer--(To be used in conjunction with cover 905255)

1шт.

35

K904582

Selector Rod Assembly

1шт.

36

K15290

O-RING

O Ring

1шт.

37

K89198

Selector Fork

1шт.

38

K621561

SPARE PART

Circlip--3/4" dia. External

2шт.

39

K30580

Locking Pin

1шт.

40

K900743

End Cover--Driveshaft

1шт.

41

K30579

JOINT

End, Serial Range: Cover-Case

1шт.

42

K15750

Bolt--5/16" B.S.F. x 1 1/8" L. End, Serial Range: Cover-Case

4шт.

K19481

SPRING WASHER

Washer--Spring, 5/16" dia. End, Serial Range: Cover-Case

4шт.

43

K14337

CIRCLIP

--1 3/8" dia. External

2шт.

44

K19021

BALL

Bearing--Ball Hoff. 135

1шт.

45

K13053

RING, SNAP

Circlip--Seeger 72 mm. dia. Internal

1шт.

46

K902370

SPARE PART

Safety Cover--P.T.O. Shaft

1шт.

47

K89184

Pinion--Driveshaft (15T)

1шт.

48

K14337

CIRCLIP

--1 3/8" dia. External

1шт.

49

K19021

BALL

Bearing--Ball Hoff. 135

1шт.

50

K89182

Driveshaft (Livedrive)

1шт.

50

K900576

Driveshaft (Non-Livedrive)

1шт.

51

K89183

Driving Gear--Driveshaft (37T)

1шт.

52

K14337

CIRCLIP

--1 3/8" dia. External

1шт.

53

K89474

SUPPORT ASSY.

Support Housing--P.T.O. Shaft

1шт.

54

K89475

X

Shim--.003" Thick, ".037" Normal to give .004"--.006"

1шт.

54

K89476

Shim--.005" Thick, ".037" Normal to give .004"--.006"

1шт.

54

K89477

Shim--.015" Thick, ".037" Normal to give .004"--.006"

2шт.

55

K15750

Bolt--5/16" B.S.F. x 1 1/8" L., Serial Range: Housing-Case

4шт.

K19481

SPRING WASHER

Washer--Spring, 5/16" dia., Serial Range: Housing-Case

4шт.

56

K11119

OIL SEAL

Oil Seal--1 5/8" dia. Shaft

1шт.

57

K89185

X

Driven Shaft

1шт.

58

K19021

BALL

Bearing--Ball. Hoff. 135

1шт.

59

K13053

RING, SNAP

Circlip--Seeger, 72 mm. dia. Internal

1шт.

60

K89188

Distance Piece--(.244" Thick)

1шт.

61

K89186

SPARE PART

Combined Bevel and Spur Gear--(37T--50T) Required for Belt Pulley and P.T.O.

1шт.

62

K89062

Spur Wheel--(50T) P.T.O. only

1шт.

63

K89190

Distance Piece--(.700" Thick) Belt Pulley and P.T.O.

2шт.

64

K901640

Distance Piece--P.T.O. only

1шт.

65

K19021

BALL

Bearing--Ball Hoff. 135

1шт.

66

K89187

Idler Gear--P.T.O. Shaft (44T)

1шт.

67

K19021

BALL

Bearing--Ball Hoff. 135

1шт.

68

K13053

RING, SNAP

Circlip--Seeger, 72 mm. Internal

2шт.

69

K901292

Tab Washer

1шт.

70

K623302

NUT

Special Locknut

1шт.
