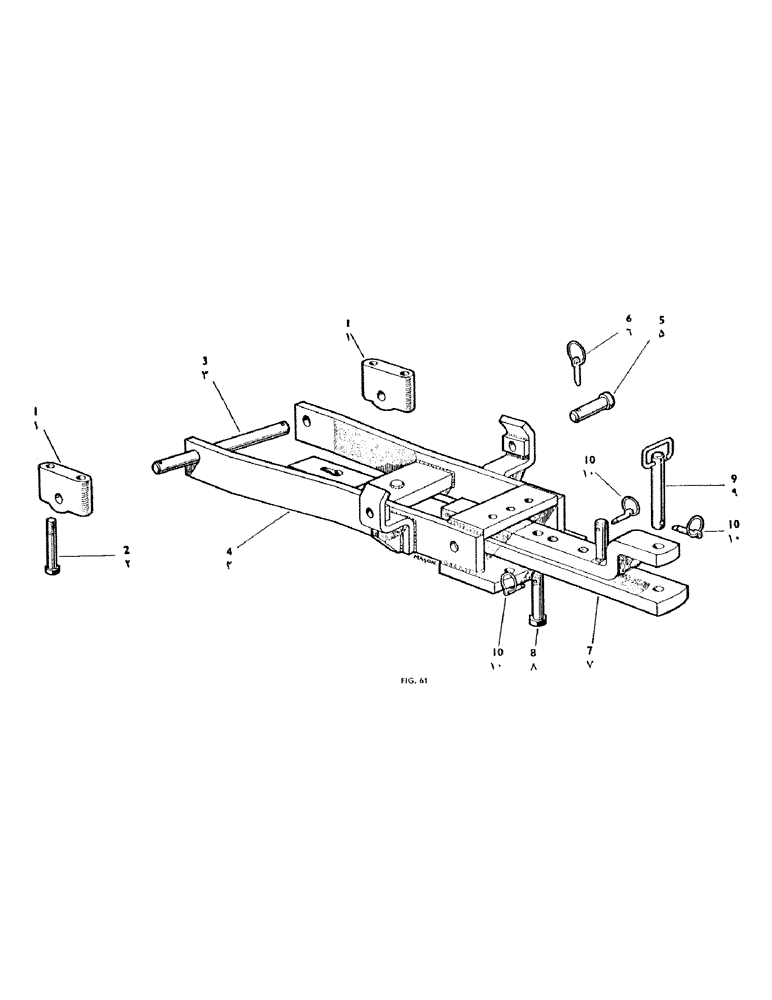

Запчасти Case IH 950 (158) - UNIVERSAL DRAWBAR (06) - POWER TRAIN

K903939

Universal Drawbar--Complete, Comprising

1шт.

1

K903969

Hinge Bracket

2шт.

2

K19312

Bolt--5/8" B.S.F. x 3 3/4" L.

4шт.

K12994

BEARING WASHER

Tab Washer

2шт.

3

K903935

Hinge Bar

1шт.

K19558

PIN

Split Pin--1/4" dia. x 1 1/2" L.

2шт.

4

K904491

Drawbar Support (replaces 903938)

1шт.

5

K903936

Selector Pin

2шт.

6

K62995

NO LONGER SERVICED

Linch Pin and Ring

2шт.

7

K903937

SPARE PART

Drawbar

1шт.

8

K903940

STOP

Lateral Stop Pin

1шт.

9

K901782

HITCH PIN

Drawbar Hitch Pin

1шт.

10

K62995

NO LONGER SERVICED

Linch Pin and Ring

3шт.
