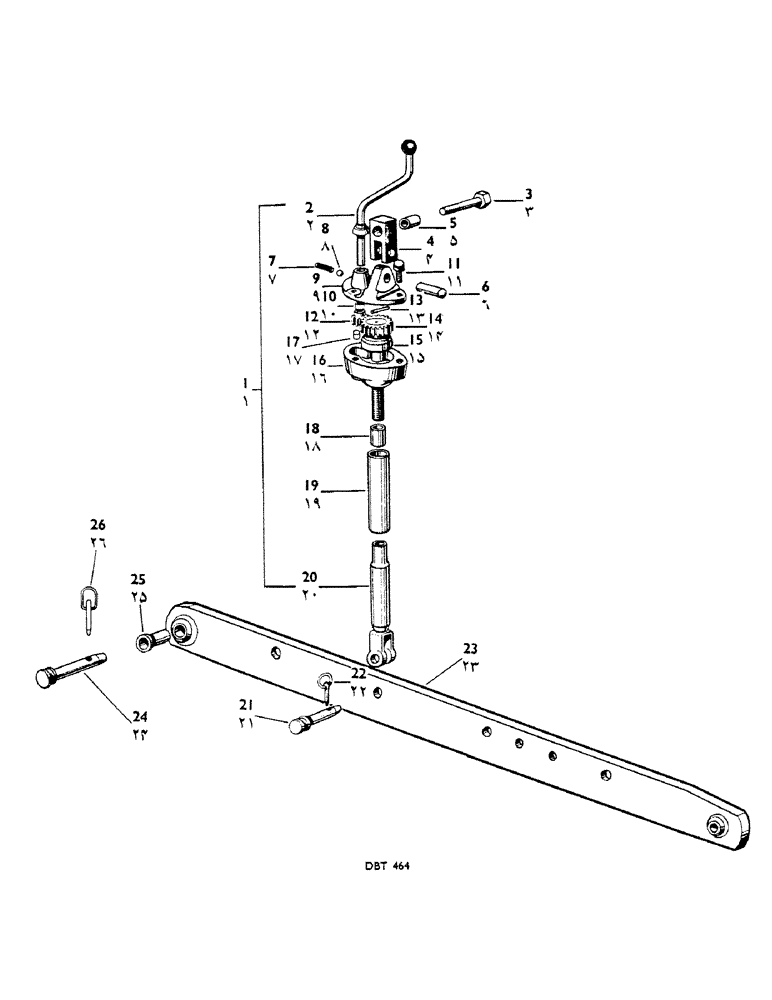

Запчасти Case IH 950 (152) - LEVELLING LEVER AND LOWER LINK (06) - POWER TRAIN

1

K901978

Levelling Lever Assembly, Comprising Refs. 2 - 20

1шт.

1

K903217

Levelling Lever Sub Assembly, Comprising Refs. 2 - 19

1шт.

2

K901952

Hand Lever and Shield

1шт.

3

K19745

Bolt--3/4" B.S.F.x 3 3/4" L. Levelling Lever to Lift Arm

1шт.

K24428

LOCK NUT

Nyloc Nut--3/4" B.S.F. Levelling Lever to Lift Arm

1шт.

K19476

WASHER

--Plain, 3/4" dia. Levelling Lever to Lift Arm

1шт.

4

K901960

FORK

End

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

5

K901963

BUSHING

Bush--Fork End

1шт.

6

K901962

PIN

Pivot Pin--Fork, Serial Range: End-Housing

1шт.

7

K625128

VALVE SPRING

Spring

1шт.

8

K11483

BALL

Steel Ball--3/16" dia.

1шт.

9

K902185

CAP

Gear Housing Cap--c/w Bush

1шт.

10

K621340

BUSHING

Bush

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

11

K19241

BOLT

--3/8" B.S.F. x 1" L. Cap to Gear Housing

3шт.

K19482

SPRING WASHER

Washer--Spring, 3/8" dia. Cap to Gear Housing

3шт.

12

K901951

GEAR

Spur Pinion

1шт.

13

K12935

PIN

--5/32" dia. 3/4" L Mills G.P. 3

1шт.

14

K903826

Levelling Screw and Gear

1шт.

15

K19187

THRUST BEARING

1шт.

16

K902186

Gear Housing--c/w Bushes

1шт.

17

K621340

BUSHING

Bush

1шт.

18

K621339

BUSHING

Bush

1шт.

19

K901956

Outer Tube

1шт.

20

K901957

Adjusting Nut

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

21

K903399

HITCH PIN

Link Pin

1шт.

22

K66408

PIN

Linch Pin and Ring

1шт.

23

K904247

LINK ASSY.

Lower Link Assembly--R.H.

1шт.

K46800

Clip--Linch Pin

2шт.

K19664

Rivet--3/16" dia. x 7/8" L.

4шт.

24

K900054

LINK

Pin

1шт.

25

K900055

BUSHING

Bush

1шт.

26

K900139

PIN

Linch Pin and Ring

1шт.
