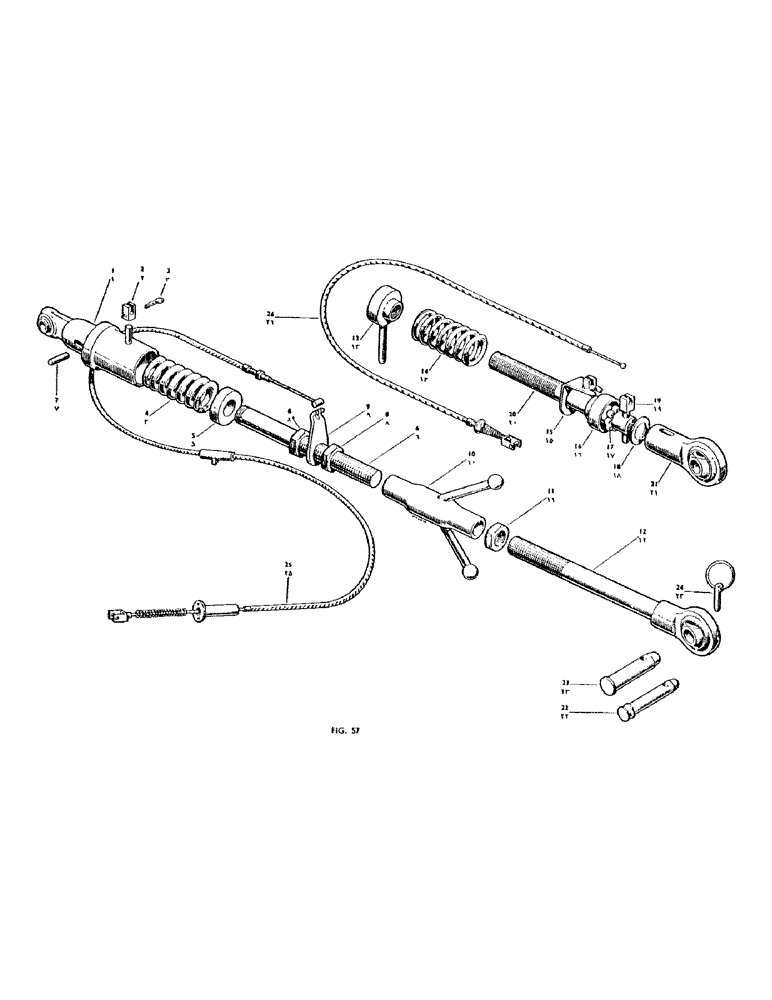

Запчасти Case IH 950 (150) - TOP LINK, T.D.C., SINGLE ENDED AND OVERLOAD RELEASE (06) - POWER TRAIN

1

K904211

HOUSING

Spring Housing

1шт.

2

K903428

CABLE

Outer Cable Abutment

1шт.

3

K38632

SPRING

Clip

1шт.

4

K902884

Spring

1шт.

5

K903063

Abutment Washer

1шт.

6

K903911

SPARE PART

Screwed Shaft

1шт.

7

K904249

SPARE PART

Pin

1шт.

K623900

PIN

--"Unbrako" Spring--3/8" x 2 1/4"

1шт.

K623910

SPARE PART

Pin--"Unbrako" Spring--7/32" x 2 1/4"

1шт.

8

K19448

LOCK NUT

Locknut--1 1/4" B.S.F.

2шт.

9

K903430

Inner Cable Abutment

1шт.

10

K46246

NO LONGER SERVICED

Turnbuckle

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

11

K623308

NUT

Locknut--1 1/4" B.S.F., L.H.

1шт.

12

K904212

NO LONGER SERVICED

Screw and Housing

1шт.

13

K904266

NUT

Adjusting Nut

1шт.

14

K46243

SPRING

1шт.

15

K46242

CABLE

Retainer

1шт.

16

K46241

Thrust Collar

1шт.

17

K13506

BALL

1шт.

18

K46240

WASHER

Thrust Washer

11шт.

19

K46239

CABLE

Retainer and Pin

1шт.

20

K904264

Ball Locating Shaft

1шт.

21

K904262

BALL

Rear Ball End Assembly

1шт.

22

K903981

HITCH PIN

--(Category 1)

1шт.

23

K65690

HITCH PIN

--(Category 2)

1шт.

24

K62995

NO LONGER SERVICED

Linch Pin and Ring

1шт.

25

K903415

Cable Assembly--T.D.C.

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

K906182

RUBBER

Excluder--Dirt

1шт.

K19925

Clip

1шт.

K12121

SCREW

--2 B.A. x 1/2" L.

2шт.

K19488

SPRING WASHER

--Spring, 3/16" dia.

2шт.

K960908

Adjusting Screw and Nut

1шт.

26

K904560

CABLE

Assembly--Overload Release

1шт.
