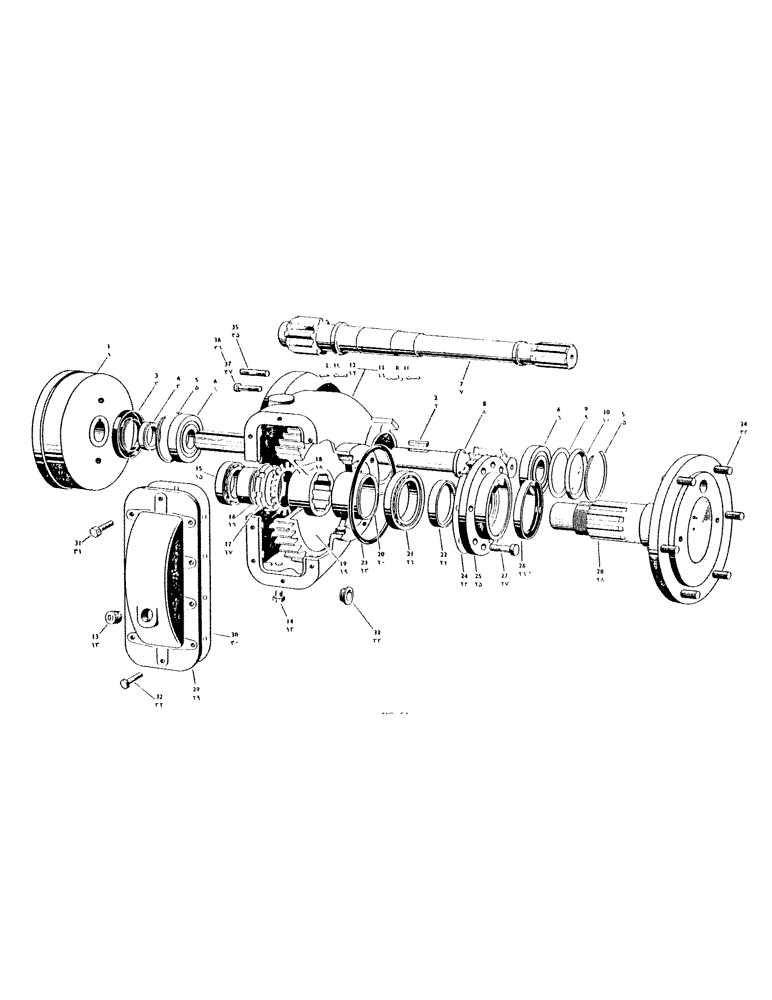

Запчасти Case IH 950 (140) - FINAL DRIVE REDUCTIONS (06) - POWER TRAIN

K904159

Final Drive Reduction--R.H. Complete

1шт.

K902168

Final Drive Reduction--L.H. Complete, Comprising

1шт.

1

K13339

SPARE PART

Brake Drum

2шт.

2

K19615

KEY

2шт.

3

K13349

OIL SEAL

Oil Seal

2шт.

4

K13378

X

Collar

2шт.

5

K13348

NO LONGER SERVICED

Circlip--3 3/4" dia. Internal

4шт.

6

K19145

BEARING

--Ball. Hoff. LS14AC

4шт.

7

K65598

Pinion Shaft--(9T) L.H.

1шт.

8

K903190

Pinion Shaft--(9T) R.H.

1шт.

10

K62534

COVER

End Cover

2шт.

11

K901552

Casing--R.H.

1шт.

12

K901553

Casing--L.H.

1шт.

13

K12362

PLUG

Taper Plug--1" B.S.P.

2шт.

14

K24850

WASHER

Flanged Plug

2шт.

K626769

WASHER

Selon Sealing Washer

2шт.

15

K19186

BEARING, ROLLER

Bearing Taper Roller

2шт.

16

K902516

BRACE

Distance Piece

2шт.

17

K13368

NUT

Locknut

2шт.

18

K13367

WASHER

Tabwasher

2шт.

19

K901555

SPUR

Wheel (50T)

2шт.

20

K901665

Sleeve

2шт.

21

K19185

TAPERED BEARING

Bearing--Taper Roller

2шт.

22

K85344

HALF-BUSHING

Collar

2шт.

23

K623537

O-RING,6.475" ID x 7.025" OD x 0.275"

O Ring

2шт.

25

K85351

Oil Seal Housing

2шт.

26

K15550

OIL SEAL,80.95mm ID x 108.08mm OD x 15.88mm Thk

Oil Seal

2шт.

27

K19262

Bolt--7/16" B.S.F. x 1 1/4" L., Serial Range: Housing-Casing

12шт.

K19483

SPRING WASHER

--Spring, 7/16" dia., Serial Range: Housing-Casing

12шт.

28

K901554

Final Drive Shaft

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

29

K901556

COVER

--Spur Wheel

2шт.

30

K901557

SPARE PART

Gasket, Serial Range: Cover-Casing

2шт.

31

K901674

Breather Bolt--3/8" B.S.F.

2шт.

32

K19242

BOLT

--3/8" B.S.F. x 1 1/8" L.

18шт.

K19482

SPRING WASHER

Washer--Spring, 3/8" dia.

20шт.

33

K627904

SEAL

Red Cap

6шт.

34

K621002

BOLT

Special Bolt--5/8" B.S.F. Wheel Centre Fixing

12шт.

K19406

WHEEL NUT

--Plain, 5/8" B.S.F. Wheel Centre Fixing

12шт.

K19485

WASHER

--Spring, 5/8" dia. Wheel Centre Fixing

12шт.

35

K16365

X

Stud--7/16" B.S.F. x 1 15/16" L. Reductions to Rear Axle Casing

6шт.

36

K19265

Bolt--7/16" B.S.F. x 1 5/8" L. Reductions to Rear Axle Casing

2шт.

37

K19263

Bolt--7/16" B.S.F. x 1 3/6" L. Reductions to Rear Axle Casing

12шт.

K19404

NUT

--Plain, 7/16" B.S.F. Reductions to Rear Axle Casing

6шт.

K19483

SPRING WASHER

--Spring, 7/16" dia. Reductions to Rear Axle Casing

20шт.
