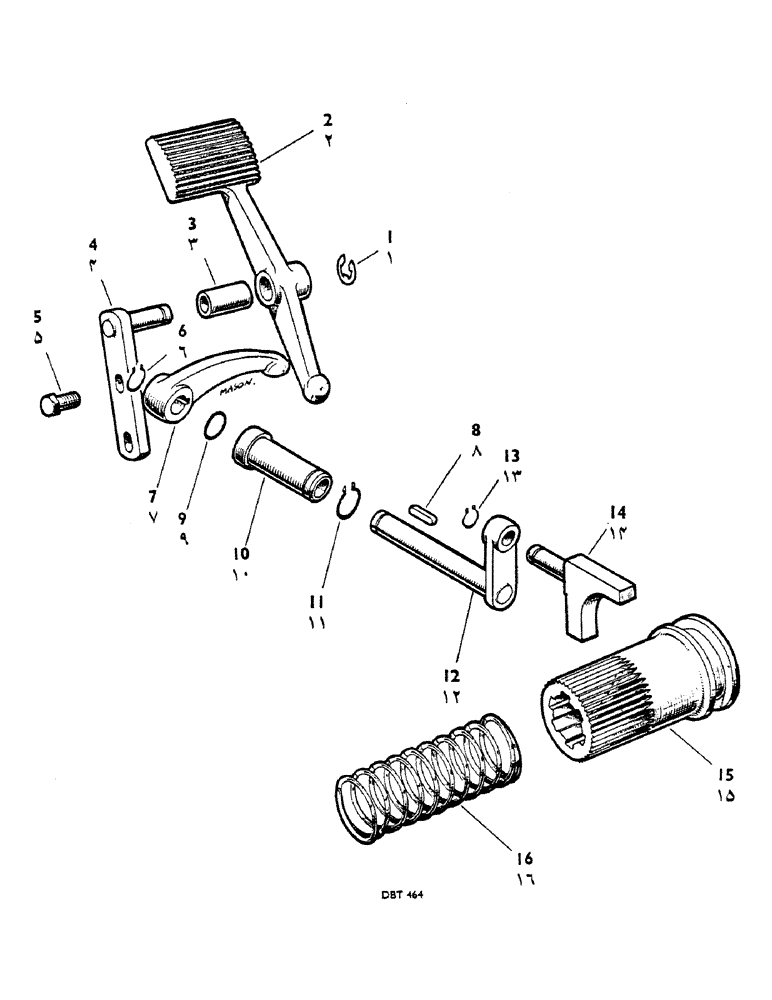

Запчасти Case IH 950 (138) - DIFFERENTIAL LOCK (06) - POWER TRAIN

1

K621589

RING, SNAP

E Clip--1/2" dia.

1шт.

K19474

HARDWARE

Washer--Plain, 1/2" dia.

1шт.

2

K903229

PEDAL

--Diff. Lock

1шт.

3

K621346

BUSHING

Bush

1шт.

4

K903230

Pivot Bracket--Pedal

1шт.

5

K19240

SCREW

Bolt--3/8" B.S.F. x 7/8" L. Pivot Bracket to Rear Frame

2шт.

K19482

SPRING WASHER

Washer--Spring, 3/8" dia. Pivot Bracket to Rear Frame

2шт.

K19472

WASHER

--Plain, 3/8" dia. Pivot Bracket to Rear Frame

2шт.

6

K11797

RING, SNAP

Circlip--5/8" External

1шт.

7

K903228

LEVER

1шт.

8

K622309

KEY

--3/16" x 5/32" x 3/4" L.

1шт.

9

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

O Ring

1шт.

10

K903494

BUSHING

Bush--Cross Shaft

1шт.

11

K34454

RING, SNAP

Circlip--7/8" dia. External

1шт.

12

K903197

SHAFT

Cross Shaft and Arm

1шт.

13

K11302

RING, SNAP

Circlip--1/2" dia. External

1шт.

K19474

HARDWARE

Washer--Plain, 1/2" dia.

1шт.

14

K903226

SELECTOR

Fork

1шт.

15

K903191

SLEEVE

Locking Sleeve

1шт.

16

K625119

SPRING

Return Spring

1шт.
