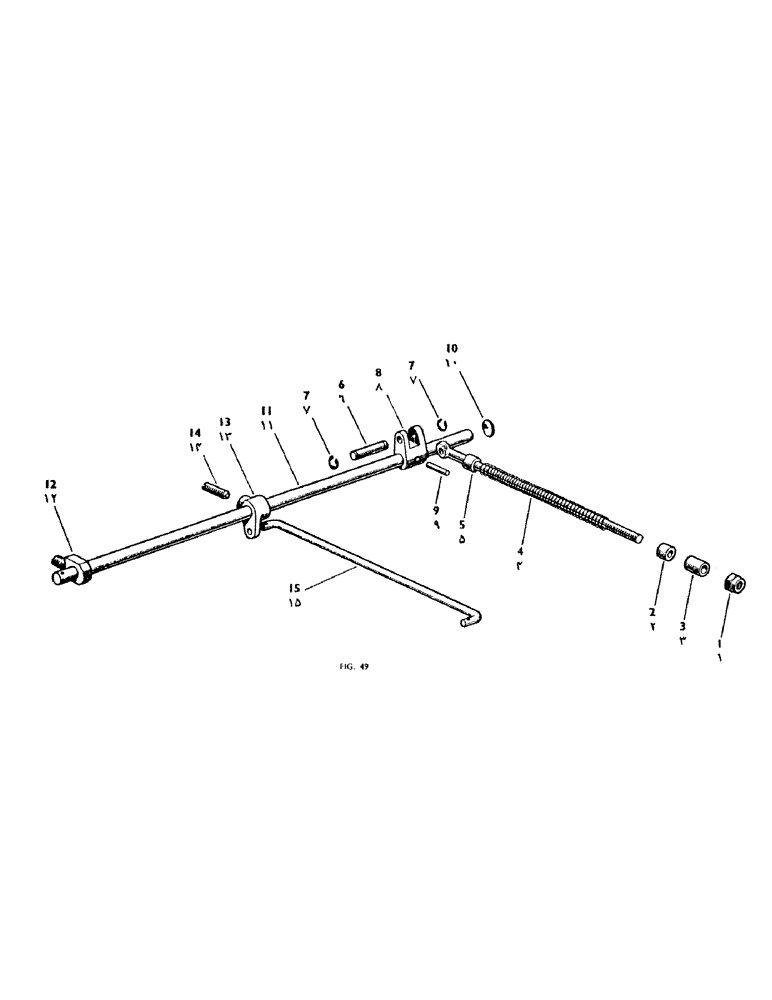

Запчасти Case IH 950 (130) - LIFT CONTROL RODS (06) - POWER TRAIN

1

K14420

NO LONGER SERVICED

Nyloc Nut--5/16" B.S.F.

1шт.

2

K903367

COLLAR

--Plain

1шт.

3

K903368

COLLAR

--Drilled

1шт.

4

K625118

SPRING

1шт.

5

K903365

Connecting Rod

1шт.

6

K903373

NO LONGER SERVICED

Pin

1шт.

7

K621585

RING, SNAP

E Clip

2шт.

8

K904146

LEVER

--Complete with Thrust Button

1шт.

9

K623740

SPLIT PIN/SAFETY PIN

Spring Dowel Pin

1шт.

10

K24711

SHIM

Welch Plug--5/8" dia.

1шт.

11

K902991

Control Shaft

1шт.

12

K30096

Support--Control Shaft

1шт.

K19474

HARDWARE

Washer--Plain, 1/2" dia.

2шт.

K19535

PIN

Split Pin--1/8" dia. x 3/4" L.

2шт.

13

K902990

Operating Lever

1шт.

14

K30111

Locating Screw

1шт.

K19441

NUT

Locknut--5/16" B.S.F.

1шт.

15

K902989

Operating Rod--Valve

1шт.

K19470

WASHER

--Plain, 1/4" dia.

2шт.

K19520

PIN

Split Pin--1/16" dia. x 3/8" L.

2шт.
