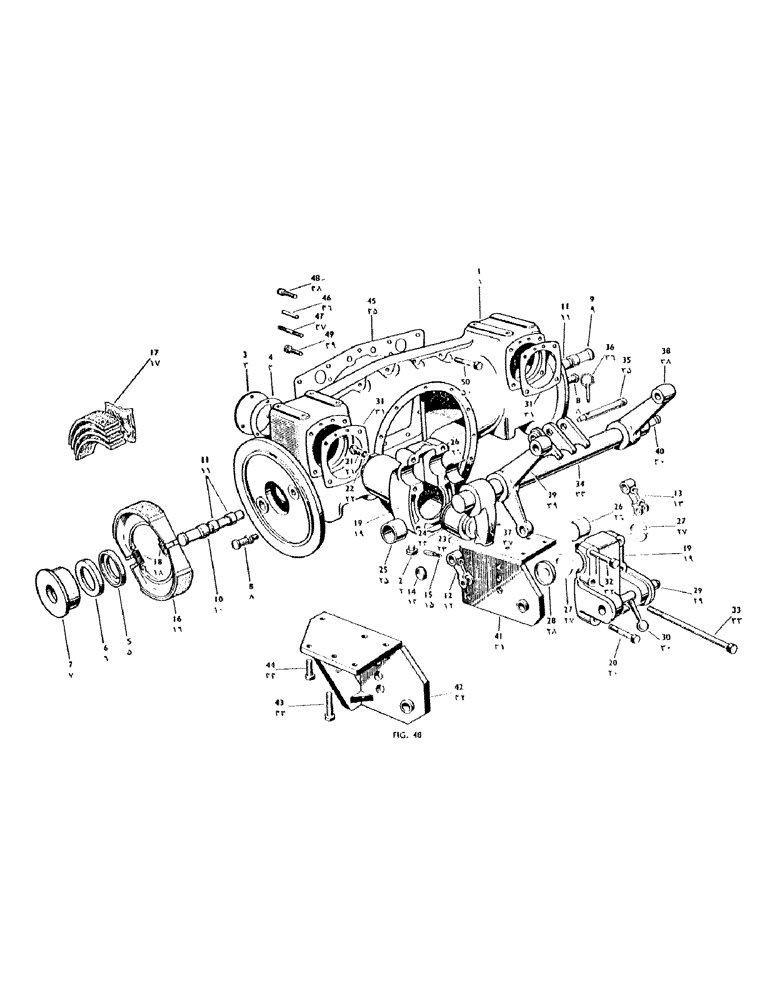

Запчасти Case IH 950 (126) - REAR AXLE CASING, HYDRAULIC CYLINDER, AND RAMSHAFT (06) - POWER TRAIN

1

K903520

Rear Axle Casing

1шт.

2

K24850

WASHER

Drain Plug--1/2" Gas

1шт.

K626769

WASHER

Selon Sealing Washer

1шт.

3

K38335

COVER

Plate--Hydraulic Facings Not required with U.279

1шт.

4

K38560

GASKET

Cover, Serial Range: Plate-Casing

1шт.

K19220

BOLT

--5/16" B.S.F. x 3/4" L. Cover, Serial Range: Plate-Casing

3шт.

K19481

SPRING WASHER

Washer--Spring, 5/16" dia. Cover, Serial Range: Plate-Casing

3шт.

5

K62357

Guide Plate

2шт.

6

K13353

SEAL,44.45mm ID x 80.96mm OD x 12.7mm Thk

Oil Seal

2шт.

7

K62356

HOUSING

--For Oil Seal

2шт.

8

K38623

Fulcrum Pin

2шт.

K19485

WASHER

--Spring, 5/8" dia.

2шт.

9

K30831

BRAKE

Camshaft--Brake O.S.

1шт.

10

K30832

BRAKE

Camshaft--Brake N.S.

1шт.

11

K30835

BUSHING

Bush--Brake Camshaft

4шт.

12

K30833

LEVER

Cam Lever--L.H.

1шт.

13

K86343

LEVER

Cam Lever--R.H.

1шт.

14

K85417

SEAL

Dirt Excluder

2шт.

15

K30834

BUSHING

Cotter Pin

2шт.

K19403

NUT

--Plain, 3/8" B.S.F.

2шт.

K11522

WASHER

--Shakeproof, 3/8" dia.

2шт.

K19472

WASHER

--Plain, 3/8" dia.

2шт.

16

K903806

BRAKE ASSY.

Brake Shoes--Complete with Lining

4шт.

K903511

LINING

--Brake Shoe

4шт.

K624014

RIVET

--Ft. Hd. Tubular--3/16" dia. x 1/2" L.

16шт.

K13048

RIVET

--Ft. Hd. Tubular--3/16" dia. x 7/8" L.

16шт.

17

K960595

PADDING

Lining and Rivet Pack

1шт.

18

K63462

SPRING

--Brake Shoes

4шт.

19

K901919

CYLINDER

Body and Cover

1шт.

K89467

Cover--Pump Body

1шт.

K901920

Cylinder Body--Not Supplied Separately

1шт.

20

K19292

X

Bolt--1/2" B.S.F. x 3 1/4" L.

2шт.

K19405

Nut--Plain, 1/2" B.S.F.

2шт.

K11518

WASHER

--Shakeproof, 1/2" dia.

2шт.

K12250

FITTING

Greaser--1/8" B.S.P.

2шт.

21

K901936

Relief Valve

1шт.

22

K626781

WASHER

Sealing Washer

1шт.

23

K30059

Piston

1шт.

24

K68122

RING, PISTON

Ring--Piston

2шт.

25

K621341

SPARE PART

Pierced Bush

1шт.

26

K30060

SPARE PART

Bearing--Halves--Ramshaft

2шт.

27

K905120

SPARE PART

Oil Retainer--(Felt)

2шт.

28

K30061

COVER

Disc--Ramshaft Sealing

2шт.

29

K30990

Locking Bar

1шт.

30

K30407

SHAFT

Shift Lever--Locking Bar

1шт.

31

K36310

GASKET

1шт.

32

K19299

BOLT (SPREADER)

Bolt--1/2" B.S.F. x 5" L.

2шт.

K11518

WASHER

--Shakeproof, 1/2" dia. Body to Rear Axle Casing

2шт.

33

K15031

Bolt--5/8" B.S.F. x 12 1/2" L. Body to Rear Axle Casing

2шт.

K19406

WHEEL NUT

--Plain, 5/8" B.S.F. Body to Rear Axle Casing

2шт.

K11756

WASHER

--Fibre

2шт.

K11516

WASHER

Lock Washer--5/8" dia.

2шт.

K960928

Ramshaft--Complete with Ram Arm, Lift Lever, Link Pin and Linch Pin

1шт.

34

K960927

LEVER

Ramshaft with Triple Rocking levers, Link Pin and Linch Pin

1шт.

35

K904337

PIN

Link Pin--6 1/4" L.

1шт.

36

K66408

PIN

Linch Pin

1шт.

37

K64770

ARM

Ram Arm

1шт.

K30991

WOODRUFF KEY

Key--Woodruff 'G'

2шт.

38

K902987

Lifting Arm--R.H.

1шт.

39

K902986

Lifting Arm--L.H.

1шт.

K30991

WOODRUFF KEY

Key--Woodruff 'G'

2шт.

40

K903407

PIN

Extension

1шт.

41

K901786

2 Point Hitch Bracket--R.H.

1шт.

42

K901785

2 Point Hitch Bracket--L.H.

1шт.

43

K621090

BOLT

--5/8" B.S.F. x 2 1/4" L. Hitch Brackets to Rear Axle Casing

4шт.

44

K621091

Bolt--5/8" B.S.F. x 1 1/2" L. Hitch Brackets to Rear Axle Casing

4шт.

K904387

X

Tab-Washer Hitch Brackets to Rear Axle Casing

4шт.

45

K30893

GASKET

1шт.

46

K15217

PIN

Dowel

2шт.

47

K15218

Stud--Front, Bottom & P.T.O. Flange Casing to Main Frame Rear

3шт.

48

K19369

Allen Cap Screw Casing to Main Frame Rear

2шт.

49

K19261

Bolt--7/16" B.S.F. x 1 1/8" L. Casing to Main Frame Rear

2шт.

K19404

NUT

--Plain, 7/16" B.S.F. Casing to Main Frame Rear

7шт.

K19483

SPRING WASHER

--Spring, 7/16" dia.

7шт.

K11523

WASHER

Lockwasher--7/16" dia.

2шт.

50

K19273

Bolt--7/16" B.S.F. x 3 1/4" L. Casing to Gearbox Cover

5шт.

K19483

SPRING WASHER

--Spring, 7/16" dia. Casing to Gearbox Cover

5шт.
