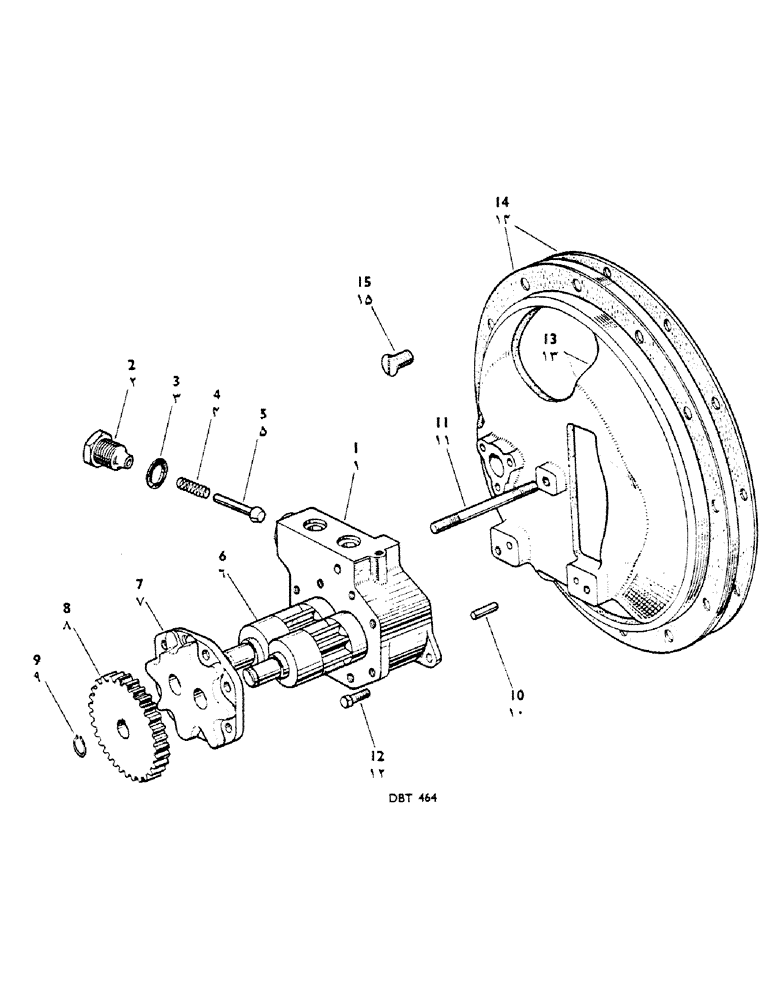

Запчасти Case IH 950 (120) - HYDRAULIC PUMP, GEAR AND SUPPORT PLATE (06) - POWER TRAIN

K904168

PUMP

Hydraulic Pump, Valve Housing and Gear, 63000 onwards

1шт.

1

K903208

PUMP

Body with insert

1шт.

2

K903096

PLUG

and Valve Housing

1шт.

3

K903097

GASKET

Bonded Seal

1шт.

4

K903098

SPRING

1шт.

5

K903099

VALVE POPPET

Poppet

1шт.

6

K903095

SPARE PART

Rotor Pack--Complete

1шт.

K960648

O-RING

O Ring

2шт.

7

K903209

PLATE

End Plate

1шт.

8

K30081A

GEAR

Driven Gear--(37T) (Code 00040)

1шт.

K19604

KEY

--Woodruff No. 5

1шт.

9

K30114

Circlip--9/16" dia. External

1шт.

10

K24853

PIN

Dowel

2шт.

11

K24834

Stud--3/8" B.S.F. x 3 11/16" L. Pump to Back Plate

1шт.

12

K19242

BOLT

--3/8" B.S.F. x 1 1/8" L. Pump to Back Plate

2шт.

K19403

NUT

--Plain, 3/8" B.S.F. Pump to Back Plate

2шт.

K19482

SPRING WASHER

Washer--Spring, 3/8" dia. Pump to Back Plate

3шт.

13

K89174

Support Plate--Hydraulic Pump

1шт.

14

K89175

GASKET

--Plate to R.A.C. and P.T.O. Unit

2шт.

15

K11249

Screw--C'sk. Hd. 7/16" B.S.F. x 1" L.

1шт.
