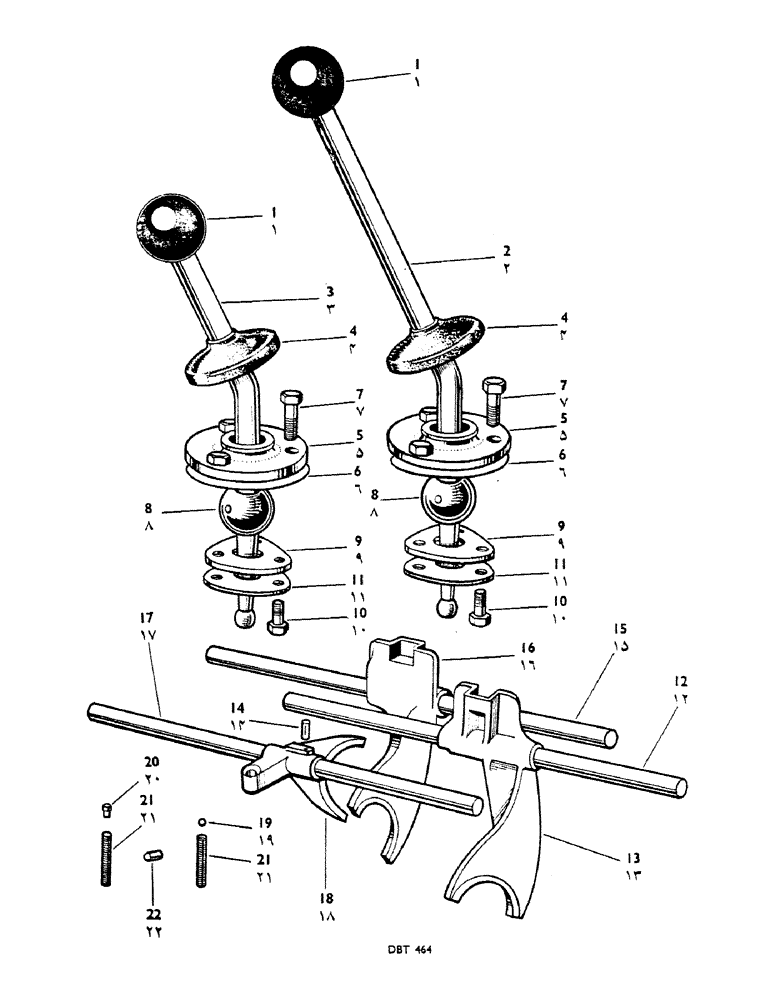

Запчасти Case IH 950 (112) - SIX SPEED GEARBOX, V AND W TYPE, INCORPORATING DIFFERENTIAL LOCK (06) - POWER TRAIN

K904143

Gearbox, 6-Speed (V-Type), Complete, with Differential Lock

1шт.

K904144

Gearbox, 6-Speed (W-Type), Complete, with Differential Lock

1шт.

1

K902270

KNOB

Rubber

2шт.

2

K901686

NO LONGER SERVICED

Selector Lever & Ball, 1-2-3 & R

1шт.

3

K901684

CONTROL LEVER

Selector, High-Low Range

1шт.

4

K903932

NO LONGER SERVICED

Dirt Excluder, Rubber

2шт.

5

K901787

SPARE PART Ball

2шт.

6

K901835

GASKET

2шт.

7

K620502

SCREW

1/4" B.S.F. x 1" L.

6шт.

K19480

SPRING WASHER

Spring, 1/4"

6шт.

8

K623726

PIN

1/4" B.S.F. x 1-1/2" L. Mills, G.P.5

2шт.

9

K30433

SUPPORT

Plate, Ball

2шт.

10

K690456

SCREW

Set, 3/16" Whit. x 3/8" L., Serial Range: Plate-Bracket

6шт.

11

K904386

WASHER

Tab, Serial Range: Plate-Bracket

2шт.

12

K30424

SELECTOR

Rod, First & Reverse Gear

1шт.

13

K30427

SELECTOR

Fork, First & Reverse Gear. rod

1шт.

14

K19562

GROOVED PIN,3/16" x 1 1/4", Type A

Mills, G.P.I. high & low range, selectors and rods 3/16" x 1 1/4", Type A

1шт.

15

K30425

SELECTOR

Rod, Second & Third Gears

1шт.

16

K30428

SELECTOR

Fork, Second & Third Gears, rod

1шт.

14

K19562

GROOVED PIN,3/16" x 1 1/4", Type A

Mills, G.P.I. second & third gears, selectors and rods 3/16" x 1 1/4", Type A

1шт.

17

K30426

SELECTOR

Rod, High & Low Range

1шт.

18

K30429

SELECTOR

Fork, High & Low Range, rod

1шт.

14

K19562

GROOVED PIN,3/16" x 1 1/4", Type A

Mills, G.P.I. high & low range, selectors and rods 3/16" x 1 1/4", Type A

1шт.

19

K13506

BALL

selectors and rods

2шт.

20

K88736

PLUNGER

High & Low Range Only, selectors and rods

1шт.

21

K13507

SPRING

selectors and rods

3шт.

22

K30430

LOCKING DEVICE

Gear, selectors and rods

1шт.
