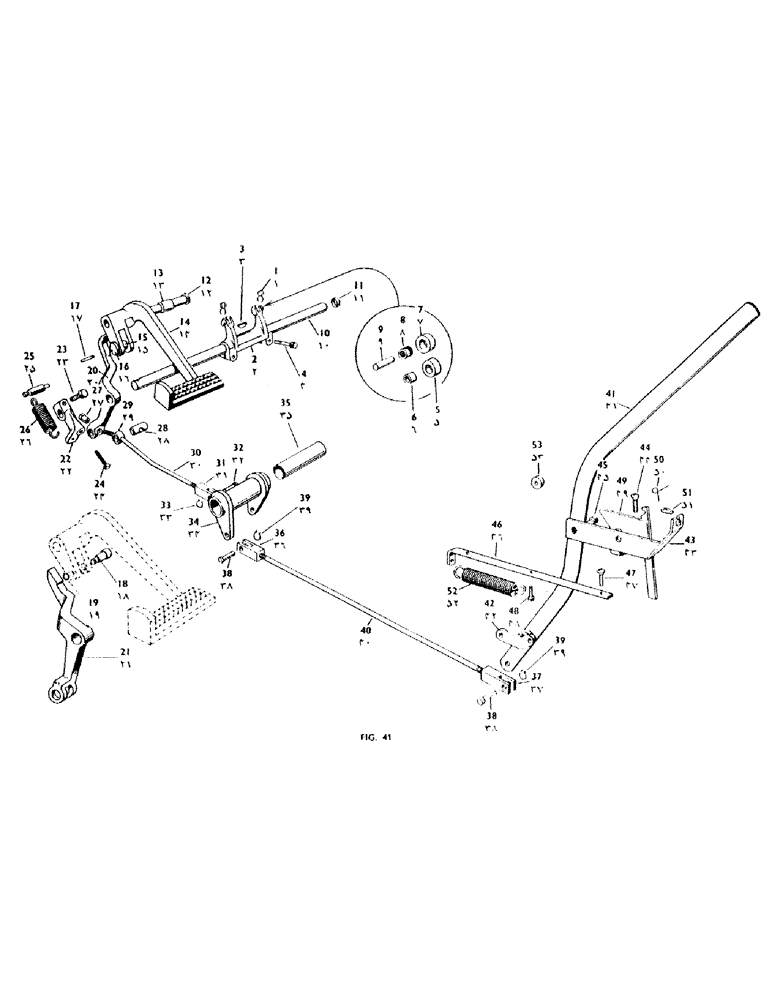

Запчасти Case IH 950 (108) - CLUTCH CONTROLS (06) - POWER TRAIN

1

K89336

SPRING

Carrier--Clutch Fork

2шт.

2

K89327

Clutch

1шт.

3

K19607

KEY

Woodruff No. 8

2шт.

4

K19244

SPARE PART

Bolt--3/8" B.S.F. x 1 3/8" L.

2шт.

K19482

SPRING WASHER

Spring, 3/8" dia.

2шт.

5

K902085

ROLLER

Non-Livedrive

2шт.

6

K902086

BUSHING

Non-Livedrive

2шт.

7

K900348

ROLLER,8.72mm ID x 14.29mm OD x 6.35mm L

Livedrive

2шт.

8

K620260

NEEDLE BEARING,Needle, 4.76mm ID x 8.73mm OD x 6.35mm W

Needle Roller Livedrive

2шт.

9

K900349

PIN

Pivot

2шт.

10

K89361

Cross Shaft--Clutch Fork

1шт.

11

K89362

SEAL

Dirt Excluder--Main Frame R.H.

1шт.

12

K905053

PIN

Fulcrum-Clutch Pedal

1шт.

13

K32940

BUSHING

2шт.

K19476

WASHER

Plain, 3/4" dia.

1шт.

K621561

SPARE PART

Circlip--3/4" dia. External

1шт.

14

K89358

NO LONGER SERVICED

Clutch--Pedal

1шт.

15

K89359

ROLLER

1шт.

16

K89360

PIN

Livedrive

1шт.

17

K24871

GROOVED PIN,1/8" x 1/2", Type D

Pin, Grooved, , L. Mills, Livedrive 1/8" x 1/2", Type D

1шт.

18

K900722

PIN

Non-Livedrive

1шт.

19

K621560

SNAP RING,#40, Ext

Ring, Snap, , Non-Livedrive #40, Ext

1шт.

K19473

WASHER

Plain, 7/16" dia. Livedrive

1шт.

K19528

PIN

Split -3/32" x 1" dia. Livedrive

1шт.

20

K89363

LEVER

Clutch Livedrive

1шт.

21

K900716

LEVER

Clutch Non-Livedrive

1шт.

22

K89364

Clutch Adjuster Lever

1шт.

23

K19358

Bolt--3/8" B.S.F. x 1 7/8" L. Adjuster Lever Fixing

1шт.

K19403

NUT

Plain, 3/8" B.S.F. Adjuster Lever Fixing

1шт.

K19482

SPRING WASHER

Spring, 3/8" dia. Adjuster Lever Fixing

1шт.

24

K89365

1шт.

K19403

NUT

Plain, 3/8" B.S.F.

1шт.

25

K89366

Spring Anchor

1шт.

K19482

SPRING WASHER

Spring, 3/8" B.S.F.

1шт.

26

K624909

SPRING

1шт.

K19403

NUT

Plain, 3/8" B.S.F.

1шт.

27

K14762

SPARE PART

Adjusting Nut

1шт.

28

K14744

PIN

1шт.

29

K14715

BUSHING

Distance Piece

1шт.

30

K901943

N.S. Lever to Swinging Lever

1шт.

K19403

NUT

Plain, 3/8" B.S.F.

1шт.

31

K14226

Fork--End

1шт.

32

K902269

SPARE PART

Pin

1шт.

33

K621587

RING, SNAP

Circlip

1шт.

34

K901944

Swinging

1шт.

35

K900061

None Overload Release only

1шт.

K19403

NUT

Plain, 3/8" B.S.F.

2шт.

36

K14226

Fork End--Swinging Lever

1шт.

37

K14233

Hand Lever

1шт.

38

K902269

SPARE PART

Pin

2шт.

39

K621587

RING, SNAP

Circlip

2шт.

40

K14231

Rod

1шт.

41

K902811

Clutch, clutch operating--hand

1шт.

K19476

WASHER

Plain, 3/4" dia., clutch operating--hand

1шт.

K19532

PIN

Split --1/8" dia. x 1 1/4" L., clutch operating--hand

1шт.

42

K86320

Lever Support (Fixed to Spur Reduction Housing), clutch operating--hand

1шт.

43

K88046

Trigger Support, clutch operating--hand

1шт.

44

K15567

SPARE PART

Screw--C'sk. Hd. 3/8" B.S.F. x 3/4" L., clutch operating--hand

2шт.

45

K19240

SCREW

Bolt--3/8" B.S.F. x 7/8" L. Bracket to Mudguard, clutch operating--hand

2шт.

K19403

NUT

Plain, 3/8" B.S.F. Bracket to Mudguard, clutch operating--hand

2шт.

K19482

SPRING WASHER

Spring, 3/8" dia. Bracket to Mudguard, clutch operating--hand

2шт.

46

K31400

Guide Bar--Hand Lever, clutch operating--hand

1шт.

47

K11170

Bolt--C'sk. Hd. 5/16" B.S.F. x 1" L. Bar to Mudguard and R.A. Casing, clutch operating--hand

1шт.

48

K19379

5/16" B.S.F. x 7/8" L. Bar to Mudguard and R.A. Casing, clutch operating--hand

2шт.

K19402

NUT

Plain, 5/16" B.S.F. Bar to Mudguard and R.A. Casing, clutch operating--hand

3шт.

K19481

SPRING WASHER

Spring, 5/16" dia. Bar to Mudguard and R.A. Casing, clutch operating--hand

3шт.

49

K88047

clutch operating--hand

1шт.

K19472

WASHER

Plain, 3/8" dia. Trigger Fixing, clutch operating--hand

1шт.

K19529

PIN

Split dia.x7/8" L. Trigger Fixing, clutch operating--hand

1шт.

50

K31411

SPRING

Torsion --For Trigger, clutch operating--hand

1шт.

51

K31620

Anchor Plate--For Torsion Spring, clutch operating--hand

1шт.

52

K41370

SPRING

Release, clutch operating--hand

1шт.

53

K64976

Stop--Clutch Lever, clutch operating--hand

1шт.
