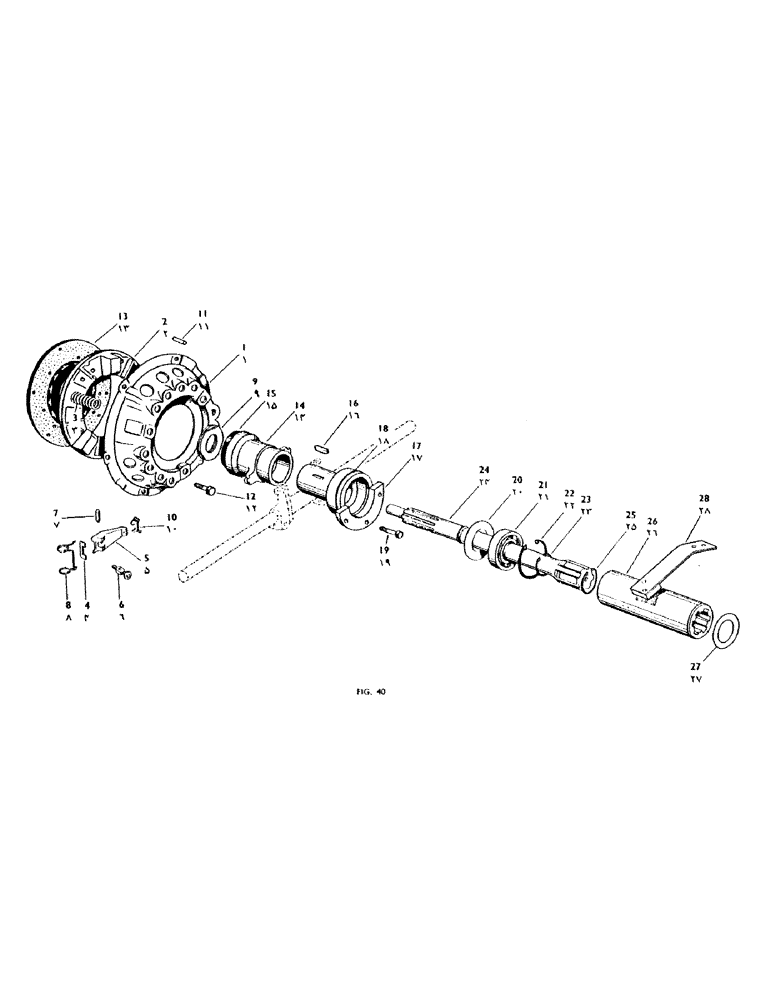

Запчасти Case IH 950 (106) - SINGLE CLUTCH AND DRIVE (06) - POWER TRAIN

K14015

COVER

Clutch Cover Assembly, Comprising Refs. 1 - 10

1шт.

1

K14001

Clutch Cover

1шт.

2

K14002

PRESSURE LIMITER

Pressure Plate

1шт.

3

K900239

Thrust Spring--(Light Green) (B/B40150)

12шт.

4

K14003

STOP

Strut--Release Lever

3шт.

5

K68729

LEVER

Release Lever

3шт.

6

K31219

BOLT

Eyebolt and Nut

3шт.

7

K14005

AXLE PIN

Pin

3шт.

8

K14013

Anti-Rattle Spring

3шт.

9

K14080

Thrust Plate

1шт.

10

K14079

SPRING

Retaining Spring

3шт.

11

K35840

PIN

Dowel

2шт.

12

K19242

BOLT

--3/8" B.S.F. x 1 1/8" L.

6шт.

K19482

SPRING WASHER

Washer--Spring, 3/8" dia.

6шт.

13

K14014

NO LONGER SERVICED

Driven Plate and Hub--c/w Facings

1шт.

K14011

NO LONGER SERVICED

Linings (2) and Rivets (26) /12

1 setшт.

K14012

RIVET

s--only (packs of 26)

1шт.

14

K900583

BEARING

Thrust Bearing Carrier--c/w Carbon Block

1шт.

15

K14083

RING

Carbon Block

1шт.

16

K24866

KEY

Parallel Key--3/16" x 5/32" x 1 1/4" L.

1шт.

17

K900574

SUPPORT

Snout

1шт.

18

K24865

O-RING

Rubber "O" Ring

1шт.

19

K19222

BOLT

--5/16" B.S.F. x 1" L., Serial Range: Snout-Frame

3шт.

K19481

SPRING WASHER

Washer--Spring, 5/16" dia., Serial Range: Snout-Frame

3шт.

20

K34610

SHIM

Shield

1шт.

21

K19021

BALL

Bearing--Ball

1шт.

22

K13053

RING, SNAP

Circlip--72 mm. Internal

1шт.

23

K14337

CIRCLIP

--1 3/8" External

1шт.

24

K901755

CLUTCH

Drive Shaft

1шт.

25

K12922

RING, SNAP

Circlip--1 3/4" External

1шт.

26

K903395

COUPLING, BREAK AWAY

Muff Coupling

1шт.

28

K903870

SPRING

Assembly--Clutch Stop

1шт.

K903872

STOP

Pad

1шт.

K16729

Rivet--5/32" dia. x 1/4" L.

2шт.

K16569

SCREW

--2 B.A. x 5/8" L.

2шт.

K623002

LOCK NUT

Nyloc Nut--2 B.A.

2шт.
