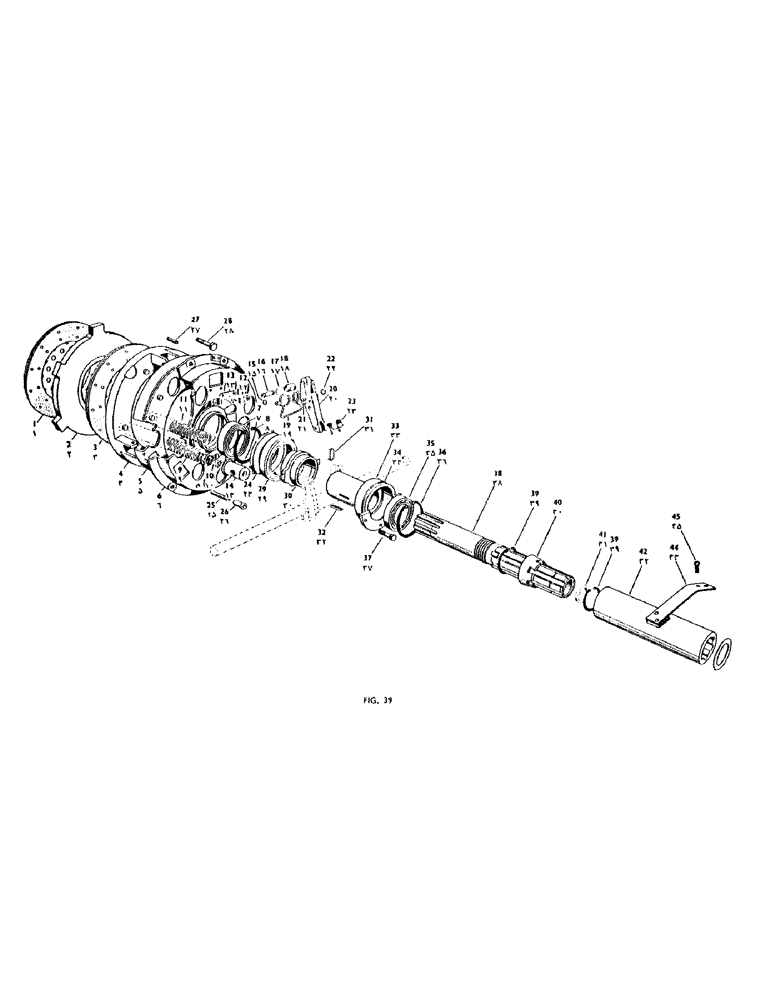

Запчасти Case IH 950 (102) - DOUBLE CLUTCH AND DRIVE (06) - POWER TRAIN

1

K89322

CLUTCH & DISC ASSY

Driven Plate--P.T.O. Clutch Complete with Linings

1шт.

2

K89323

LARGE PLATE

Separator Plate

1шт.

3

K89321

SPARE PART

Driven Plate--Power Clutch Complete with Linings

1шт.

K904140

FACING

Lining Pack--Bimet--Complete with Rivets

1шт.

K904150

Lining Only--Bimet

2шт.

K904166

RIVET

s

26шт.

K89324

SPARE PART

Cover Assembly--10" Double Clutch, Comprising Ref. 4 - 25

1шт.

4

K900253

PLATE

Pressure Plate

1шт.

5

K900252

SPARE PART

Inner Cover Bushes and Bosses Assembly

1шт.

6

K900254

NO LONGER SERVICED

Outer Cover

1шт.

7

K89325

BALL BEARING,45mm ID x 75mm OD x 16mm W

Bearing--Ball--Outer Cover

1шт.

8

K89326

RING, SNAP

Circlip--Ball Bearing

1шт.

9

K902512

SPRING

Thrust Spring (Outer)--Main Drive (Brown) (50167)

6шт.

10

K902513

SPRING

Thrust Spring (Inner)--Main Drive (Brown) (50168)

6шт.

11

K900261

SPRING

Thrust Spring (Outer)--P.T.O. (Buff)

6шт.

12

K900257

PAD

Adjusting Pad--Release Lever

3шт.

K900272

SCREW

Setscrew--Adjusting Pad

6шт.

14

K900256

SPRING

Cup

12шт.

15

K900274

RING, SNAP

Circlip--Roller Pin

6шт.

16

K900265

PIN

Roller Pin

3шт.

17

K900273

NEEDLE

Roller--Release Lever

60шт.

18

K900264

ROLLER

--Release Lever

3шт.

19

K900263

SPARE PART

Anti-Rattle Spring

3шт.

20

K900275

LEVER

Release Lever and Balance Weight Assembly

3шт.

21

K900266

PIN

--Pressure Plate

3шт.

22

K900271

SPARE PART

Circlip--Pressure Plate Pin

6шт.

23

K900267

RETAINER

Spring--Release Lever Plate

3шт.

24

K900268

PLATE

--Release Lever

1шт.

25

K900269

SCREW

Adjusting Screw

3шт.

26

K900270

LOCK NUT

Locknut--Adjusting Screw

3шт.

K900249

NO LONGER SERVICED

Facing Package and Rivets (2 Facings and 26 rivets), P.T.O. Plate

1шт.

K904140

FACING

Package and Rivets (2 Facings and 26 rivets), Power Driven Plate

1шт.

27

K35840

PIN

Dowel

2шт.

28

K19242

BOLT

--3/8" B.S.F. x 1 1/8" L., Serial Range: Clutch-Flywheel

9шт.

K19482

SPRING WASHER

Washer--Spring, 3/8" dia., Serial Range: Clutch-Flywheel

9шт.

29

K19169

BEARING, THRUST

Thrust Bearing

1шт.

30

K89335

THRUST BEARING

Carrier--Thrust Bearing

1шт.

31

K900359

SPRING

Clip

2шт.

32

K24866

KEY

-Rd. Ended

1шт.

33

K89334

SUPPORT

Snout--Bearing Carrier

1шт.

34

K24865

O-RING

O Ring Seal (Black Rubber)

1шт.

35

K19172

BALL BEARING

Bearing--Ball, R. & M., XXL J.45

1шт.

36

K621430

CIRCLIP

--Seegar, 75 mm. Bore

1шт.

37

K19222

BOLT

--5/16" B.S.F. x 1" L. Support Snout to Rear Frame

3шт.

K19481

SPRING WASHER

Washer Spring--5/16" dia. Support Snout to Rear Frame

3шт.

38

K901754

NO LONGER SERVICED

Clutch Drive Shaft

1шт.

39

K12922

RING, SNAP

Circlip--External, 1 3/4" dia.

2шт.

40

K89429

GASKET

Oil Flinger

1шт.

41

K89333

WASHER

Felt Washer

1шт.

42

K903395

COUPLING, BREAK AWAY

Muff Coupling

1шт.

44

K903870

SPRING

Assembly--Clutch Stop

1шт.

K903872

STOP

Pad

1шт.

K16729

Rivet--5/32" dia. x 1/4" L.

2шт.

45

K16569

SCREW

--2 B.A. x 5/8" L.

2шт.

K623002

LOCK NUT

Nyloc Nut--2 B.A.

2шт.
