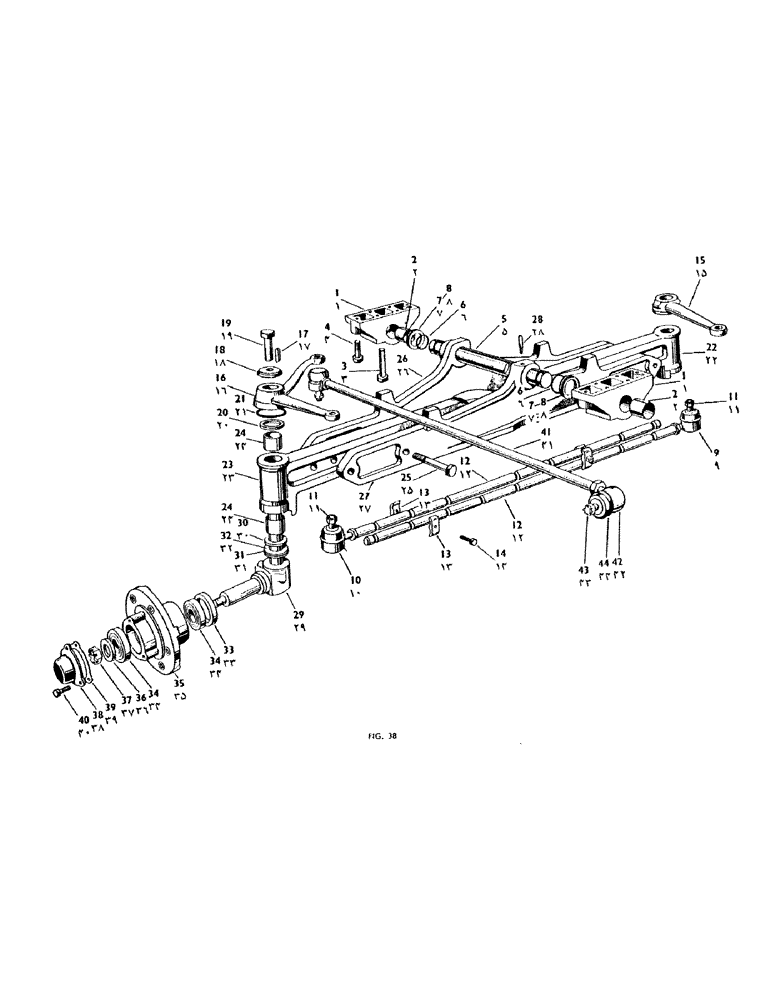

Запчасти Case IH 950 (098) - FRONT AXLE (06) - POWER TRAIN

1

K902843

Bearing Bracket--Trunnion Pin

2шт.

2

K15597

BUSHING

1 1/2" dia. bore

4шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

3

K19294

Bolt--1/2" B.S.F. x 3 3/4" L. Bearing Brackets to Front Extension

8шт.

4

K19290

X

Bolt--1/2" B.S.F. x 2 3/4" L. Bearing Brackets to Front Extension

4шт.

K19484

LOCK WASHER

Washer--Spring, 1/2" dia. Bearing Brackets to Front Extension

12шт.

5

K904629

X

Trunnion Pin

1шт.

6

K15596

RING,3.63mm Thk x 31.34mm ID

Sealing

2шт.

8

K15619

SEAL

Dirt Excluder

3шт.

9

K66840

SPARE PART

Ball Socket Assembly Alternative 906176

1шт.

10

K66841

SPARE PART

Ball Socket Assembly Alternative 906176

1шт.

11

K19454

Slotted, 1/2" B.S.F.

4шт.

K19530

PIN

Split -3/32" x 1" L.

4шт.

K12250

FITTING

Greaser--1/8" B.S.P.--Straight

2шт.

K617104

NUT

Slotted--1/2" U.N.F. Part of 906176

2шт.

12

K901083

2шт.

13

K86657

CLAMP

4шт.

14

K19269

7/16" B.S.F. x 2 1/4" L. Clamp Fixing

2шт.

K19404

NUT

Plain, 7/16" B.S.F. Clamp Fixing

2шт.

K19483

SPRING WASHER

Spring, 7/16" dia. Clamp Fixing

2шт.

15

K901533

Steering--R.H.

1шт.

16

K901141

STEERING ASSY

Lever--L.H.

1шт.

16

K902315

SPARE PART

Steering Lever--L.H. (Power Assisted Steering)

1шт.

17

K15592

SPARE PART

Parallel Key

2шт.

18

K15595

WASHER

Special Steering lever to Stub axle

2шт.

19

K19308

BOLT

5/8" B.S.F. x 2 3/4" L. Steering lever to Stub axle

2шт.

K19485

WASHER

Spring, 5/8" dia. Steering lever to Stub axle

2шт.

20

K33682

WASHER,35.24mm ID x 55.56mm OD x 4.78mm Thk

Thrust Stub Axle Top

2шт.

21

K15593

GASKET

Sealing Ring--Stub Axle Top

2шт.

22

K80233

Beam Extension--R.H.--Complete with Bushes and Greaser

1шт.

23

K80232

Extension--L.H.--Complete with Bushes and Greaser

1шт.

24

K11598

BUSHING

4шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

25

K11322

3/4" B.S.F. x 4 3/4" L. Beam extension to beam centres

4шт.

K19407

Plain 3/4" B.S.F. Beam extension to beam centres

4шт.

K19486

WASHER, LOCK

Spring, 3/4" dia. Beam extension to beam centres

4шт.

26

K903477

SPARE PART

Centre Beam--Front

1шт.

27

K903476

SPARE PART

Centre Beam--Rear

1шт.

28

K45871

Rear centre beam locating

1шт.

K19403

NUT

Plain, 3/8" B.S.F. Rear centre beam locating

1шт.

K19482

SPRING WASHER

Spring, 3/8" dia. Rear centre beam locating

1шт.

29

K86617

SHAFT

front hub and stub axle

2шт.

30

K33682

WASHER,35.24mm ID x 55.56mm OD x 4.78mm Thk

Thrust, front hub and stub axle

2шт.

31

K15594

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

Sealing Base, front hub and stub axle

2шт.

33

K15638

NO LONGER SERVICED

Oil Seal--Perfect 30024 (Alt. Burtonwood Nos. 212-300-167), front hub and stub axle

2шт.

34

K32676

BEARING

Roller--Thrust, Timken 19138/19283X, front hub and stub axle

4шт.

35

K86922

HUB

front hub and stub axle

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF, Front hub and stub axle 1/4"-28 NPT x .54" lg

2шт.

36

K19493

WASHER

Special, front hub and stub axle

2шт.

37

K19456

NUT

Slotted, 3/4" B.S.F., front hub and stub axle

2шт.

K19541

PIN

Split 5/32" dia. x 1 1/2" L., front hub and stub axle

2шт.

38

K15610

SPARE PART

Hub Cap, front hub and stub axle

2шт.

39

K15344

GASKET,0.25mm Thk

front hub and stub axle

2шт.

40

K19346

5/16" B.S.F. x 5/8" L., front hub and stub axle

6шт.

K19481

SPRING WASHER

Spring, 5/16" dia., front hub and stub axle

6шт.

41

K901139

Side Steering -Complete, front hub and stub axle

1шт.

41

K903411

Side Steering Rod--Complete (Sweden only), front hub and stub axle

1шт.

41

K902312

Side Steering Rod--Complete (Power Assisted Steering), front hub and stub axle

1шт.

42

K66840

SPARE PART

Ball Socket Assembly, front hub and stub axle

2шт.

43

K19454

Slotted 1/2" B.S.F., front hub and stub axle

2шт.

K19530

PIN

Split 3/32" dia.x1" L., front hub and stub axle

2шт.

K900188

Spring Ring, front hub and stub axle

2шт.

44

K900187

Rubber, front hub and stub axle

2шт.

K900189

Retaining Ring Ball-Pin Assemblies, front hub and stub axle

2шт.

K622500

LOCK NUT

Locknut Ball-Pin Assemblies, front hub and stub axle

2шт.

K19528

PIN

Split --3/32" x1" L., front hub and stub axle

2шт.

K12250

FITTING

Greaser--1/8" B.S.P., front hub and stub axle

2шт.
