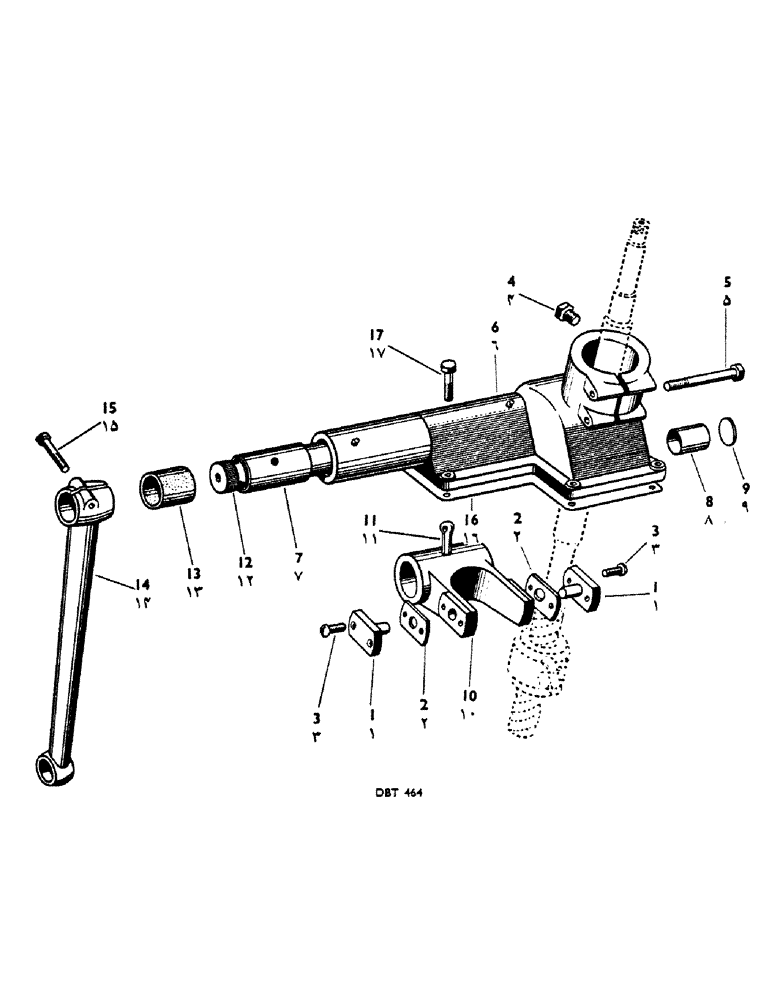

Запчасти Case IH 950 (092) - STEERING BOX, SHAFT AND DROP ARM (05) - STEERING

1

K900944

BALL

Peg

2шт.

2

K900945

GASKET

Shim, .003" Thick

1шт.

2

K900946

SHIM,.005" Thk

1шт.

2

K900947

GASKET

Shim, .007" Thick

1шт.

2

K900948

SHIM,.010" Thk

1шт.

3

K19377

SPARE PART

Screw--C'sk. Hd., 1/4" B.S.F. x 5/8" L.

4шт.

4

K620700

Bolt--Column Locating

1шт.

K19403

NUT

--Plain, 3/8" B.S.F.

1шт.

5

K19254

Bolt--3/8" B.S.F. x 3 1/4" L.

2шт.

K19403

NUT

--Plain, 3/8" B.S.F.

2шт.

K19482

SPRING WASHER

Washer--Spring, 3/8" dia.

2шт.

6

K89394

Steering Box

1шт.

7

K16561

BUSHING

Bush--Long Steering Box

2шт.

8

K16560

SPARE PART

Bush--Short Steering Box

1шт.

9

K10050

PLUG

Welch Plug

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

3шт.

10

K900943

Rocker Arm

1шт.

11

K26232

PIN

Split Pin--3/16" dia. x 2 1/4" L.

1шт.

12

K902673

ARM

Shaft--Drop Arm

1шт.

13

K86963

LARGE HOSE

Dust Shield--Drop Arm Shaft

1шт.

14

K901140

ARM

Drop Arm

1шт.

15

K19251

Bolt--3/8" B.S.F. x 2 1/2" L. Drop, Serial Range: Arm-Shaft

1шт.

K19403

NUT

--Plain, 3/8" B.S.F. Drop, Serial Range: Arm-Shaft

1шт.

K19482

SPRING WASHER

Washer--Spring, 3/8" dia. Drop, Serial Range: Arm-Shaft

1шт.

16

K89395

GASKET

Steering Box to Gearbox Cover

1шт.

K19244

SPARE PART

Bolt--3/8" B.S.F. x 1 3/8" L. Steering Box to Gearbox Cover

4шт.

17

K19241

BOLT

--3/8" B.S.F. x 1" L. Steering Box to Gearbox Cover

2шт.

K19482

SPRING WASHER

Washer--Spring, 3/8" dia. Steering Box to Gearbox Cover

6шт.
