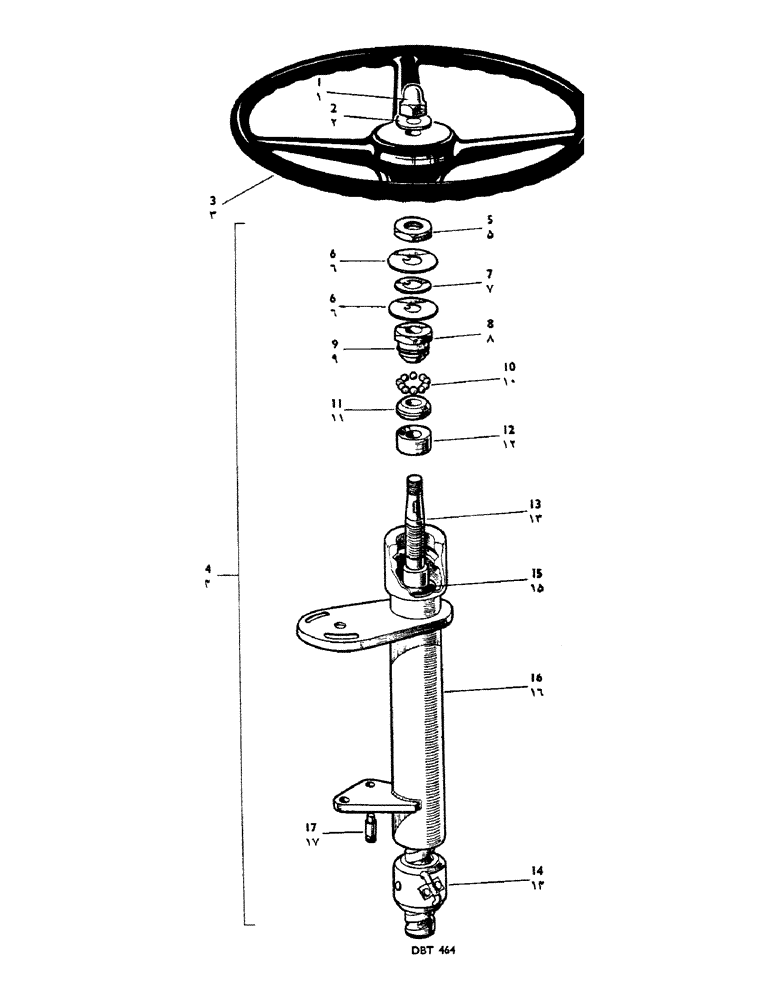

Запчасти Case IH 950 (090) - STEERING COLUMN (05) - STEERING

K904142

X

Steering Column Box and Drop Arm--Complete

1шт.

1

K623360

NUT

Domed Nut

1шт.

2

K626671

WASHER

Special Washer--5/8" dia.

1шт.

3

K83746

WHEEL

Steering Wheel

1шт.

K19608

KEY

--Woodruff No. 9

1шт.

4

K902965

X

Steering Column Assembly, Comprising 5 - 17

1шт.

5

K903467

NUT

Locknut

1шт.

6

K905189

WASHER

Tab Washer Spot welded together replaces 903465/6

2шт.

7

K905189

WASHER

Distance Washer Spot welded together, replaces 903465/6

1шт.

8

K903463

BEARING CONE

Upper Bearing

1шт.

9

K903468

O-RING,0.156" Thk x 1.234" ID, 75 Duro

O Ring

1шт.

10

K13506

BALL

--3/8" dia.

12шт.

11

K903462

SPHERICAL BEARING

Lower Bearing

1шт.

12

K903461

SPACER

Spherical Seating

1шт.

13

K903459

SPARE PART

Steering Screw and Nut

1шт.

14

K900923

SPARE PART

Steering Nut only

1шт.

15

K903469

PAD, RUBBER

Rubber Baffle

1шт.

16

K903457

X

Column Support

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

17

K89821

Spring Anchor Gas./Ker. only

1шт.
