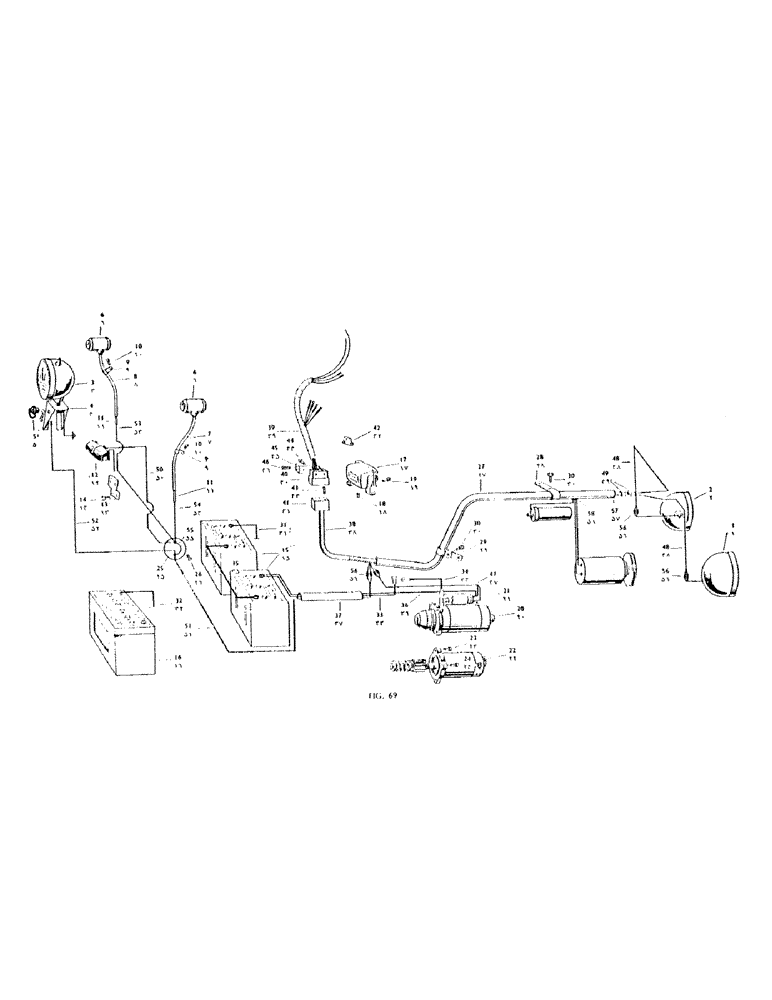

Запчасти Case IH 950 (176) - ELECTRICAL EQUIPMENT, TWELVE VOLT (04) - ELECTRICAL SYSTEMS

1

K901838

SPARE PART

Dipping Head Lamp--R.H.--Butler

1шт.

2

K901837

LAMP

Dipping Head Lamp--L.H.--Butler (complete with Terminal Ferrules)

1шт.

K900740

Distance Washer

2шт.

3

K902551

LAMP

Rear Flood Lamp (Built in Plunger Switch)--Butler

1шт.

4

K87603

Bracket--For Rear Flood Lamp

1шт.

5

K904078

NO LONGER SERVICED

Rubber Socket Assembly

1шт.

K960896

Plug--Two Pin--For 904078

1шт.

6

K901970

STOP LIGHT

Side and Rear Lamp--Combined--Butler

2шт.

7

K87772

Cable Tube--R.H. Side Lamp

1шт.

8

K87773

Cable Tube--L.H. Side Lamp

1шт.

9

K19917

Clip--Cable Tubes Cable, Serial Range: Tubes-Mudguards

4шт.

10

K11189

SCREW

Bolt--3/16" Whit. x 1/2" L. Cable, Serial Range: Tubes-Mudguards

4шт.

K19415

NUT

--Plain, 3/16" Whit. Cable, Serial Range: Tubes-Mudguards

4шт.

K19488

SPRING WASHER

--Spring, 3/16" dia. Cable, Serial Range: Tubes-Mudguards

4шт.

11

K904048

Cable Cover Shell

2шт.

12

K82303

SPARE PART

Lamp--Lucas, 467/2 (No. 052448)--Rear Number Plate

1шт.

K12355

NUT

--Domed--2 B.A.

2шт.

13

K902460

SUPPORT

Bracket

1шт.

14

K624713

Screw--Mush. Hd. 1/4" B.S.F.

2шт.

K19401

NUT

--Plain, 1/4" B.S.F.

2шт.

K19480

SPRING WASHER

--Spring, 1/4" dia.

2шт.

15

K62312

Battery--6 v. Lucas MT.17.E. or (Exide 3KHV.17.L), Diesel

2шт.

16

K86378

Battery--12 v. Lucas FRT.9A or (Exide 6 XNF.9R.), Gasoline/Kerosene

1шт.

17

K900136

REGULATOR

--12 Volt Lucas RB.108

1шт.

18

K19921

Terminal Ferrule--Regulator Leads

4шт.

19

K19376

Bolt--1/4" B.S.F. x 3/4" L., Serial Range: Regulator-Bracket

2шт.

K19401

NUT

--Plain, 1/4" B.S.F., Serial Range: Regulator-Bracket

2шт.

K19480

SPRING WASHER

--Spring, 1/4" dia., Serial Range: Regulator-Bracket

2шт.

20

K89772

STARTER MOTOR

Starter--12 Volt Lucas M.45.G (No. 26133 D), Diesel

1шт.

21

K87560

CONTACT HOUSING

Terminal Cover (Rubber) Diesel

1шт.

22

K37420

Starter--12 Volt Lucas (No. 26043A) Gasoline and Kerosene

1шт.

23

K19246

BOLT

--3/8" B.S.F. x 1 5/8", Serial Range: Starter-Flange

2шт.

24

K19244

SPARE PART

Bolt--3/8" B.S.F. x 1 3/8" L., Serial Range: Starter-Flange

1шт.

K19403

NUT

--Plain, 3/8" B.S.F., Serial Range: Starter-Flange

1шт.

K19482

SPRING WASHER

Washer--Spring, 3/8" dia., Serial Range: Starter-Flange

3шт.

25

K20010

Junction Box

1шт.

26

K624790

SCREW

--No. 10 x 7/8" L. Junction, Serial Range: Box-Mudguard

2шт.

K623340

Speed Nut Junction, Serial Range: Box-Mudguard

2шт.

27

K903837

Main Conduit

1шт.

28

K89523

BRACKET

--Conduit to Cylinder Head

1шт.

29

K89524

Bracket--Conduit to Rocker Box

1шт.

30

K19200

BOLT

--1/4" B.S.F. x 5/8" L. Conduit, Serial Range: Clamping-Brackets

2шт.

K19401

NUT

--Plain, 1/4" B.S.F. Conduit, Serial Range: Clamping-Brackets

1шт.

K19480

SPRING WASHER

--Spring, 1/4" dia. Conduit, Serial Range: Clamping-Brackets

2шт.

31

K900588

CABLE

--Battery to Earth (Braided)

1шт.

32

K86394

Cable--Battery to Earth (Gasoline/Kerosene)

1шт.

33

K900594

Cable--Battery to Starter Switch (Gasoline/Kerosene)

1шт.

34

K19951

Cable--Starter Switch to Starter (Gasoline/Kerosene)

1шт.

35

K900563

CABLE

--Battery to Battery (Diesel)

1шт.

36

K900593

Cable--Battery to Starter (Diesel)

1шт.

37

K901681

Guard--Battery Cable

1шт.

38

K903815

HARNESS

Main Harness Assembly

1шт.

39

K903849

Harness Assembly--Instrument Panel

1шт.

40

K904492

8 Pin Male Connector

1шт.

41

K904493

8 Way Socket

1шт.

42

K904458

Spare Fuse Clip

1шт.

43

K904459

FUSE

Spare Fuse

1шт.

44

K14404

Screw--Ch. Hd. 2 B.A. x 1 1/4" L., Serial Range: Socket-Bracket

2шт.

K11109

NUT

--Plain, 2 B.A., Serial Range: Socket-Bracket

2шт.

K19488

SPRING WASHER

--Spring, 3/16" dia., Serial Range: Socket-Bracket

2шт.

45

K904243

Bracket--8 way socket

1шт.

46

K624714

SCREW

--Mush. Hd. 2 B.A. x 3/8" L

2шт.

K11109

NUT

--Plain, 2 B.A., Serial Range: Bracket-Panel

2шт.

K19488

SPRING WASHER

--Spring, 3/16" dia., Serial Range: Bracket-Panel

2шт.

K903840

Lead--Harness to Starter Switch (Gasoline/Kerosene)

1шт.

47

K903839

Lead--Harness to Starter Motor (Diesel)

1шт.

K903850

Lead--Isolating Switch to Starter Button (Diesel)

1шт.

K904640

, Serial Range: Lead--Regulator-Earth

1шт.

48

K903821

SPARE PART

Lead--L.H. and R.H. Headlamps

1шт.

49

K904486

2 Way Connecting Block

1шт.

50

K903844

Lead--Junction Box to Number Plate Lamp

1шт.

51

K903841

Lead--Junction, Serial Range: Box-Harness

1шт.

52

K903845

Lead--Junction Box to Trailer Connector

1шт.

53

K903843

Lead--Junction Box to Side Lamp L.H.

1шт.

54

K903842

Lead--Junction Box to Side Lamp R.H.

1шт.

55

K86893

Short Lead--Junction Box

1шт.

56

K67916

ELEC CONNECTOR

Single Connector

1шт.

57

K82317

GROMMET

(Rubber)--Main Conduit--Front End

1шт.

58

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

(Rubber)--Side Port Main Conduit and Stay

2шт.

K86414

Grommet (Rubber)--Seat Support Bracket (Diesel)

2шт.

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

(Rubber)--Number Plate Lamp Lead

1шт.

K903822

WASHER

Cable Clip--Special--Headlamp leads

13шт.

K19917

Cable Clip--Harness to Panel and Radiator

7шт.

K19934

CABLE CLIP

Cable, Serial Range: Clip--Lead-Tank

1шт.

K19925

Cable Clip

1шт.

K24824

NO LONGER SERVICED

Cable Clip

1шт.

K621600

CLIP

Nylastic Clip--Battery Connecting Cable and Main Harness

2шт.

K15438

Cable Clip--Battery Cable

1шт.

K903847

Wiring Diagram--Diesel

1шт.

K903848

Wiring Diagram--Gasoline Kerosene

1шт.
