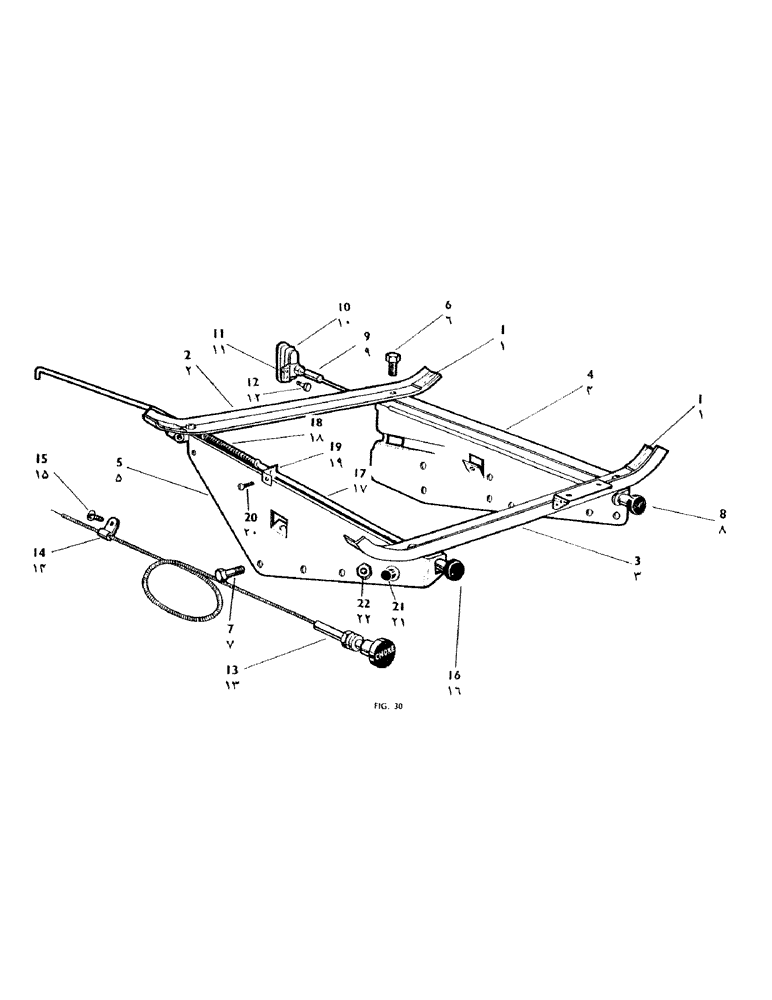

Запчасти Case IH 950 (078) - FUEL TANK SUPPORT AND ENGINE CONTROLS (03) - FUEL SYSTEM

1

K89449

PAD

Seating Pad--Tank

4шт.

2

K89448

Front Support--Fuel Tank

1шт.

3

K903509

Rear Support and Regulator Bracket

1шт.

4

K89452

SPARE PART

Support Bracket--R.H.

1шт.

5

K89450

Support Bracket--L.H.

1шт.

6

K11544

Bolt--1/4" B.S.F. x 1/2" L., Serial Range: Support-Bracket

4шт.

K19401

NUT

--Plain, 1/4" B.S.F., Serial Range: Support-Bracket

4шт.

K19480

SPRING WASHER

--Spring, 1/4" dia., Serial Range: Support-Bracket

4шт.

K19470

WASHER

--Plain, 1/4" dia.

4шт.

7

K19256

Bolt--3/8" B.S.F. x 3/4" L.

4шт.

K19482

SPRING WASHER

Washer--Spring, 3/8" dia.

4шт.

8

K63954

Starter Control Gasoline Only

1шт.

9

K35534

Coupling Sleeve Gasoline Only

1шт.

10

K36384

SWITCH

Starter Switch Gasoline Only

1шт.

11

K89614

Support Bracket--Starter Switch Gasoline Only

1шт.

12

K19200

BOLT

--1/4" B.S.F. x 5/8" L. Bracket to Support, Gasoline Only

2шт.

K19480

SPRING WASHER

--Spring, 1/4" dia. Bracket to Support, Gasoline Only

2шт.

K19472

WASHER

--Plain, 3/8" dia. Bracket to Support, Gasoline Only

1шт.

13

K89738

Choke Control Gasoline Only

1шт.

K19472

WASHER

--Plain 3/8" dia. Gasoline Only

1шт.

14

K12802

Clip--Choke Control Clip to Clutch Housing, Gasoline Only

1шт.

15

K19375

LOCK SCREW

Screw--Rd. Hd. 1/4" B.S.F.x1/2" L. Clip to Clutch Housing, Gasoline Only

1шт.

K19401

NUT

--Plain, 1/4" B.S.F. Clip to Clutch Housing, Gasoline Only

1шт.

K19480

SPRING WASHER

--Spring, 1/4" dia. Clip to Clutch Housing, Gasoline Only

1шт.

16

K902575

SPARE PART

Knob--Engine Stop Rod Diesel Only

1шт.

K11109

NUT

--Plain, 2 B.A. Diesel Only

1шт.

K12939

WASHER

--Plain, 2 B.A. Diesel Only

1шт.

17

K89369

STOP

Rod--Engine Stop Diesel Only

1шт.

18

K24780

SPRING

--Stop Rod Diesel Only

1шт.

K19496

WASHER

--Plain, 3/16" dia. Diesel Only

3шт.

K19520

PIN

Split Pin--1/16" dia. x 1/2" Diesel Only

3шт.

19

K88068

Support Bracket Diesel Only

1шт.

20

K11189

SCREW

--Rd. Hd. 3/16" Whit. x 1/2" L. Bracket to Support Bracket, Diesel Only

1шт.

K19415

NUT

--Plain, 3/16" Whit. Bracket to Support Bracket, Diesel Only

1шт.

K19488

SPRING WASHER

--Spring, 3/16" dia. Bracket to Support Bracket, Diesel Only

1шт.

21

K19903

IGNITION SWITCH

Starter Button (Diesel only), Re-positioned to Support Bracket

1шт.

22

K68534

STARTING MOTOR

Isolating Switch--Lucas S.53, Re-positioned to Support Bracket

1шт.

K88614

KEY

Re-positioned to Support Bracket

2шт.

K900938

Washer--Spring, Re-positioned to Support Bracket

1шт.
