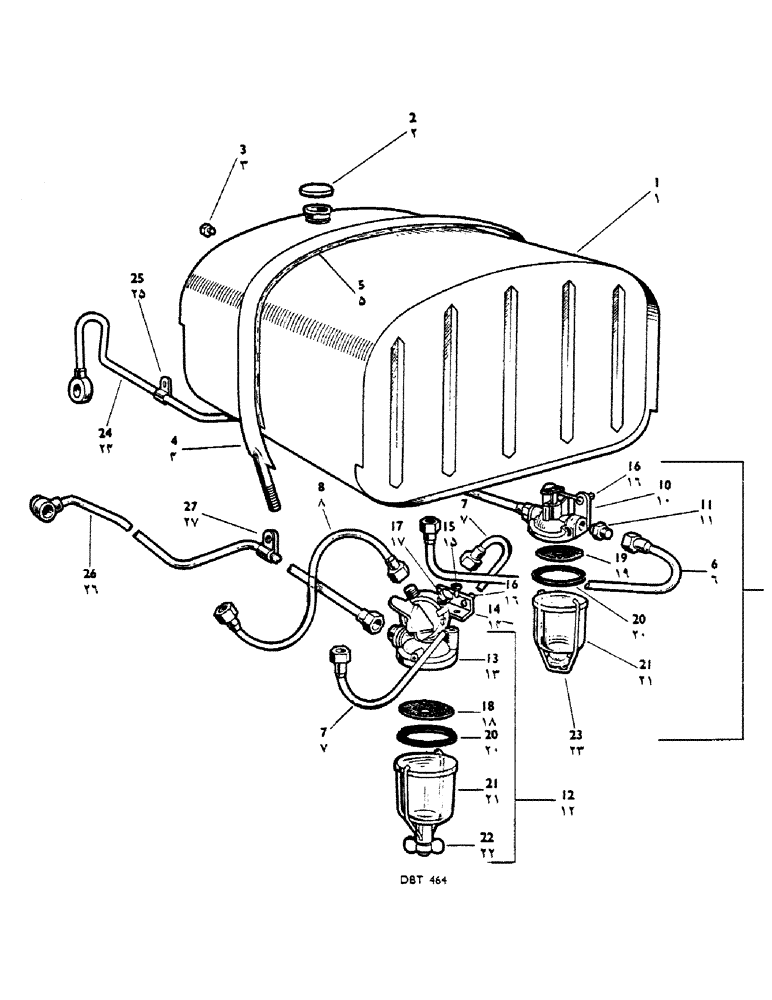

Запчасти Case IH 950 (076) - FUEL TANK, FUEL TAP AND PIPES (03) - FUEL SYSTEM

1

K903925

NO LONGER SERVICED

Fuel Tank--Complete (Diesel/Gasoline) (Single Compartment--Single Outlet)

1шт.

1

903926

Fuel Tank--Complete (Kerosene only) (With Reserve Compartment)

1шт.

2

K901983

CAP

Filler Cap (Code 00136)

1-2шт.

3

12394

BOOM

Plug--Fuel Leak Off Boss Gasoline Only

1шт.

K12259

Washer--Fibre Gasoline Only

1шт.

4

K17722

Strap--Tank Fixing

1шт.

5

K17721

PAD

--Tank Strap

1шт.

K19403

NUT

--Plain, 3/8" B.S.F.

2шт.

K19482

SPRING WASHER

Washer--Spring, 3/8" dia.

2шт.

6

K901408

Fuel Pipe--Tank to Tap (Diesel/Gasoline)

1шт.

7

89502

PULLEY

Fuel Pipe--Auxiliary Tank to Tap, (Kerosene)

1шт.

Required when fitting 86481 tap and bowl to diesel and gasoline tractors--Series 62282 to 65126

1шт.

8

K89504

Fuel Pipe--Main Tank to Tap (Kerosene/Gasoline/Diesel)

1шт.

9

K67319

BOWL

Fuel Tap and Bowl (Diesel/Gasoline)

1шт.

10

K89637

SPARE PART

Fuel Tap--only

1шт.

11

K12720

ADAPTER

Adaptor--Fuel Tap

2шт.

12

K86481

Fuel Tap and Bowl (Kerosene/Gasoline/Diesel)

1шт.

13

K66164

SPARE PART

Fuel Tap--only

1шт.

14

K89485

Fuel Tap Bracket

1шт.

15

11186

SPARE PART

Bolt--1/4" B.S.F. x 3/8" L.

2шт.

K19480

SPRING WASHER

--Spring, 1/4" dia.

2шт.

16

K24889

Screw--Rd. Hd. 1/4" B.S.F. x 1/2" L., Serial Range: Bracket-Tap

2шт.

K19401

NUT

--Plain, 1/4" B.S.F., Serial Range: Bracket-Tap

2шт.

K19480

SPRING WASHER

--Spring, 1/4" dia., Serial Range: Bracket-Tap

2шт.

17

K904284

Blanking Plug--(Diesel and Gasoline, only)

1шт.

Required when fitting 86481 tap and bowl to diesel and gasoline tractors--Series 62282 to 65126

1шт.

18

K34066

GAUGE ASSY.

Filter Gauze--(Kerosene/Gasoline/Diesel)

1шт.

19

K89638

STRAINER ELEMENT

Filter Gauze--(Diesel/Gasoline)

1шт.

20

K34065

SEAL

Joint

1шт.

21

K34064

SIGHTGLASS

Bowl

1шт.

22

K31240

X

Stirrup and Screw--(Kerosene Gasoline/Diesel)

1шт.

23

K89639

GRATE

Stirrup and Screw--(Diesel/Gasoline)

1шт.

24

K89488

PIPE

Fuel Pipe--Tap to Lift Pump (Diesel)

1шт.

25

K16368

Clip--Fuel Pipe

1шт.

26

K89612

Fuel Pipe--Tap to Carburetter (Gasoline/Kerosene)

1шт.

27

K24896

Clip--Fuel Pipe

1шт.
