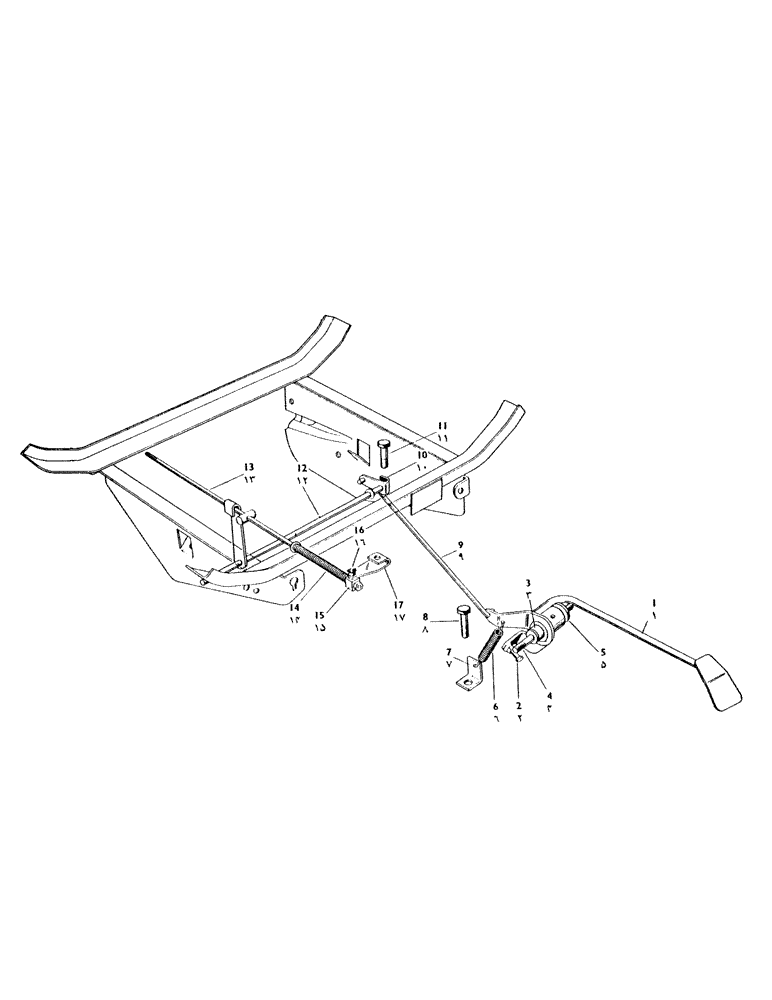

Запчасти Case IH 950 (072) - FOOT THROTTLE CONTROL (03) - FUEL SYSTEM

1

K900015

PEDAL

Accelerator Pedal

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

K626440

WASHER

Copper Washer--Plain

1шт.

2

K620500

BOLT

Special Bolt--1/4" B.S.F. x 1 1/8" L.

1шт.

K19440

NUT

Locknut--1/4" B.S.F.

1шт.

3

K900016

CLUTCH

Extension--Cross Shaft

1шт.

4

K22050

Stud--3/8" B.S.F. x 3 3/4" L. Pedal Support

1шт.

5

K88751

WASHER

Special Washer Pedal Support

1шт.

K19403

NUT

--Plain, 3/8" B.S.F.

1шт.

K19482

SPRING WASHER

Washer--Spring, 3/8" dia.

1шт.

6

K30332

SPRING

1шт.

7

K900017

BRACKET

Anchor Bracket

1шт.

8

K19359

Bolt--7/16" B.S.F.x7/8"

1шт.

K19483

SPRING WASHER

--Spring, 7/16" dia.

1шт.

9

K900018

ROD

--Pedal to Cross Shaft

1шт.

K19520

PIN

Split Pin--1/16" dia. x 1/2" L.

4шт.

K19470

WASHER

--Plain, 1/4" dia.

4шт.

10

K89255

LEVER

--Cross Shaft

1шт.

11

K19206

Bolt--1/4" B.S.F. x 1 3/8" L. Lever Fixing

1шт.

K19401

NUT

--Plain, 1/4" B.S.F. Lever Fixing

1шт.

K19480

SPRING WASHER

--Spring, 1/4" dia.

1шт.

K19470

WASHER

--Plain, 1/4" dia.

1шт.

12

K900020

SHAFT

Cross Shaft and Lever

1шт.

13

K900023

ROD

Control Rod (Replaces 89370)

1шт.

14

K60193

NO LONGER SERVICED

Spring

1шт.

15

K900024

PIN

Pivot Pin

1шт.

16

K621583

RING, SNAP

E Clip

1шт.

K19401

NUT

--Plain, 1/4" B.S.F. Pivot Pin Fixing

1шт.

K19440

NUT

Locknut--1/4" B.S.F. Pivot Pin Fixing

1шт.

17

K900025

LEVER

1шт.
