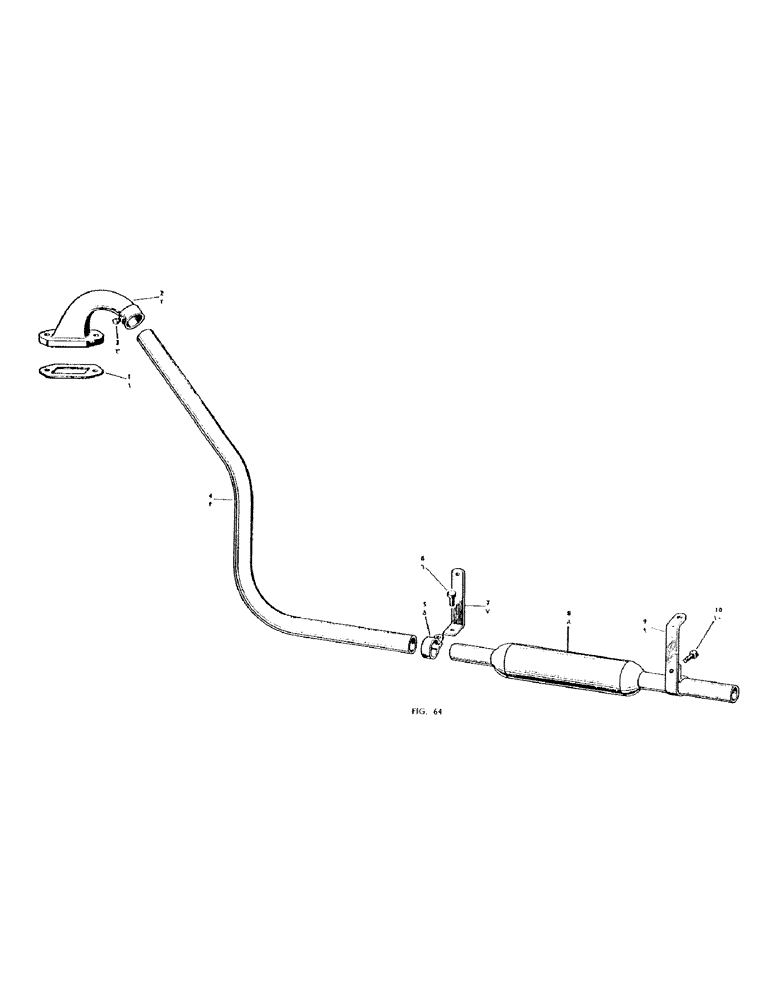

Запчасти Case IH 950 (166) - DOWNSWEPT EXHAUST AND SILENCER (02) - ENGINE

1

K68327

GASKET

--Exhaust Flange

1шт.

2

K902322

PIPE, EXHAUST SYSTEM

Exhaust Pipe Bend Diesel

1шт.

2

K906679

Exhaust Pipe Bend Gasoline

1шт.

3

K68120

SCREW

Locking Screw

1шт.

K19423

NUT

--Plain, 3/8" B.S.F. (Brass)

1шт.

4

K902323

SPARE PART

Exhaust Pipe Diesel

1шт.

4

K906682

Exhaust Pipe Gasoline

1шт.

5

K10455

CLIP

1шт.

6

K19345

BOLT

--5/16" B.S.F. x 1/2" L., Serial Range: Clip-Strap

1шт.

K19402

NUT

--Plain, 5/16" B.S.F., Serial Range: Clip-Strap

1шт.

K19481

SPRING WASHER

Washer--Spring, 5/16" dia., Serial Range: Clip-Strap

1шт.

7

K902325

SUPPORT

Strap

1шт.

8

K902324

MUFFLER

Silencer

1шт.

9

K87879

Clip--Silencer to Hitch Bracket

1шт.

10

K19345

BOLT

--5/16" B.S.F. x 1/2" L. Rear Clip

1шт.

K19402

NUT

--Plain, 5/16" B.S.F. Rear Clip

1шт.

K19481

SPRING WASHER

Washer--Spring, 5/16" dia.

1шт.

K88690

INSERT

Rubber Insert

1шт.
