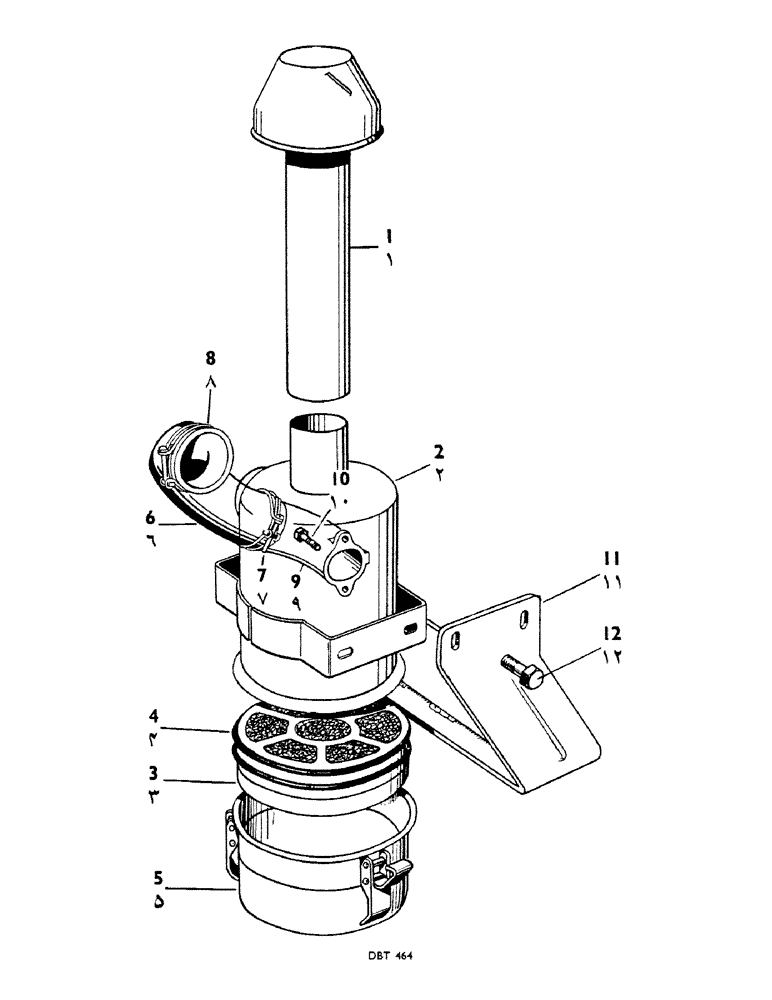

Запчасти Case IH 950 (068) - AIR CLEANER, GASOLINE (02) - ENGINE

1

K89399

Pre-Cleaner

1шт.

2

K903435

Air Cleaner--Complete From Tractor 68070 Inclusive

1шт.

3

K900218

FILTER, ELEMENT

Lower Element

1шт.

4

K902981

SPARE PART

Rubber Sealing Ring

2шт.

5

K903432

Bowl (with Toggle Clips)

1шт.

6

K89813

ELBOW

(Rubber) Air Cleaner

1шт.

7

K13081

HOSE CLAMP

Hose Clip--2 1/4" dia.

1шт.

8

K13083

NO LONGER SERVICED

Hose Clip--2 1/2" dia.

1шт.

9

K39495

Adaptor--Carburetter

1шт.

10

K19202

SPARE PART

Bolt--1/4" B.S.F. x 7/8" L., Serial Range: Elbow-Carburetter

2шт.

K19401

NUT

--Plain, 1/4" B.S.F., Serial Range: Elbow-Carburetter

2шт.

K19480

SPRING WASHER

--Spring, 1/4" dia., Serial Range: Elbow-Carburetter

2шт.

11

K89569

Bracket--Air Cleaner (Modified)

1шт.

12

K19346

Bolt--5/16" B.S.F. x 5/8" L. Cleaner to Bracket and, Serial Range: Bracket-Frame

8шт.

K19402

NUT

--Plain, 5/16" B.S.F. Cleaner to Bracket and, Serial Range: Bracket-Frame

4шт.

K19481

SPRING WASHER

Washer--Spring, 5/16" dia. Cleaner to Bracket and, Serial Range: Bracket-Frame

8шт.

K903381

NO LONGER SERVICED

Transfer

1шт.
