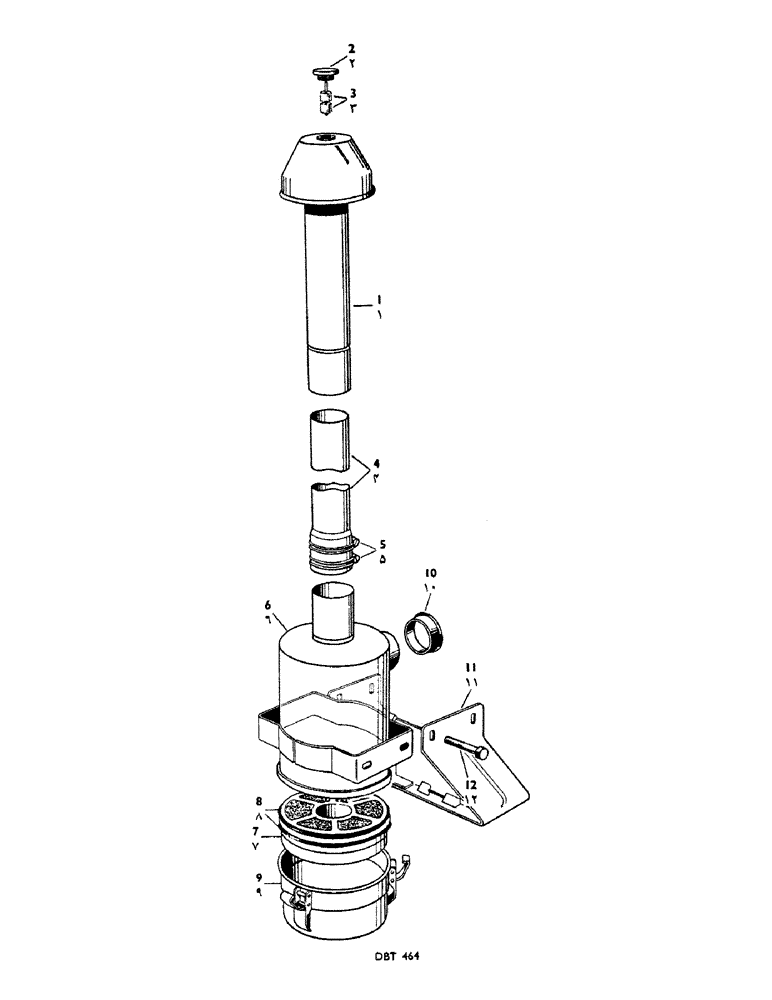

Запчасти Case IH 950 (066) - AIR CLEANER, DIESEL (02) - ENGINE

1

K87561

Pre-Cleaner--Complete with Ether Plug

1шт.

2

K900186

PLUG

Ether Plug--Complete

1шт.

3

K67464

Felt Pad

2шт.

K19500

GASKET

Washer--Fibre 3/8" Gas

1шт.

4

K64761

Extension Pipe Auxiliary Equipment

1шт.

5

K13082

CLAMP

Clip Auxiliary Equipment

2шт.

6

K903433

Air Cleaner--Complete From Tractor 61859 Inclusive

1шт.

7

K900218

FILTER, ELEMENT

Lower Element

1шт.

8

K902981

SPARE PART

Rubber Sealing Ring

2шт.

9

K903432

Bowl (with Toggle Clips)

1шт.

10

K89403

SEALING LEAD

Sealing Ring (Rubber)

1шт.

11

K89569

Bracket--Air cleaner (Modified)

1шт.

12

K19346

Bolt--5/16" B.S.F. x 5/8" L. Cleaner to Bracket and, Serial Range: Bracket-Frame

8шт.

K19402

NUT

--Plain, 5/16" B.S.F. Cleaner to Bracket and, Serial Range: Bracket-Frame

4шт.

K19481

SPRING WASHER

Washer--Spring, 5/16" dia. Cleaner to Bracket and, Serial Range: Bracket-Frame

8шт.

K84710

Pre-Cleaner, Required when fitting Front Agricultural Loader A.L.I.

1шт.

K84708

Air Intake Pipe replaces 87561, Required when fitting Front Agricultural Loader A.L.I.

1шт.

K13082

CLAMP

Hose Clip, Required when fitting Front Agricultural Loader A.L.I.

1шт.

K84709

Support Bracket--Pre-Cleaner, Required when fitting Front Agricultural Loader A.L.I.

1шт.

K600217

BOLT

--5/16" U.N.C. x 3" L. Support Bracket to Overloader, Required when fitting Front Agricultural Loader A.L.I.

2шт.

9635082

NUT,5/16" - 18, Gr 5

--Plain, 5/16" U.N.C. Support Bracket to Overloader, Required when fitting Front Agricultural Loader A.L.I.

2шт.

K19481

SPRING WASHER

Washer--Spring, 5/16" dia. Support Bracket to Overloader, Required when fitting Front Agricultural Loader A.L.I.

2шт.

K903381

NO LONGER SERVICED

Transfer

1шт.
