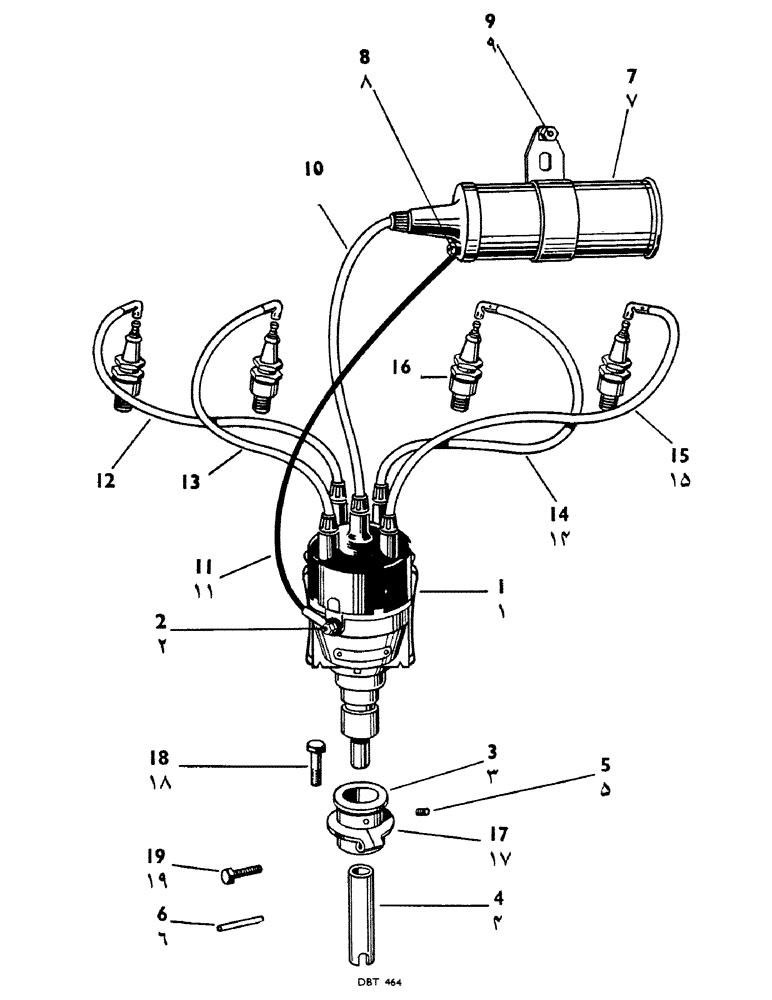

Запчасти Case IH 950 (064) - COIL IGNITION EQUIPMENT, TWELVE VOLT (02) - ENGINE

K31608

Distributor--Complete with Leads and Drive, Comprising Refs. 1 - 4, 5, 10 and, Serial Range: 12-15

1шт.

1

K65802

Distributor--12 volt Lucas D.3.A.4, Type 5.53 (Not supplied separately) Dust Proofed

1шт.

2

K66673

Terminal Nut (Lucas 410600) Distributor

5шт.

2

K66672

Terminal Washer (Lucas 185015) Distributor

5шт.

3

K67146

Adaptor Bush

1шт.

4

K67147

Dog--Distributor Drive

1шт.

5

K14519

Grubscrew--For Adaptor Bush

1шт.

6

K19560

PIN

--1/8" dia. x 1" L. Mills G.P.1 for Drive Dog

1шт.

7

K37486

Ignition Coil--12 volt CAV. Q.12.L.I.

1шт.

8

K66671

Terminal Nut (Lucas 408120)

1шт.

8

K66672

Terminal Washer (Lucas 185015)

1шт.

9

K19376

Setscrew--1/4" B.S.F. x 3/4" L.

2шт.

K12681

Nut--Special, 1/4" B.S.F., Serial Range: Coil-Cover

2шт.

K19437

Locknut--1/4" B.S.F. (Simmonds), Serial Range: Coil-Cover

2шт.

10

K12686

Lead--H.T., Serial Range: Distributor-Coil

1шт.

11

K12679

Lead--L.T., Serial Range: Coil-Distributor

1шт.

12

K65069

Lead--Distributor to No. 1 Plug, Fitted with Suppressors (Yellow)

1шт.

13

K65070

Lead--Distributor to No. 2 Plug, Fitted with Suppressors (Red)

1шт.

14

K65071

Lead--Distributor to No. 3 Plug, Fitted with Suppressors (Green)

1шт.

15

K65072

Lead--Distributor to No. 4 Plug, Fitted with Suppressors (Blue)

1шт.

16

K67388

SPARK PLUG

Sparking Plug--18 mm. Lodge, C3 Gasoline Engines

4шт.

16

K66718

Sparking Plug--18 mm. Lodge, BBL Kerosene Engines

4шт.

17

K12608

Clamp--for Distributor

1шт.

18

K19346

Bolt--5/16" B.S.F. x 5/8" L. Clamp to Block Clamp Tightening

1шт.

19

K19229

SPARE PART

Bolt--5/16" B.S.F. x 1 7/8" L. Clamp to Block Clamp Tightening

1шт.

K19402

NUT

--Plain, 5/16" B.S.F. Clamp to Block Clamp Tightening

1шт.

K19481

SPRING WASHER

Washer--Spring, 5/16" dia.

2шт.

K64661

Suppressor--Lucas 78114A--Distributor

1шт.

K12671

Condenser--(Auto Suppressor) 1 #m#F Coil and Dynamo Regulator

2шт.

K12672

SPARE PART

Condenser--(Auto Suppressor) .02 #m#F Coil and Dynamo Regulator

1шт.
