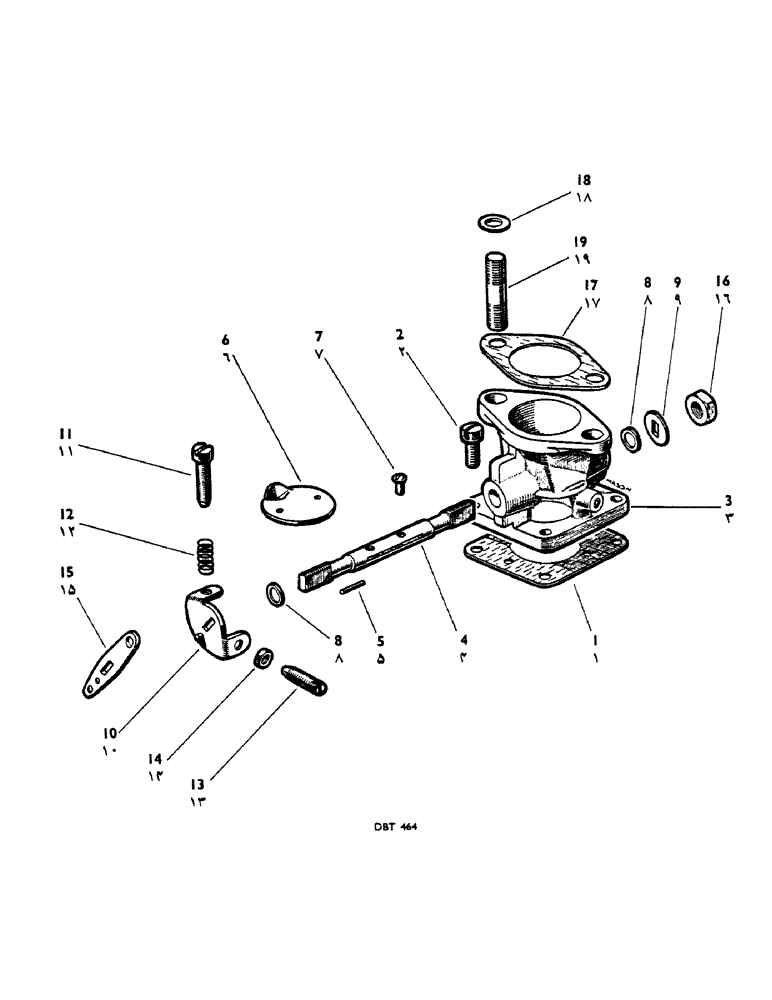

Запчасти Case IH 950 (062) - THROTTLE CHAMBER (02) - ENGINE

1

K38012

GASKET

(Solex 9060) Throttle Chamber to Float Chamber Cover

1шт.

2

K12832

Screw--(Solex 10173) Throttle Chamber to Float Chamber Cover

4шт.

K12833

Washer--Spring (Solex 901) Throttle Chamber to Float Chamber Cover

4шт.

K37571

Throttle Chamber--Complete (Solex 11474) (Roller Bearing Type) Comprising

1шт.

3

K63733

Chamber--(Solex 50598/L4)

1шт.

4

K30728

(Solex 9419)

1шт.

5

K30729

Needle Roller Bearings--(Solex 9421)

28шт.

6

K12819

Butterfly--(Solex 50822)

1шт.

7

K12820

Screw--Fixing Butterfly to Spindle (Solex 3947)

2шт.

8

K62734

Sealing Washer--(Solex 53364) (Nylon)

2шт.

9

K31481

End Washer--(Solex 4031)

1шт.

10

K12821

Abutment Plate--(Solex 4019)

1шт.

11

K12822

Screw--for Slow Running Adjustment (Solex 4023)

1шт.

12

K12823

Spring--(Solex 4384)

1шт.

13

K12824

Screw--Throttle Stop (Solex 50537)

1шт.

14

K12825

Nut--(Solex 3950)

1шт.

15

K12826

Throttle Lever (Solex 5966)

1шт.

16

K12860

Nut--Spindle Locking (Solex 4024)

2шт.

17

K10417

GASKET

, Serial Range: Carburetter-Manifold

2шт.

18

K67575

Insulating, Serial Range: Carburetter-Manifold

1шт.

19

K14963

Stud--5/16" B.S.F. x 1 3/8" L., Serial Range: Carburetter-Manifold

2шт.

K19402

NUT

Plain, 5/16" B.S.F.

2шт.

K19481

SPRING WASHER

Spring, 5/16" dia.

2шт.

K89740

Carburetter--Solex 30 F.V. Gasoline UAG.4.40.T and U, assemblies

1шт.

K12900

Main Jet--110/51, carburetter assemblies

1шт.

K12809

Auxiliary Jet--40, carburetter assemblies

1шт.

K35927

Choke Tube--24 mm., carburetter assemblies

1шт.

K89739

Carburetter--Solex 30 F.V. Kerosene AK.4.40.T and U, assemblies

1шт.

K39439

Main Jet--115/57, carburetter assemblies

1шт.

K12813

Auxiliary Jet--45, carburetter assemblies

1шт.

K35927

Choke Tube--24 mm., carburetter assemblies

1шт.
