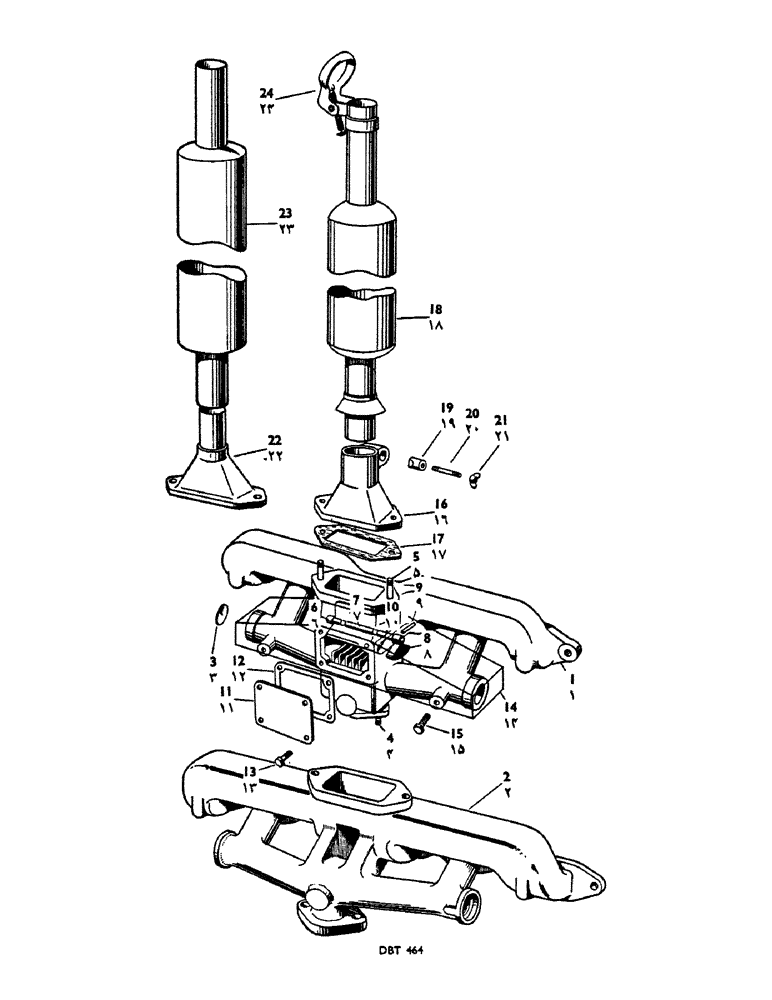

Запчасти Case IH 950 (058) - MANIFOLD AND SILENCER (02) - ENGINE

1

K30634

Manifold--Complete with Valve--Kerosene only

1шт.

2

K67835

Manifold--Combined Inlet and Exhaust--Gasoline only (replaces 18122C)

1шт.

3

K11272

PLUG

Welch Plug

2шт.

4

K14963

Stud--5/16" B.S.F. x 1 3/8" L. for Carburetter

2шт.

5

K625303

STUD

--3/8" B.S.F. x 1 5/16" L. for Exhaust Flange

2шт.

6

K10687

Bush--Valve Spindle Kerosene Manifold only

2шт.

K30064

Spindle and Bob Weight--Complete, Kerosene Manifold only, Comprising

1шт.

7

K10689

Spindle Kerosene Manifold only

1шт.

8

K12078

Bob Weight Kerosene Manifold only

1шт.

9

K11733

PIN

Mills Pin--1/8" dia. x 3/4" L. G.P.I. Kerosene Manifold only

1шт.

K35244

Spindle and Bob Weight--Complete, required for Valve Type Gasoline Manifold only, Comprising, Discontinued

1шт.

7

K10689

Spindle required for Valve Type Gasoline Manifold only, Discontinued

1шт.

8

K35245

Bob Weight required for Valve Type Gasoline Manifold only, Discontinued

1шт.

9

K11734

Mills Pin--3/32" dia. x 3/4" L. G.P.I. required for Valve Type Gasoline Manifold only, Discontinued

1шт.

10

K10692

Valve--Complete, Kerosene and Valve type Gasoline Manifold

1шт.

11

K10686

Cover Plate--Valve, Kerosene and Valve type Gasoline Manifold

1шт.

12

K10694

GASKET

Cover Plate to Manifold, Kerosene and Valve type Gasoline Manifold

1шт.

13

K19345

BOLT

--5/16" B.S.F. x 1/2" L. Cover Plate to Manifold, Kerosene and Valve type Gasoline Manifold

4шт.

K19481

SPRING WASHER

Washer--Spring, 5/16" dia. Cover Plate to Manifold, Kerosene and Valve type Gasoline Manifold

4шт.

14

K10695

Shield--Manifold, Kerosene and Valve type Gasoline Manifold

1шт.

15

K19345

BOLT

--5/16" B.S.F. x 1/2" L. Shield to Manifold, Kerosene and Valve type Gasoline Manifold

2шт.

K19481

SPRING WASHER

Washer--Spring, 5/16" dia. Shield to Manifold, Kerosene and Valve type Gasoline Manifold

2шт.

16

K88519

Exhaust Flange Not Supplied with Engine unit

1шт.

17

K68327

GASKET

Flange to Manifold Not Supplied with Engine unit

1шт.

K19423

NUT

--Plain, 3/8" B.S.F. (Brass) Flange to Manifold, Not Supplied with Engine unit

2шт.

18

K89671

SPARE PART

Exhaust Silencer Not Supplied with Engine unit

1шт.

19

K88518

Bush--Silencer Locking Not Supplied with Engine unit

1шт.

20

K24714

Stud--5/16" B.S.F. x 2 1/4" L. Not Supplied with Engine unit

1шт.

21

K24713

Wing Nut--5/16" B.S.F. Not Supplied with Engine unit

1шт.

K19481

SPRING WASHER

Washer--Spring, 5/16" dia. Not Supplied with Engine unit

1шт.

22

K905165

FLANGE

Exhaust Flange Not Supplied with Engine unit

1шт.

23

K905166

SPARE PART

Exhaust Silencer Not Supplied with Engine unit

1шт.

24

K35361

Raintrap Not Supplied with Engine unit

1шт.
