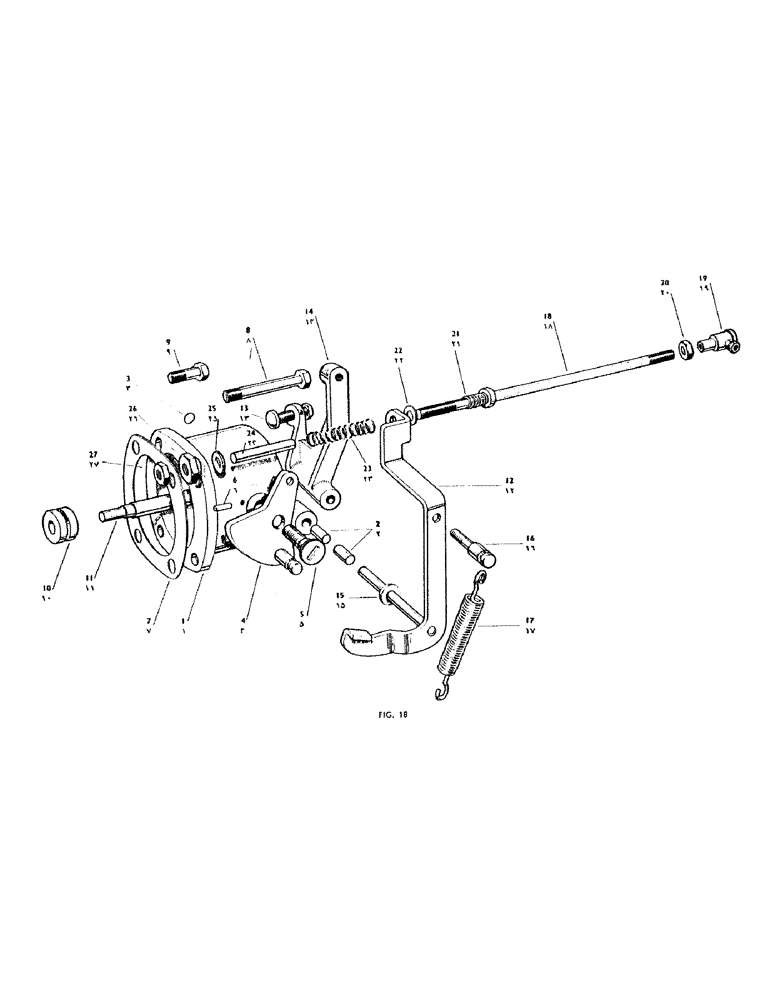

Запчасти Case IH 950 (052) - GOVERNOR CASE AND CONTROLS (02) - ENGINE

K33380

Governor Case--Complete with Cam, Comprising Refs. 1 - 6

1шт.

1

K33367

Case--Governor

1шт.

2

K12550

Bush--Throttle Lever and Spindle

4шт.

3

K12549

PLUG

Welch Plug

1шт.

4

K33381

Cam--Complete Comprising

1шт.

K33373

Cam Plate

1шт.

K12545

Anchor for Spring

1шт.

5

K12542

Fulcrum Pin

1шт.

6

K19560

PIN

--1/8" dia. x 1" L. Mills G.P.I.

1шт.

7

K33379

Gasket Governor Case to Carrier Plate

1шт.

8

K11566

Bolt--Fitting, 5/16" B.S.F. x 3 3/8" L. Governor Case to Carrier Plate

2шт.

9

K19221

Bolt--5/16" B.S.F. x 7/8" L. Governor Case to Carrier Plate

2шт.

K19402

NUT

--Plain, 5/16" B.S.F. Governor Case to Carrier Plate

4шт.

K19481

SPRING WASHER

Washer--Spring, 5/16" dia. Governor Case to Carrier Plate

4шт.

10

K19041

BEARING

--Thrust. W. 5/16"

1шт.

11

K33369

Push Rod

1шт.

12

K89855

Lever and Spindle--Throttle

1шт.

13

K12552

Button--Governor Thrust

1шт.

K19401

NUT

--Plain, 1/4" B.S.F.

1шт.

14

K33372

Lever--Rocking

1шт.

15

K12553

WASHER

--Spindle Sealing

3шт.

16

K12555

Anchor--for Spring

1шт.

K19402

NUT

--Plain, 5/16" B.S.F., Serial Range: Anchor-Levers

1шт.

K19481

SPRING WASHER

Washer--Spring, 5/16" dia., Serial Range: Anchor-Levers

1шт.

17

K14670

SPRING

1шт.

18

K33375

Control Rod with Collar, Serial Range: Governor-Carburetter

1шт.

19

K12468

Ball Joint

1шт.

20

K19401

NUT

--Plain, 1/4" B.S.F.

1шт.

21

K12561

Spring

1шт.

22

K19470

WASHER

--Plain, 1/4" dia.

1шт.

23

K30658

Spring

1шт.

24

K30659

Sleeve

1шт.

25

K19470

WASHER

--Plain, 1/4" dia.

1шт.

26

K30696

Hand Nut--1/4" B.S.F.

1шт.

27

K19440

NUT

Locknut--1/4" B.S.F.

1шт.
