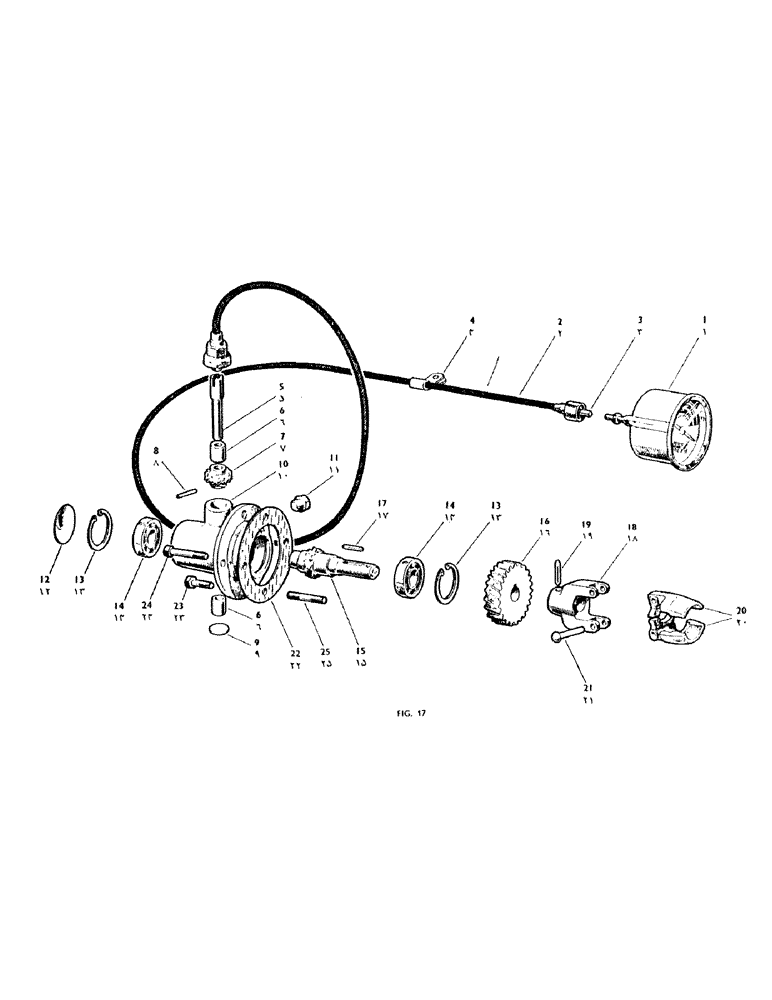

Запчасти Case IH 950 (050) - GOVERNOR WITH TRACTORMETER (02) - ENGINE

1

K901846

SPARE PART

Tractormeter (M.P.H.)

1шт.

1

K902272

SPARE PART

Tractormeter (K.P.H.)

1шт.

2

K901158

Drive Cable--62" L.

1шт.

3

K904134

Inner Cable Only

1шт.

K621613

Clip--Cable to Manifold Stud

2шт.

4

K19917

Clip

1шт.

K624792

SCREW

Parker Kalon Screw No. 10

1шт.

5

K901156

Spindle--for Driven Gear

1шт.

6

K37545

FITTING

Bush--Oil Retaining Gear Housing

2шт.

7

K903445

Driven Gear

1шт.

8

K11733

PIN

--1/8" dia. x 3/4" L. Mills G.P.I.

1шт.

9

K10448

PLUG

Welch Plug--3/4" dia.

1шт.

10

K904015

Gear Housing

1шт.

11

K19581

PLUG

--Flanged, 1/4" Gas

1шт.

K19501

WASHER

Washer--Fibre, 1/4" Gas

1шт.

12

K10023

PLUG

Welch Plug--2" dia.

1шт.

13

K12411

RING, SNAP

Circlip--Seeger, 2" Internal

2шт.

14

K19001

BEARING

--Ball, Hoff. L.S.9

2шт.

15

K903446

Driving Gear

1шт.

16

K33368

Gear--Governor Drive

1шт.

17

K11558

Key--Standard, Round Ended

1шт.

18

K33366

Fork--Governor Weight Carrier

1шт.

19

K11557

Pin--3/16" dia. x 1 3/8" L. Mills G.P.3

1шт.

20

K12495

Governor Weight

2шт.

21

K68394

Rivet--Rd. Hd., 3/16" dia. x 1 1/8" L.

2шт.

22

K33378

Gasket

1шт.

23

K19221

Bolt--5/16" B.S.F. x 7/8" L. Drive Housing to Timing Cover

2шт.

K19481

SPRING WASHER

Washer--Spring, 5/16" dia. Drive Housing to Timing Cover

2шт.

24

K14473

Bolt--Fitting, 5/16" B.S.F. x 3 1/16" L. Drive Housing to Timing Cover

1шт.

25

K10421

Stud--5/16" B.S.F. Drive Housing to Timing Cover

1шт.

K19402

NUT

--Plain, 5/16" B.S.F. Drive Housing to Timing Cover

1шт.
