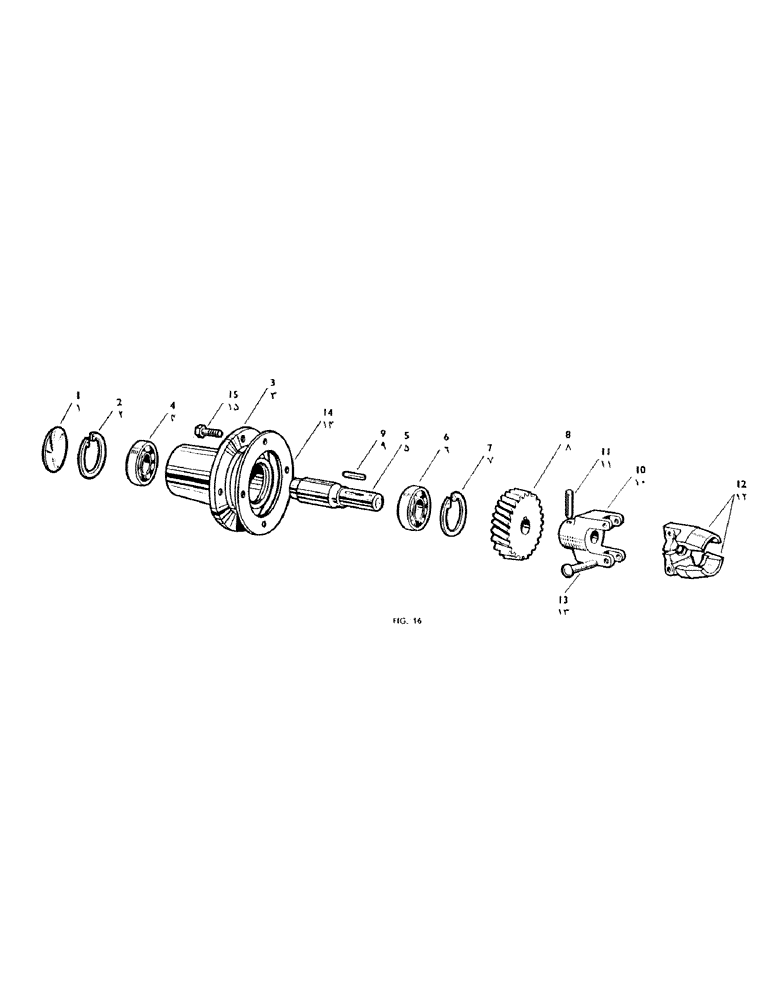

Запчасти Case IH 950 (048) - GOVERNOR (02) - ENGINE

K64566

Governor Drive--Complete, Comprising Refs. 1 - 11

1шт.

1

K10023

PLUG

Welch Plug

1шт.

2

K12411

RING, SNAP

Circlip--Seeger, 2" Internal

1шт.

3

K33364

Housing--for Bearings

1шт.

4

K19001

BEARING

--Ball, Hoff. L.S.9

1шт.

5

K64500

Drive Shaft

1шт.

6

K19001

BEARING

--Ball, Hoff. L.S.9

1шт.

7

K12411

RING, SNAP

Circlip--Seeger, 2" Internal

1шт.

8

K33368

Gear--Governor

1шт.

9

K11558

Key--Standard--Round Ended

1шт.

10

K33366

Fork--Governor Weight Carrier

1шт.

11

K11557

Mills Pin--3/16" dia. x 1 3/8" L. G.P.3.

1шт.

12

K12495

Governor Weight

2шт.

13

K68394

Rivet--Rd. Hd., 3/16" dia. x 1 1/8" L.

2шт.

14

K33378

Gasket Drive Housing to Timing Cover

1шт.

15

K19221

Bolt--5/16" B.S.F. x 7/8" L. Drive Housing to Timing Cover

2шт.

K19481

SPRING WASHER

Washer--Spring, 5/16" dia. Drive Housing to Timing Cover

2шт.
