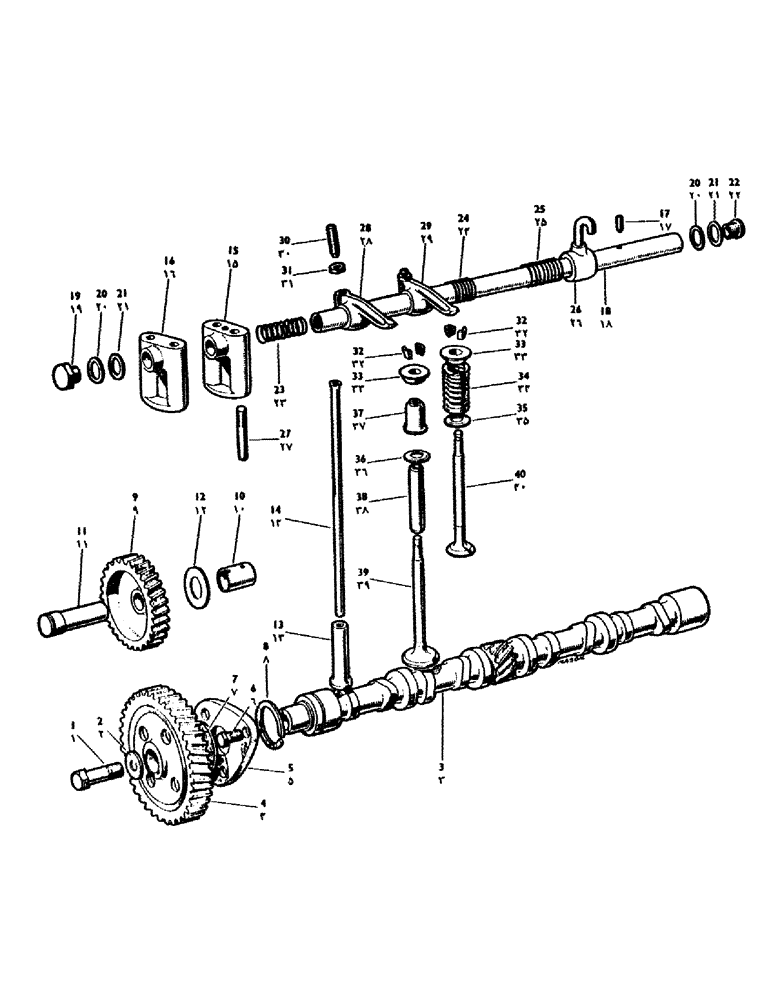

Запчасти Case IH 950 (040) - CAMSHAFT AND GEAR (02) - ENGINE

1

K11106

Special, 7/16" B.S.F. x 2 1/2" L.

1шт.

2

K66382

WASHER

Bolt (3/16" Thick)

1шт.

3

K87311

SHAFT

Camshaft--Complete with Bolt and Washer

1шт.

4

K30409

Camshaft

1шт.

K19607

KEY

Woodruff No. 8

1шт.

5

K30640

Locating Camshaft

1шт.

6

K19223

NO LONGER SERVICED

Bolt--5/16" B.S.F. x 1 1/8" L.

3шт.

K19481

SPRING WASHER

Spring, 5/16" dia.

3шт.

7

K30410

WASHER

Thrust

1шт.

8

K11037

1 7/8" dia. External

1шт.

9

K10018

Idler Gear

1шт.

10

K10015

Bush--Idler Gear

1шт.

11

K30491

Shaft--Idler Gear

1шт.

12

K33377

Thrust Washer, idler gear

1шт.

TAPPETS, push rods and rocker shaft

1шт.

13

K901137

TAPPET

S, push rods and rocker shaft

8шт.

14

K901928

TAPPETS, rocker shaft

8шт.

K31024

Rocker -Complete, Comprising Refs. 15 - 24, tappets, push rods and

1шт.

15

K11014

Bracket--Rocker Shaft--Locating, tappets, push rods

1шт.

16

K11015

Bracket--Rocker Shaft, tappets, push rods

3шт.

17

K11016

SCREW

Locating Rocker Shaft, tappets, push rods

1шт.

18

K30333

Shaft--Valve Rocker, tappets, push rods

1шт.

19

K19590

PLUG

Flanged, 3/8" Gas, tappets, push rods and rocker shaft

1шт.

20

K15512

WASHER

Rolled Copper, tappets, push rods and rocker shaft

1шт.

21

K19506

Special, 25/32" dia., tappets, push rods and rocker shaft

1шт.

22

K19586

Adaptor--Oil Lubrication Pipe, tappets, push rods and rocker shaft

1шт.

20

K15512

WASHER

Rolled Copper, tappets, push rods and rocker shaft

1шт.

21

K19506

Special, 25/32" dia., tappets, push rods and rocker shaft

1шт.

23

K11018

SPRING

Locating--Ends--Rocker Shaft, tappets, push rods

2шт.

24

K11017

SPRING

Intermediate--Rocker Shaft, tappets, push rods

2шт.

25

K30334

Centre--Rocker Shaft, tappets, push rods

2шт.

26

K30335

Banjo--, tappets, push rods and rocker shaft

1шт.

K11016

SCREW

Locating Banjo, tappets, push rods and rocker shaft

1шт.

27

K11026

Stud--3/8" B.S.F. x 3 3/4" L. Brackets to Cylinder Head, tappets, push rods and rocker shaft

8шт.

K19403

NUT

Plain, 3/8" B.S.F. Brackets to Cylinder Head, tappets, push rods and rocker shaft

8шт.

K19482

SPRING WASHER

Spring, 3/8" dia., tappets, push rods and rocker shaft Brackets to Cylinder Head

8шт.

28

K30631

Valve Rocker--L.H.--Complete with Bush

4шт.

29

K30630

Valve Rocker--R.H.--Complete with Bush

4шт.

K11060A

BUSHING

Bush--Valve Rocker (Code No. 00017)

8шт.

30

K89811

3/8" B.S.F.--Valve Rocker

8шт.

31

K19442

NUT

Locknut--3/8" B.S.F., rockers and valves

8шт.

32

K11058

LOCK VALVE

Cotter--, rockers

16шт.

33

K11057

rockers and valves

8шт.

34

K11033

SPRING

rockers and valves

8шт.

35

K11029

Bottom Cup--, rockers and valves, Spring--Exhaust

4шт.

36

K64459

Bottom -Valve Spring--Inlet Valves, rockers

4шт.

37

K64424

SEAL

Rubber Washer--Valve Guides--Inlet Valves, rockers

4шт.

38

K31674

LOCK VALVE

Guide--, Located in Cylinder Head, rockers

8шт.

38

K36236

(.005" oversize), rockers and valves

1шт.

39

K11055

Inlet, rockers and valves

4шт.

40

K67775

Exhaust--(Necked Stem) Kerosene Engines, rockers and valves

4шт.

40

K88853

Exhaust--(Stellite Seat) All Gasoline Engines, rockers and valves

4шт.
