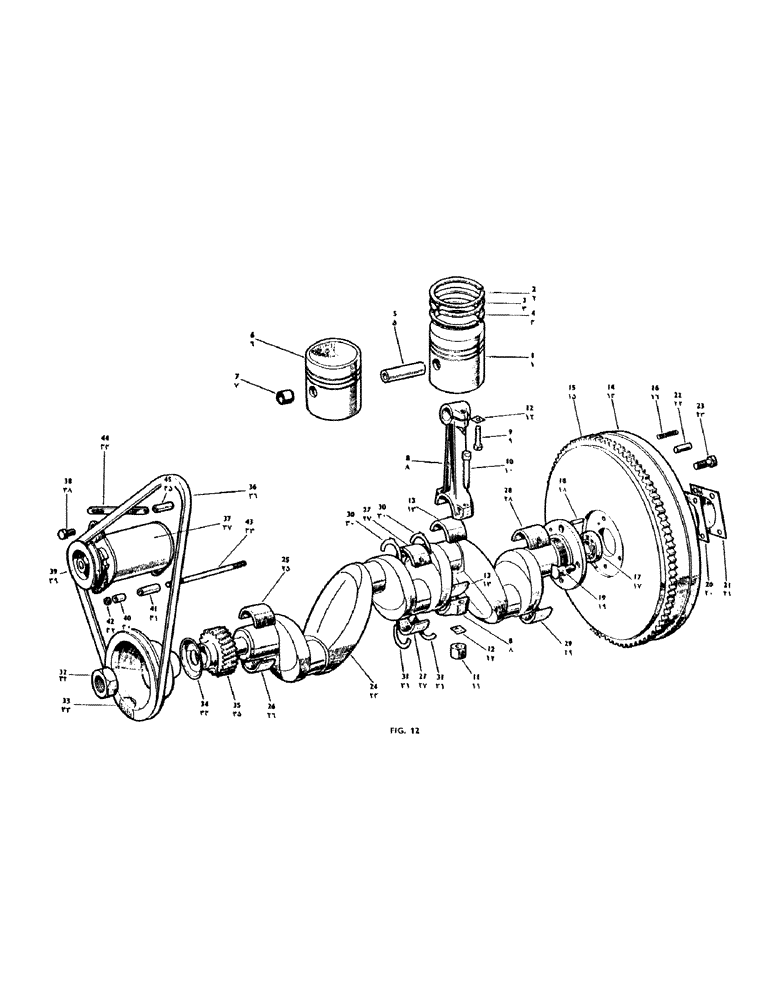

Запчасти Case IH 950 (034) - PISTONS, CONNECTING ROD, CRANKSHAFT AND GEAR, FLYWHEEL AND DYNAMO, STANDARD GASOLINE PISTONS (02) - ENGINE

K903121

Gasoline--3 5/8", Standard Dia.--Complete, Comprising pistons (6 1/4 - 1 compression ratio)

4шт.

1

K902735

Piston--Gasoline, 3 5/8" dia., Standard (Not Supplied Separately)

4шт.

2

K35535

Compression--No. 1 Standard

4шт.

3

K35536

Compression--No. 2 (Internal Step), Standard

4шт.

4

K83789

SCRAPER

Ring--No. 3 Standard

4шт.

5

K33219

Gudgeon Standard

4шт.

2

K39735

No. 1 ".010" Oversize", 3-5/8" dia. piston--Oversize equipment (6 1/4 - 1 compression ratio)

4шт.

3

K39736

No. 2--(Internal Step), ".010" Oversize", 3-5/8" dia. piston--Oversize equipment (6 1/4 - 1 compression ratio)

4шт.

4

K89074

SCRAPER

Ring--No. 3, ".010" Oversize", Services Standard 3 5/8" dia. Gasoline Piston, Pt. No. 902735, 3-5/8" dia. piston--Oversize equipment (6 1/4 - 1 compression ratio)

4шт.

K903122

Piston--Gasoline--3 5/8", ".020--Complete, Comprising, 3-5/8" dia. piston--Oversize equipment (6 1/4 - 1 compression ratio)

4шт.

1

K903124

Piston--Gasoline--dia., ".020, dia. piston--Oversize equipment (6 1/4 - 1 compression ratio) (Not Supplied Separately)

4шт.

2

K39740

Compression--No. 1 ".020, 3-5/8" dia. piston--Oversize equipment (6 1/4 - 1 compression ratio)

4шт.

3

K39741

Compression--No. 2 (Internal Step), ".020, 3-5/8" dia. piston--Oversize equipment (6 1/4 - 1 compression ratio)

4шт.

4

K89076

RING

Scraper--No. 3 ".020, 3-5/8" dia. piston--Oversize equipment (6 1/4 - 1 compression ratio)

4шт.

5

K33219

Gudgeon , 3-5/8" dia. piston--Oversize equipment (6 1/4 - 1 compression ratio)

4шт.

K903123

3-5/8" dia. piston--Oversize equipment (6 1/4 - 1 compression ratio)Gasoline--Complete, Comprising

4шт.

1

K903125

Piston--Gasoline, 3 5/8" dia., ".040" Oversize" (Not Supplied Separately)

4шт.

2

K39745

Ring--Compression--No. 1 ".040, 3-5/8" dia. piston--Oversize equipment (6 1/4 - 1 compression ratio)

4шт.

3

K39746

Ring--Compression--No. 2 (Internal Step), ".040, 3-5/8" dia. piston--Oversize equipment (6 1/4 - 1 compression ratio)

4шт.

4

K89078

PISTON ASSY.

Ring--Scraper--No. 3 ".040" , 3-5/8" dia. piston--Oversize equipment (6 1/4 - 1 compression ratio)

4шт.

5

K33219

GudgeonStandard, 3-5/8" dia. piston--Oversize equipment (6 1/4 - 1 compression ratio)

4шт.

K33886

kerosene pistons

4шт.

6

K33216

Kerosene pistons

4шт.

2

K35535

Compression--No. 1 Standard, kerosene pistons

4шт.

3

K35536

Compression--No. 2 (Internal Step), Standard, kerosene pistons

4шт.

4

K83789

SCRAPER

Ring---No. 3 Standard, kerosene pistons

4шт.

5

K33219

Gudgeon, ,kerosene pistons

4шт.

7

K64131

Bush--Gudgeon Pin Standard, kerosene pistons

8шт.

K39715

Piston--Kerosene--3 5/8", ".010" Oversize" dia.--Complete

4шт.

2

K39735

Compression No. 1 ".010" Oversize"

4шт.

3

K39736

Compression No. 2--(Internal Step), ".010" Oversize"

4шт.

4

K89074

SCRAPER

Ring--No. 3, ".010" Oversize", Services Standard 3 5/8" dia. Kerosene Piston, Pt. No. 33216

4шт.

K39719

Piston--Kerosene--3 5/8", ".020" Oversize" Dia.--Complete, Comprising

4шт.

6

K37529

Piston--Kerosene, 3 5/8" dia., ".020" Oversize" (Not Supplied Separately)

4шт.

2

K39740

Compression--No. 1 ".020" Oversize"

4шт.

3

K39741

Compression--No. 2 (Internal, ".020" Oversize" step)

4шт.

4

K89076

RING

Scraper--No. 3 ".020" Oversize"

4шт.

5

K33219

Gudgeon Pin Standard, 3-5/8" dia. piston--oversize equipment

4шт.

7

K64131

Bush--Gudgeon Pin Standard, 3-5/8" dia. piston--oversize equipment

8шт.

K39723

Piston--Kerosene--3 5/8", ".040" Oversize" Dia.--Complete, Comprising

4шт.

6

K37530

Piston--Kerosene, 3 5/8" dia., ".040" Oversize" (Not Supplied Separately)

4шт.

2

K39745

Ring--Compression--No. 1 ".040" Oversize", 3-5/8" dia. piston--oversize equipment

4шт.

3

K39746

Ring--Compression--No. 2 (Internal Step), ".040" Oversize", 3-5/8" dia. piston--oversize equipment

4шт.

4

K89078

PISTON ASSY.

Ring--Scraper--No. 3 ".040" Oversize", 3-5/8" dia. piston--oversize equipment

4шт.

5

K33219

GudgeonStandard, 3-5/8" dia. piston--oversize equipment

4шт.

7

K64131

Bush--Gudgeon Pin Standard, 3-5/8" dia. piston--oversize equipment

8шт.

K30246

ROD ASSY.

Connecting Cap--Complete, Comprising Items 8 through 12

4шт.

8

K10615

SPARE PART

Connecting Rod and Cap (Not supplied separately)

4шт.

9

K19356

Bolt--Special--Small End, connecting rod

4шт.

10

K30048A

Bolt--Special--Big End (Code No. 00030), connecting rod

8шт.

11

K30049

Nut--Special--Big End, connecting rod

8шт.

12

K10618

Tab , connecting rod

12шт.

13

K60839

BEARING

Big End--Upper and Lower Halves, Standard, connecting rod

8шт.

13

K61243

BEARING

Big End--Upper and Lower Halves, ".010" Undersize", connecting rod

8шт.

13

K61244

big End--Upper and Lower Halves, ".020" Undersize", connecting rod

8шт.

13

K61245

BEARING

Big End--Upper and Lower Halves, ".030" Undersize", connecting rod

8шт.

14

K89793

Flywheel and Starter Ring--Complete Livedrive, connecting rod

1шт.

14

K900718

Flywheel and Starter Ring--Complete Non-Livedrive, connecting rod

1шт.

15

K89792

Starter Gear, connecting rod

1шт.

16

K13226

SPRING

Flywheel Livedrive, connecting rod

3шт.

17

K19167

BALL BEARING,22.23mm ID x 50.8mm OD x 14.29mm W

Ball, Hoff. L.S.9P, connecting rod

1шт.

18

K10629

PIN

Dowel, connecting rod

1шт.

19

K10608

FlywheelFlywheel to Crankshaft, connecting rod

4шт.

20

K10623

BRAKE

Tab Washer (for Bearing) Flywheel to Crankshaft, connecting rod

2шт.

21

K89686

Locating Disc, connecting rod

1шт.

K19404

NUT

Plain, 7/16" B.S.F., connecting rod

4шт.

22

K35840

PIN

Dowel Clutch to Flywheel, connecting rod

2шт.

23

K19242

BOLT

3/8" B.S.F.x1 1/8" L. Clutch to Flywheel, connecting rod

6-9шт.

K19482

SPRING WASHER

Spring 3/8" dia. Clutch to Flywheel, connecting rod

6-9шт.

24

K68213

CRANKSHAFT

Complete with Bearings and Thrust Washers, gear

1шт.

25

K67396

Main -Crankshaft--Upper Front, Standard, gear

1шт.

25

K67505

BEARING

Main --cranskaft-Upper Front, ".010" Oversize", gear

1шт.

25

K67513

BEARING

Main -Crankshaft--Upper Front, ".200" Oversize", gear

1шт.

25

K67521

Main Bearing--Crankshaft--Upper Front, ".030" Oversize", gear

1шт.

26

K67466

BEARING

Main Crankshaft--Lower Front, Standard, gear

1шт.

26

K67506

SPARE PART

Main Bearing--Crankshaft--Lower Front, ".010" Oversize", gear

1шт.

26

K67514

BEARING

Main -Crankshaft--Lower Front, ".200" Oversize", gear

1шт.

26

K67522

Main Bearing--Crankshaft--Lower Front, ".030" Oversize", gear

1шт.

27

K67397

BEARING

Main -Crankshaft--Upper and Lower Centre, Standard, gear

2шт.

27

K67507

BEARING

Main -Crankshaft--Upper and Lower Centre, ".010" Oversize", gear

2шт.

27

K67515

BEARING

Main -Crankshaft--Upper and Lower Centre, ".200" Oversize", gear

2шт.

27

K67523

Main Bearing--Crankshaft--Upper and Lower Centre, ".030" Oversize", gear

2шт.

28

K67398

Main Bearing--Crankshaft--Upper Rear, Standard, gear

1шт.

28

K67508

BEARING

Main Crankshaft--Upper Rear, ".010" Oversize", gear

1шт.

28

K67516

BEARING

Main Crankshaft--Upper Rear, ".200" Oversize", gear

1шт.

28

K67524

Main Bearing--Crankshaft--Upper Rear, ".030" Oversize", gear

1шт.

29

K67467

BEARING

Main Crankshaft--Lower Rear, Standard, gear

1шт.

29

K67509

BEARING

Main-Crankshaft--Lower Rear, gear, ".010" Oversize"

1шт.

29

K67517

SPARE PART

Main Bearing--Crankshaft--Lower Rear, ".200" Oversize", gear

1шт.

29

K67525

Main Bearing--Crankshaft--Lower Rear, ".030" Oversize", gear

1шт.

30

K67494

WASHER

Thrust Crankshaft--Upper Standard, gear

2шт.

30

K67501

Thrust Washer--Crankshaft Upper ".005" Oversize", gear

2шт.

30

K67503

WASHER

Thrust Crankshaft Upper ".020" Oversize", gear

2шт.

31

K67495

WASHER

Thrust Crankshaft--Lower Standard, gear

2шт.

31

K67502

Thrust Washer--Crankshaft Lower ".005" Oversize", gear

2шт.

31

K67504

Thrust Crankshaft Lower ".020" Oversize", gear

2шт.

32

K623300

NUT

crankshaft gear

1шт.

33

K68057

Crankshaft (one piece casting), gear

1шт.

K19607

KEY

Woodruff No. 8, crackshaft gear

1шт.

34

K10602

crackshaft gear

1шт.

35

K10601

PINION

Gearwheel--Crankshaft, gear

1шт.

K19607

KEY

Woodruff No. 8, crackshaft gear

1шт.

36

K903050

V-BELT

Fan and Dynamo Drive, Crackshaft gear

1шт.

37

K961766

ALTERNATOR

12 Volt--Single Pole Lucas C.39, dynamo and bracket

1шт.

38

K15397

Bolt--5/16" ANF. 18 t.p.i.x7/8" L., Supplied with Adjuster Strap, dynamo and bracket

1шт.

K902420

NO LONGER SERVICED

Washer--Lucas 13706 Adjuster Strap Supplied, dynamo and bracket

1шт.

39

K900757

PULLEY

Drive--4" dia., dynamo and bracket

1шт.

40

K902233

Distance Piece--Front, dynamo and bracket

1шт.

41

K902218

Rear, dynamo and bracket

1шт.

43

K13059

5/16" B.S.F.x7 3/8" L., dynamo and bracket

1шт.

K14420

NO LONGER SERVICED

Nyloc Nut--5/16" B.S.F., dynamo and bracket

2шт.

44

K902223

SPARE PART

Adjuster Strap, dynamo and bracket

1шт.

45

K902219

Distance Piece--Strap, dynamo and bracket

1шт.

K19481

SPRING WASHER

Spring, 5/16" dia., dynamo and bracket

1шт.
