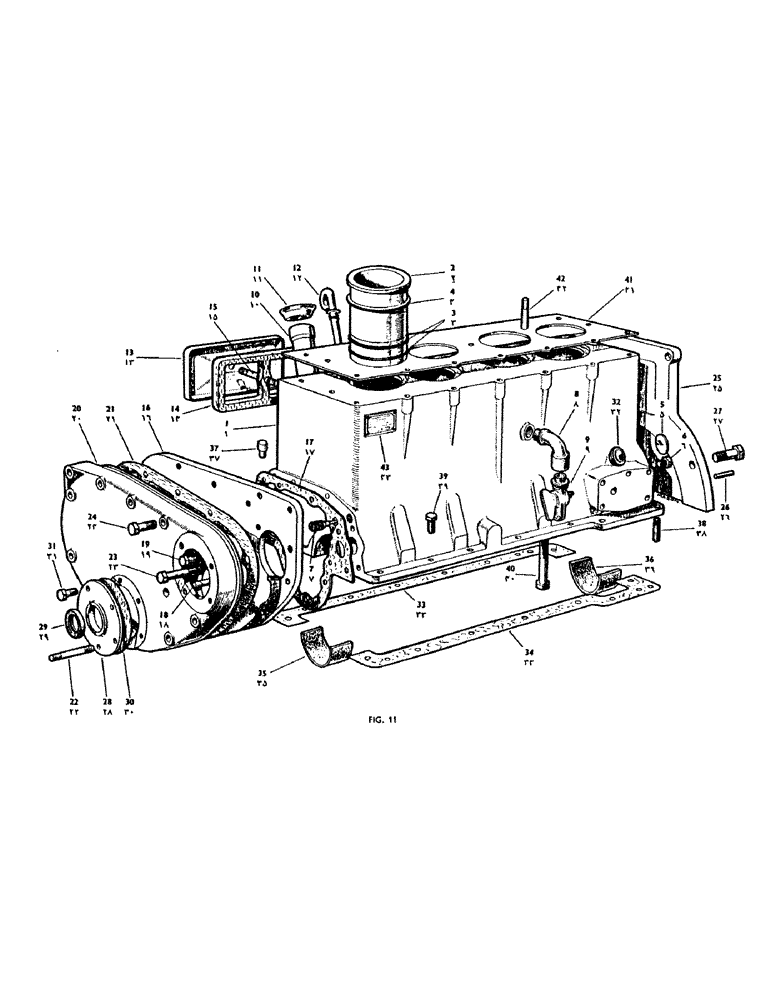

Запчасти Case IH 950 (030) - CYLINDER BLOCK, SLEEVES, PLATES AND COVERS (02) - ENGINE

1

K902191

SPARE PART

Cylinder Block (Less Sleeves)

1шт.

2

K67158

SLEEVE

Cylinder, 3 5/8" dia. bore

4шт.

3

K66385

O-RING,0.093" Thk x 3.875" ID, 65 Duro

Seal--Lower, for Cylinder Sleeve

8шт.

4

K10003

SEAL

Upper Cylinder Sleeve, .015", Thick Selective Assembly, See T.S.B. 438

1шт.

One Only per Cylinder As Required

1шт.

4

K86642

SEAL

Upper Cylinder Sleeve, .017", Thick Selective Assembly, See T.S.B. 438

1шт.

One Only per Cylinder As Required

1шт.

4

K35814

SEAL

Upper Cylinder Sleeve, .020", Thick, See T.S.B. 438

1шт.

One Only per Cylinder As Required

1шт.

4

K903879

SEAL

Upper Cylinder Sleeve, .024", Thick, See T.S.B. 438

1шт.

One Only per Cylinder As Required

1шт.

4

K903880

SEAL

Upper Cylinder Sleeve, .028", Thick, See T.S.B. 438

1шт.

One Only per Cylinder As Required

1шт.

5

K10023

PLUG

Welch Plug--Camshaft Bore

1шт.

6

K19581

PLUG

1/4" Gas--Sealing Oil Gallery Bore

1шт.

K15511

Rolled Copper--1/4" B.S.P.

1шт.

K12955

Bolt--Special, 7/16" B.S.F. x 2 1/4" L. Crankshaft Main Bearing Caps to Cylinder Block

2шт.

K12956

Bolt--Special, 7/16" B.S.F. x 2 1/2" L. Crankshaft Main Bearing Caps to Cylinder Block

2шт.

K12953

Bolt--Special, 1/2" B.S.F. x 2 1/4" L. Crankshaft Main Bearing Caps to Cylinder Block

4шт.

K12954

Bolt--Special, 1/2" B.S.F. x 2 1/2" L. Crankshaft Main Bearing Caps to Cylinder Block

2шт.

K13167

WASHER, LOCK

TabCrankshaft Main Bearing Caps to Cylinder Block

4шт.

K12398

Tab Crankshaft Main Bearing Caps to Cylinder Block

2шт.

7

K10019

OIL RESERVOIR

Jet--For Timing Gears--Oil Gallery Bore

1шт.

8

K31660

Elbow--Drain Tap

1шт.

K30421

SEALING WASHER

Fibre

2шт.

K19502

WASHER

Fibre 1/2" Gas

2шт.

9

K11245

Drain Tap

1шт.

10

K902117

Oil Filler

1шт.

11

K902118

CAP

Oil Filler

1шт.

12

K905244

Dipstick--Engine, From AG4.40U 118 AK4.40T 125

1шт.

K14573

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

From AG4.40U 118 AK4.40T 125

1шт.

13

K10029

COVER

Plate--Tappets

2шт.

14

K10030

GASKET

Cover Plate to Cylinder Block

2шт.

15

K10027

Stud--3/8" B.S.F. x 2 1/4" L. Cover Plate to Cylinder Block

2шт.

K19403

NUT

Plain, 3/8" B.S.F. Cover Plate to Cylinder Block

2шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

Fibre, 1/8" Gas Cover Plate to Cylinder Block

2шт.

16

K902232

Carrier Plate--Timing Gears

1шт.

17

K31816

GASKET

Carrier Plate to Cylinder Block

1шт.

18

K30745

SPARE PART

Dowel Carrier Plate to Cylinder Block

2шт.

19

K19220

BOLT

5/16" B.S.F. x 3/4" L. Carrier Plate to Cylinder Block

5шт.

K19481

SPRING WASHER

Spring, 5/16" dia. Carrier Plate to Cylinder Block

5шт.

20

K902231

Timing Case

1шт.

21

K33400

1шт.

22

K10622

Stud--5/16" B.S.F. x 3 1/2" L.

1шт.

23

K11567

Bolt--Fitting, 5/16" B.S.F. x 2 13/16" L. Timing, Serial Range: Case-Plate

1шт.

24

K11571

Bolt--5/16" B.S.F. x 2 7/16" L. Timing, Serial Range: Case-Plate

6шт.

K19402

NUT

Plain, 5/16" B.S.F. Timing, Serial Range: Case-Plate

1шт.

K19481

SPRING WASHER

Spring, 5/16" dia.

8шт.

25

K89384

Joint -Clutch Housing Starter Support

1шт.

26

K10047

Dowel Joint Plate to Cylinder Block

1шт.

27

K19240

SCREW

Bolt--3/8" B.S.F. x 7/8" L. Joint Plate to Cylinder Block

4шт.

K19482

SPRING WASHER

Spring, 3/8" dia. Joint Plate to Cylinder Block

4шт.

28

K88511

Housing--Oil Seal

1шт.

29

K14956

OIL SEAL,37.97mm ID x 60.63mm OD x 9.53mm Thk

Oil

1шт.

30

K10621

SPARE PART

Housing to Case and Block

1шт.

31

K19220

BOLT

5/16" B.S.F. x 3/4" L. Housing to Case and Block

4шт.

K19402

NUT

Plain, 5/16" B.S.F. Housing to Case and Block

1шт.

K19481

SPRING WASHER

Spring, 5/16" dia. Housing to Case and Block

5шт.

32

K903851

PRESSURE SWITCH

Oil Warning Switch

1шт.

K15030

WASHER

Copper, 1/8" Gas

1шт.

K904169

CONNECTOR, ELEC

Lucas--Switch Wire

1шт.

33

K10037

GASKET

R.H., fixing, Serial Range: bolts--engine-frame

1шт.

34

K10038

GASKET

L.H., fixing, Serial Range: bolts--engine-frame

1шт.

35

K10039

PACKING

Felt, Front, gaskets and fixing, Serial Range: bolts--engine-frame

1шт.

36

K10040

PACKING,3.97mm Thk

Felt, Rear, gaskets and fixing, Serial Range: bolts--engine-frame

1шт.

37

K31610

Dowel

2шт.

38

K10419

3/8" B.S.F. x 1 3/16" L., gaskets and fixing, Serial Range: bolts--engine-frame

1шт.

39

K19241

BOLT

3/8" B.S.F. x 1" L., gaskets and fixing, Serial Range: bolts--engine-frame

11шт.

40

K19259

Bolt--3/8" B.S.F. x 6 5/8" L.

4шт.

K19403

NUT

Plain, 3/8" B.S.F., gaskets and fixing, Serial Range: bolts--engine-frame

1шт.

K19482

SPRING WASHER

Spring, 3/8" dia., gaskets and fixing, Serial Range: bolts--engine-frame

16шт.

41

K34681

GASKET

Cylinder Head, gaskets and fixing, Serial Range: bolts--engine-frame

1шт.

42

K10402

Stud--1/2" B.S.F.x5 1/2" L. Cylinder Head, gaskets and fixing, Serial Range: bolts--engine-frame

6шт.

43

K10190

PLATE

Identification , to be fixed to Engine after, gaskets and fixing, Serial Range: bolts--engine-frame

1шт.

K11350

Screw--Rd. Hd. 6 B.A.x3/16" L., Plate to be fixed to Engine after, gaskets and fixing, Serial Range: bolts--engine-frame

4шт.
