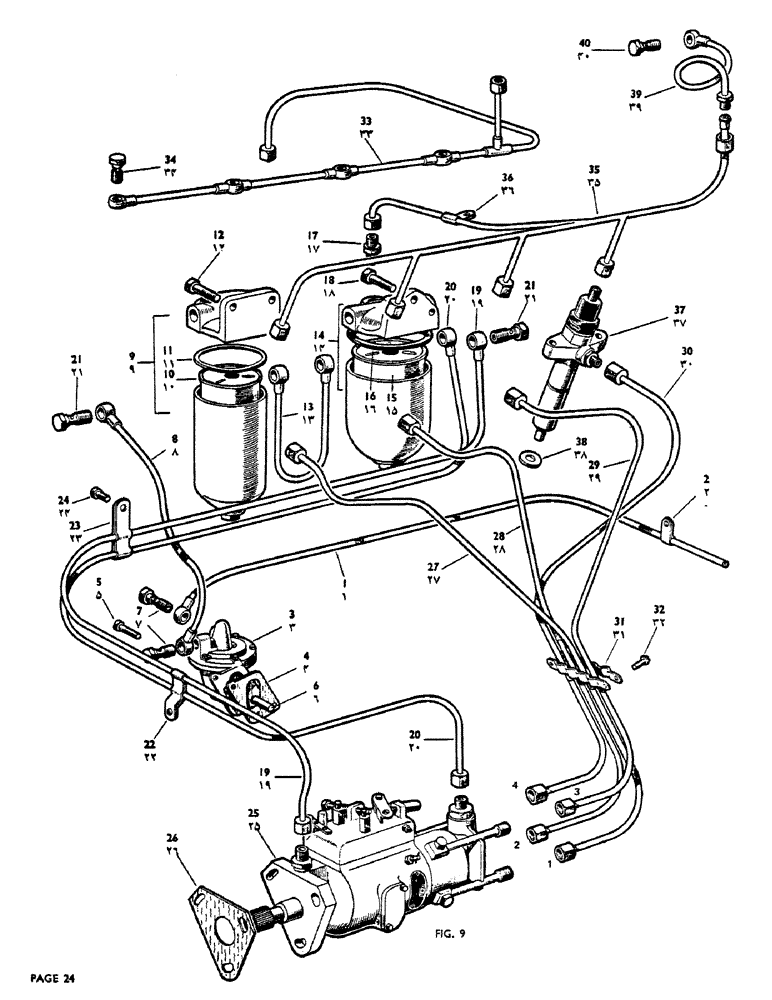

Запчасти Case IH 950 (024) - DISTRIBUTOR INJECTION PUMP, FILTERS, LIFT PUMP, PIPES AND NOZZLES (02) - ENGINE

1

K89488

PIPE

Fuel Pipe--Tap to Fuel Lift Pump

1шт.

2

K16368

Clip

1шт.

3

K902135

PUMP

Fuel Lift Pump--A.C. No. E/FP. 62542

1шт.

4

K902136

GASKET

1шт.

5

K19220

BOLT

--5/16" B.S.F. x 3/4" L.

2шт.

K19481

SPRING WASHER

Washer--Spring 5/16" dia.

2шт.

6

K87630

PUSH BUTTON

Push Rod

1шт.

7

K12723

Banjo Bolt Fuel Lift Pump Connections

2шт.

K12716

Washer Fuel Lift Pump Connections

2шт.

K12843

SPARE PART

Washer--1/4" B.S.P. Fuel Lift Pump Connections

2шт.

8

K903497

Fuel Pipe--Lift Pump to First Filter

1шт.

9

K903442

FILTER

Fuel Filter--Purolator

1шт.

9

K905218

FILTER

Fuel Filter--C.A.V. Ref. F.S. 5836040

2шт.

10

K68859

FILTER, ELEMENT

Element

1шт.

11

K960633

Sealing Washer

1шт.

12

K19256

Bolt--3/8" B.S.F. x 3/4" L., Serial Range: Filter-Head

2шт.

K19482

SPRING WASHER

Washer--Spring, 3/8" dia., Serial Range: Filter-Head

2шт.

K19240

SCREW

Bolt--3/8" B.S.F.x7/8" L.--For 905218

4шт.

13

K903502

PIPE

Fuel, Serial Range: Pipe--Filter-Filter

1шт.

14

K901382

FILTER, FUEL

Fuel Filter--C.A.V. F.4B/3

1шт.

15

K62594

FILTER, ELEMENT

Element

1шт.

16

K902180

SPARE PART

Sealing Washer

1шт.

17

K620007

ADAPTER

Adaptor--Leak-Off Pipe

1шт.

K87324

Washer

1шт.

18

K19241

BOLT

--3/8" B.S.F. x 1" L. Filter to Cylinder Head

3шт.

K19482

SPRING WASHER

Washer--Spring, 3/8" dia. Filter to Cylinder Head

3шт.

19

K902214

X

Fuel Pipe--Injector Pump Drain

1шт.

20

K902212

Fuel Pipe--Filter to Injector Pump

1шт.

21

K88762

NIPPLE, LUBE

Banjo Bolt--14 mm. Fuel, Serial Range: Pipes-Filters

5шт.

K66894

Washer Fuel, Serial Range: Pipes-Filters

10шт.

22

K621607

Clip--Fuel Pipes to Water Pump (See Fig. 18)

2шт.

23

K621611

Clip--Fuel Pipes to Cyl. Hd.

1шт.

24

K11544

Bolt--1/4" B.S.F. x 1/2" L.

1шт.

K19480

SPRING WASHER

--Spring, 1/4" dia.

1шт.

25

K902292

SPARE PART

Distributor Injector Pump--(C.A.V., D.P.A. 3242808), 65631 Onwards

1шт.

26

K68349

GASKET

--Pump to Carrier Plate

1шт.

27

K902293

LINE

Fuel Pipe--Distributor to No. 1 Cylinder

1шт.

28

K902295

Fuel Pipe--Distributor to No. 2 Cylinder

1шт.

29

K902297

SPARE PART

Fuel Pipe--Distributor to No. 3 Cylinder

1шт.

30

K902299

PIPE

Fuel Pipe--Distributor to No. 4 Cylinder

1шт.

31

K900844

CLAMP

Clip--Fuel Injector Pipes

2шт.

32

K12217

SCREW,0.185" x 5/8"

--Rd. Hd., 2 B.A. x 5/8" L. Clip Fixing

2шт.

K11109

NUT

--Plain, 2 B.A. Clip Fixing

2шт.

K19488

SPRING WASHER

--Spring, 3/16"

2шт.

33

K902244

LEAK

Off Pipe--Injector Nozzles and Filter

1шт.

34

K86417

NIPPLE, LUBE

Banjo Bolt--8 mm.

4шт.

K36374

WASHER

--Copper 8 mm. (C.A.V. 5339A543)

8шт.

35

K903393

Leak Off Pipe--Injector Nozzles and Filter, 65631 Onwards

1шт.

K905219

PIPE

Assembly--Leak Off--Use with 905218

1шт.

K623204

FITTING

Nut Part of 095219

5шт.

K19588

FERRULE

Olive

5шт.

36

K621610

CLIP

--Filter Leak Off Pipe

1шт.

37

K902104

Nozzle and Holder--(C.A.V. BDLL 140S/6276-BK BL 97S/5002)

4шт.

37

K904442

SPARE PART

Nozzle and Holder--(C.A.V. BDLL 140S/6276-BK BL 97S/5089), 65631 Onwards

4шт.

37

K902103

NOZZLE INJECTION

Nozzle only

4шт.

38

K901092

WASHER

Injector Washer--(C.A.V. Z 5339/401)

4шт.

39

K902301

Leak Off Pipe to Fuel Tank

1шт.

40

K86417

NIPPLE, LUBE

Banjo Bolt--8 mm.

1шт.

K36374

WASHER

--Copper 8 mm. (C.A.V. 5339A/543)

2шт.
