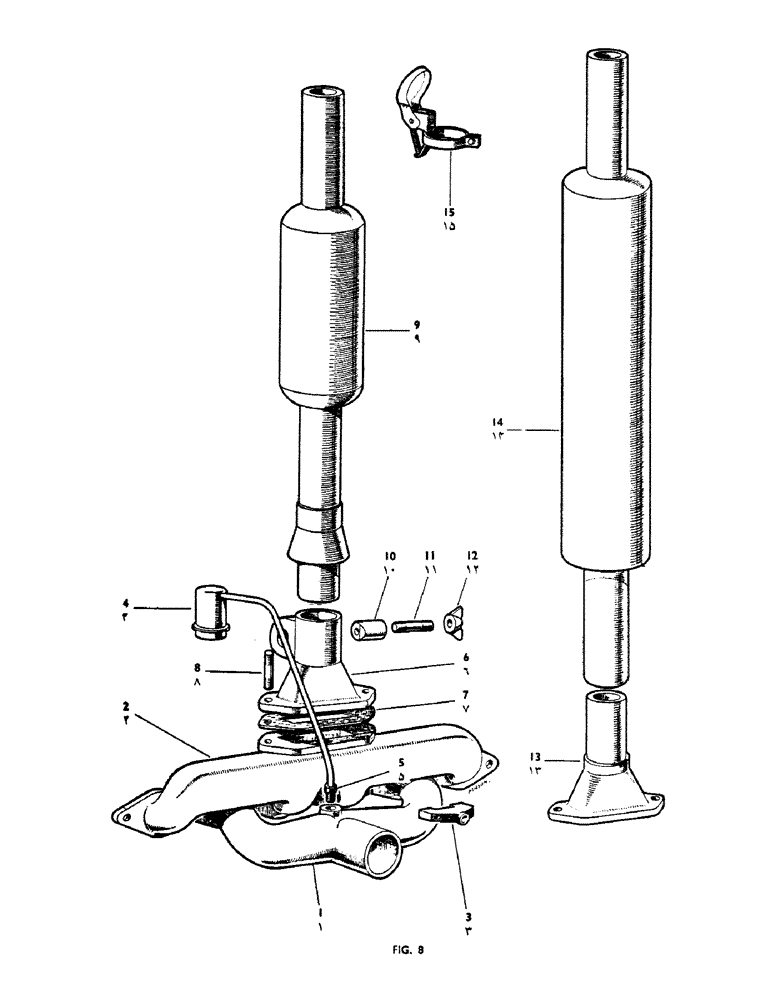

Запчасти Case IH 950 (022) - MANIFOLDS AND EXHAUST PIPE (02) - ENGINE

1

K87991

MANIFOLD

--Air Inlet (C.I. Alternative 89743)

1шт.

2

K31799

Manifold--Exhaust

1шт.

3

K31783

Clamp Manifolds

4шт.

4

K88064

Breather--Assembly

1шт.

5

K19931

GROMMET

--For Breather Assembly

1шт.

6

K88519

Flange--Exhaust Pipe

1шт.

7

K68327

GASKET

1шт.

8

K625303

STUD

--3/8" B.S.F. x 1 5/16" L.

2шт.

K19423

NUT

--Plain, 3/8" B.S.F. (Brass)

2шт.

K19482

SPRING WASHER

Washer--Spring, 3/8" dia.

2шт.

9

K89671

SPARE PART

Exhaust Silencer

1шт.

10

K88518

Bush--Silencer

1шт.

11

K24714

Stud--5/16" B.S.F. x 2 1/4" L.

1шт.

12

K24713

Wing Nut--5/16" B.S.F.

1шт.

K19481

SPRING WASHER

Washer--Spring, 5/16" dia.

1шт.

13

K905165

FLANGE

--Exhaust Pipe From Tractor 68388 inclusive

1шт.

14

K905166

SPARE PART

Exhaust--Silencer From Tractor 68388 inclusive

1шт.

15

K35361

Raintrap

1шт.
