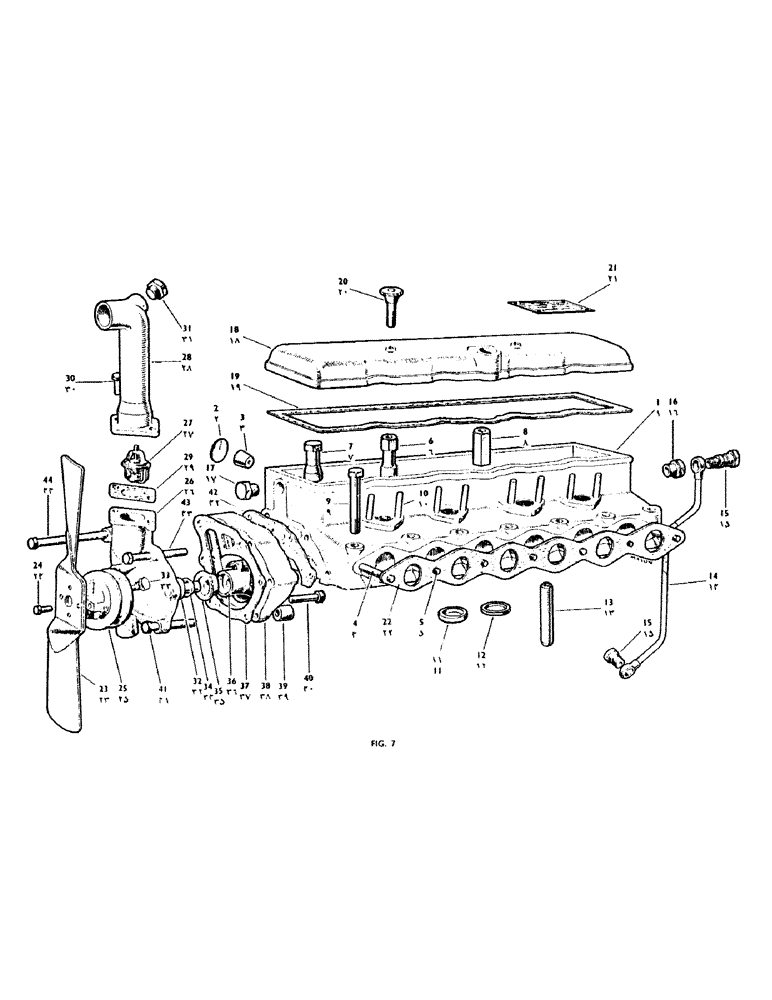

Запчасти Case IH 950 (018) - CYLINDER HEAD AND ROCKER SHAFT, WATER PUMP AND FAN (02) - ENGINE

1

K904114

Cylinder Head--with Valve Guides and inserts, Includes Refs. 2, 3, 11, 12 and 13

1шт.

1

K904115

Cylinder Head--with Valves Assembled

1шт.

2

K11272

PLUG

Welch

5шт.

3

K903485

Jet Plug

4шт.

4

K10660

STUD

Manifold, 3/8" B.S.F.x 1 5/16" L.

3шт.

5

K31784

Manifold, 3/8" B.S.F. x 1 3/4" L.

4шт.

K19423

NUT

Plain, 3/8" B.S.F. (Brass)

3шт.

K31785

Special

4шт.

6

K901915

Elongated Nut Head, Serial Range: Fixing-Block

2шт.

7

K34482

Special 1/2" B.S.F. Head, Serial Range: Fixing-Block

7шт.

8

K37957

Lifting

1шт.

9

K19295

1/2" B.S.F. x 4" L.

7шт.

10

K31789

5/16" B.S.F.

8шт.

K19402

NUT

Plain, 5/16" B.S.F. Injector Fixing

8шт.

K19481

SPRING WASHER

Spring, 5/16" dia. Injector Fixing

8шт.

11

K61493

Exhaust Seat Insert

4шт.

12

K62034

INSERT

Inlet Seat Insert

4шт.

13

K31674

LOCK VALVE

Guide Standard

8шт.

K36236

".005" oversize."

1шт.

14

K35943

Oil Block to Cylinder Head

1шт.

15

K30131A

X

Banjo Bolt (Code No. 00024)

2шт.

K14674

WASHER

Copper

2шт.

K15030

WASHER

Copper

2шт.

16

K11973

Flanged--Rocker Shaft Oil Feed

1шт.

17

K19590

PLUG

3/8" Gas--Shaft End Sealing

1шт.

K19500

GASKET

Washer--Fibre

2шт.

18

K31684

Cylinder Head

1шт.

19

K902282

GASKET

1шт.

20

K901918

Thumb Nut--3/8" B.S.F. (alternative 60826) Cover to Cylinder Head

2шт.

K626521

SEALING WASHER

Washer Cover to Cylinder Head

2шт.

21

K36446

Instruction Plate Discontinued

1шт.

K11405

RIVET

1/8" dia. x 3/8" L. Discontinued

4шт.

22

K31811

GASKET

Manifolds

1шт.

K902192

PUMP

Complete (Non-adjustable Fan Pulley), Comprising Refs. 2, 3 and 7 - 10, water

1шт.

23

K30668

FAN

--(2 Blade), water pump

1шт.

24

K19256

Bolt--3/8" B.S.F. x 3/4" L., water pump and fan

4шт.

K19482

SPRING WASHER

Spring, 3/8" dia., water pump and fan

4шт.

25

K68056

FAN

water pump and fan

1шт.

K622251

FITTING

Greaser--Straight For Shaft and Bearing, water pump and fan

1шт.

26

K902220

BODY

water pump and fan

1шт.

27

K900368

THERMOSTAT

water pump and fan

1шт.

28

K88825

Outlet, water pump and fan

1шт.

29

K30653

GASKET

Outlet Pipe to Pump Body, water and fan

1шт.

30

K19222

BOLT

-5/16" B.S.F. x 1" L. Outlet Pipe to Pump Body, water fan

2шт.

K19481

SPRING WASHER

Spring, 5/16" dia. Outlet Pipe to Pump Body, water and fan

2шт.

31

K619525

PLUG

5/8" U.N.F., water pump and fan

1шт.

K626444

WASHER

Copper, water pump and fan

1шт.

32

K11651

BEARING

Shaft and Impeller, water pump and fan

1шт.

33

K11672

SCREW,3/64" x 19/32"

Locating Bearing in Pump Body, water pump and fan

1шт.

K11673

WASHER

Tab, water pump and fan

1шт.

34

K11652

SLINGER

Water Thrower (Supplied with Bearing), water pump and fan

1шт.

35

K68949

SEAL

Gland Super S.C.D. 296/50, water pump and fan

1шт.

36

K902131

TURBINE

Impeller, water pump and fan

1шт.

37

K11660

GASKET

Support Plate to Pump Body, water and fan

1шт.

38

K901912

SUPPORT

Plate--Pump, water and fan

1шт.

39

K30450

Distance Piece--Fuel Pipe Clip, water pump and fan

1шт.

40

K19241

BOLT

3/8" B.S.F. x 1" L. Pump Body to Support Plate, water and fan

1шт.

41

K602701

BOLT

3/8" B.S.F. x 2 1/4" L. Pump Body to Support Plate, water and fan

1шт.

K19403

NUT

Plain, 3/8" B.S.F. Pump Body to Support Plate, water and fan

1шт.

K19482

SPRING WASHER

Spring, 3/8" dia., water pump and fan

2шт.

42

K901913

GASKET,0.79mm Thk

Support Plate and Adjusting Strap to Cylinder Head, water pump and fan

1шт.

43

K19252

3/8" B.S.F. x 2 3/4" L. Support Plate and Adjusting Strap to Cylinder Head, water pump and fan

3шт.

44

K11254

Bolt--3/8" B.S.F. x 4 1/2" L. Support Plate and Adjusting Strap to Cylinder Head, water pump and fan

1шт.

K19482

SPRING WASHER

Spring, 3/8" dia., water pump and fan

4шт.

45

K903213

PACKAGE, REPAIR

Water Pump Repair Pack, and fan

1шт.
