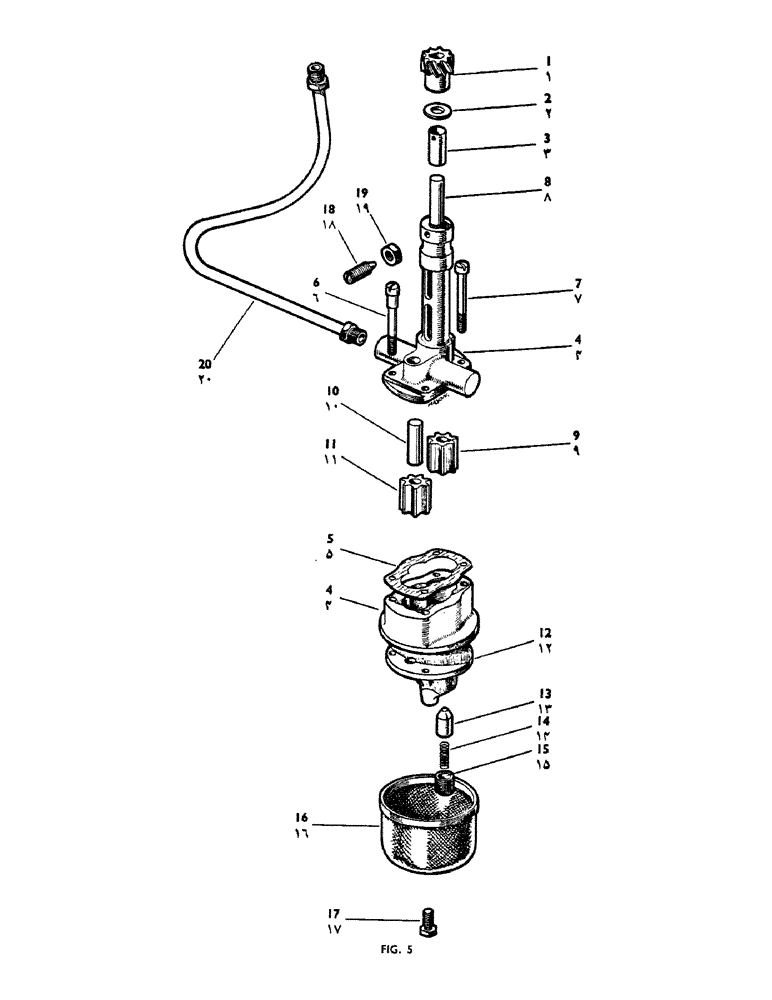

Запчасти Case IH 950 (014) - OIL PUMP AND FEED PIPE (02) - ENGINE

K20529

BEARING

Oil Pump--Single Outlet--Complete, Comprising Refs. 1 - 17

1шт.

1

K904046

SPARE PART

Spiral Pinion (Fully interchangeable with 65503), Diesel only

1шт.

K19604

KEY

--Woodruff No. 5

1шт.

2

K12041

Thrust Washer

1шт.

3

K30016

BUSHING

Bush

1шт.

4

K63044

Bracket and Gear Housing (Single Outlet) (Not serviced separately)

1шт.

6

K12037

Bolt--Special Fitting, 1/4" B.S.F. x 2" L. Cover to Housing Bracket and, Serial Range: Housing-Cover

2шт.

7

K12038

BOLT

--1/4" B.S.F. x 2" L. Cover to Housing Bracket and, Serial Range: Housing-Cover

2шт.

K19401

NUT

--Plain, 1/4" B.S.F. Cover to Housing Bracket and, Serial Range: Housing-Cover

4шт.

K19480

SPRING WASHER

--Spring, 1/4" dia. Cover to Housing Bracket and, Serial Range: Housing-Cover

4шт.

8

K37547

PUMP

Shaft--Drive Gear

1шт.

9

K12045

GEAR

Driving Rotor

1шт.

K19604

KEY

--Woodruff No. 5

1шт.

10

K12006

PLUG

Shaft--Driven Gear

1шт.

11

K12046

PLUG

Driven Rotor

1шт.

K60365

SCREW

Relief Valve--Complete, Comprising Refs. 12 - 15

1шт.

12

K12071

SPARE PART

Cover--Housing

1шт.

13

K67461

PLUNGER

--Conical Type

1шт.

14

K12961

SPRING

1шт.

15

K30013

ADJUSTER

Adjusting Screw

1шт.

16

K12013

FILTER

Gauze Filter

1шт.

17

K11544

Bolt--1/4" B.S.F. x 1/2" L. Gauze, Serial Range: Filter-Cover

1шт.

K19480

SPRING WASHER

--Spring, 1/4" dia. Gauze, Serial Range: Filter-Cover

1шт.

18

K12042

Screw--Locating, Serial Range: Bracket-Block

1шт.

19

K19443

Locknut--7/16" B.S.F.

1шт.

20

K86595

OIL RESERVOIR

Oil, Serial Range: Pipe--Pump-Cleaner

1шт.
