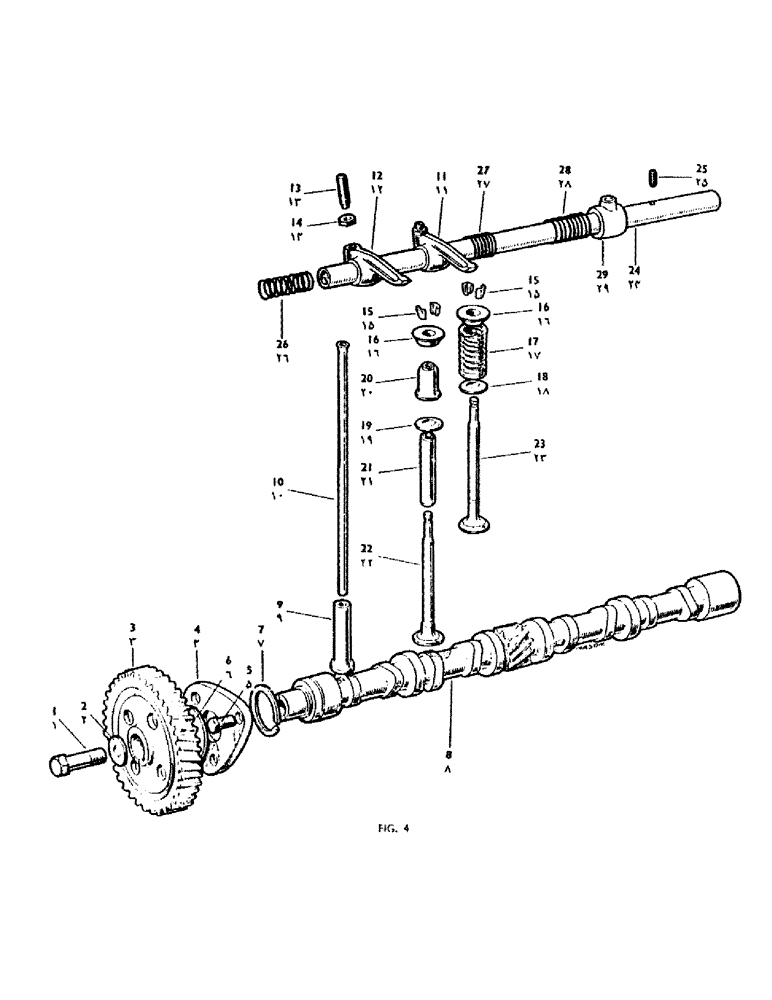

Запчасти Case IH 950 (012) - CAMSHAFT AND GEAR, TAPPETS, PUSH RODS, ROCKERS AND VALVES (02) - ENGINE

1

K11106

Bolt--Special, 7/16" B.S.F. x 2" L.

1шт.

2

K66382

WASHER

--Special, Plain 7/16" dia.

1шт.

3

K31814

GEAR WHEEL

Gear--Camshaft (60 teeth)

1шт.

K19607

KEY

--Woodruff No. 8

1шт.

4

K30640

Plate--Locating Camshaft

1шт.

5

K19223

NO LONGER SERVICED

Bolt 5/16" B.S.F. x 1 1/8" L. Locating Plate to Timing Plate

3шт.

K19481

SPRING WASHER

Washer--Spring, 5/16" dia. Locating Plate to Timing Plate

3шт.

6

K30410

WASHER

Thrust Washer

1шт.

7

K11037

Circlip

1шт.

8

K87311

SHAFT

Camshaft

1шт.

9

K901137

TAPPET

8шт.

10

K83973

PUSH ROD

--Complete

8шт.

11

K36271

Valve Rocker--L.H. c/w Bush

4шт.

12

K36272

ROCKER

Valve Rocker--R.H. c/w Bush

4шт.

K11060A

BUSHING

Bush--Valve Rocker (Code No. 00017)

8шт.

13

K89811

Adjusting Screw--3/8" B.S.F.

8шт.

14

K19442

NUT

Locknut--3/8" B.S.F.

8шт.

15

K11058

LOCK VALVE

Cotter--Valve

16шт.

16

K11057

Collar--Valve

8шт.

17

K11033

SPRING

--Valve

8шт.

18

K11029

Bottom Cup--Valve Spring--Exhaust Valves

4шт.

19

K64459

Bottom Cup--Valve Spring--Inlet Valves

4шт.

20

K64424

SEAL

Rubber Washer--Valve Guides--Inlet Valves

4шт.

21

K31674

LOCK VALVE

Guide--Valve, Located in Cylinder Head

8шт.

22

K30053

VALVE

--Inlet

4шт.

23

K64402

VALVE

--Exhaust

4шт.

24

K31679

SHAFT

--Rocker

1шт.

25

K11016

SCREW

--Locating, Serial Range: Shaft-Head

2шт.

26

K31683

Spring--Valve Rockers--End Locating

2шт.

27

K11017

SPRING

--Valve Rockers--Intermediate

2шт.

28

K30334

Spring--Valve Rockers--Centre Locating

2шт.

29

K30335

Banjo--Oil Relief--Rocker Shaft

1шт.
