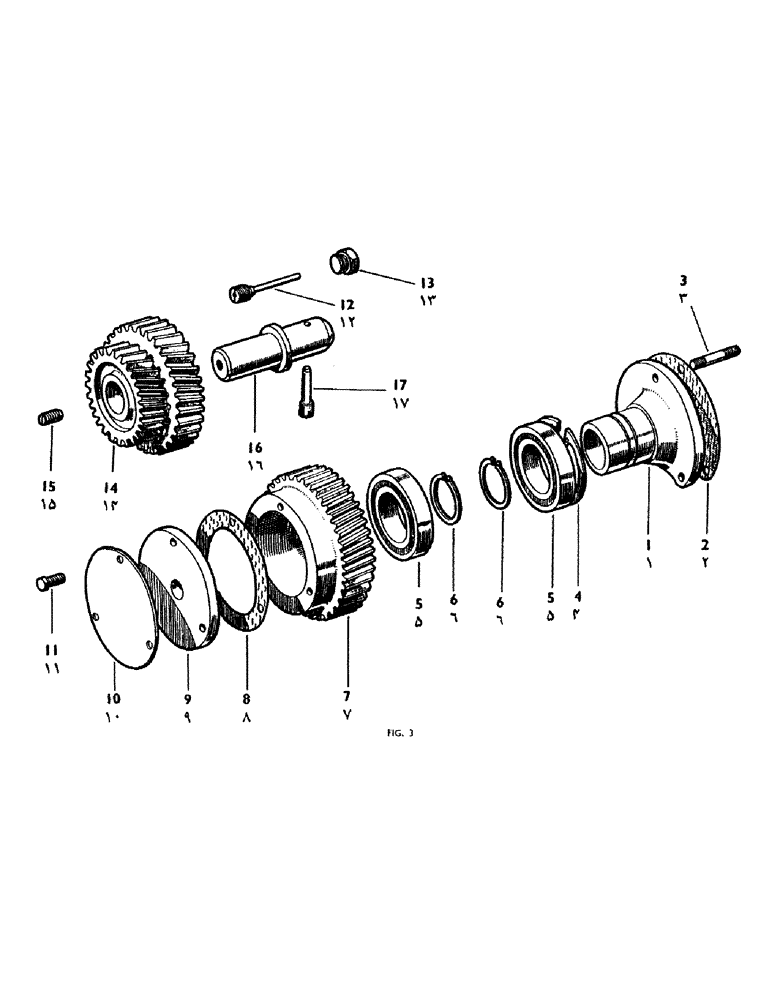

Запчасти Case IH 950 (010) - DRIVE GEAR AND SUPPORT, FUEL PUMP (02) - ENGINE

1

K87076

Support Flange

1шт.

2

K87895

GASKET

Pump and Support Flange to Carrier Plate

1шт.

3

K24795

DOWEL

Stud--5/16" B.S.F. x 1 5/8" L. Pump and Support Flange to Carrier Plate

3шт.

K19402

NUT

Plain, 5/16" B.S.F. Pump and Support Flange to Carrier Plate

3шт.

K19481

SPRING WASHER

-Spring, 5/16" dia. Pump and Support Flange to Carrier Plate

3шт.

K19471

WASHER

Plain, 5/16" dia. Pump and Support Flange to Carrier Plate

3шт.

4

K17023

CIRCLIP

3" dia. Internal

1шт.

5

K19149

BEARING, BALL

2шт.

6

K12922

RING, SNAP

Circlip--1 3/4" dia. External

2шт.

7

K87077

SPARE PART

Drive Gear (48T)

1шт.

9

K87078

Coupling Flange--Pump to Drive Gear

1шт.

10

K87085

Retaining

1шт.

11

K14514

Special, 5/16" B.S.F. x 5/8" L.

3шт.

12

K10019

OIL RESERVOIR

Jet--for Timing Gears--Oil Gallery--Cyl. Block

1шт.

13

K19581

PLUG

1/4" Gas--Oil Gallery--Cyl. Block

1шт.

K15511

Rolled Copper 1/4" Gas

1шт.

14

K903927

PINION

Intermediate Gear--(32/40T)

1шт.

15

K12253

Plug--Intermediate Gear Shaft

1шт.

16

K66706

Intermediate Gear

1шт.

17

K66709

PIN

Locating -Shaft to Block, intermediate gear

1шт.
