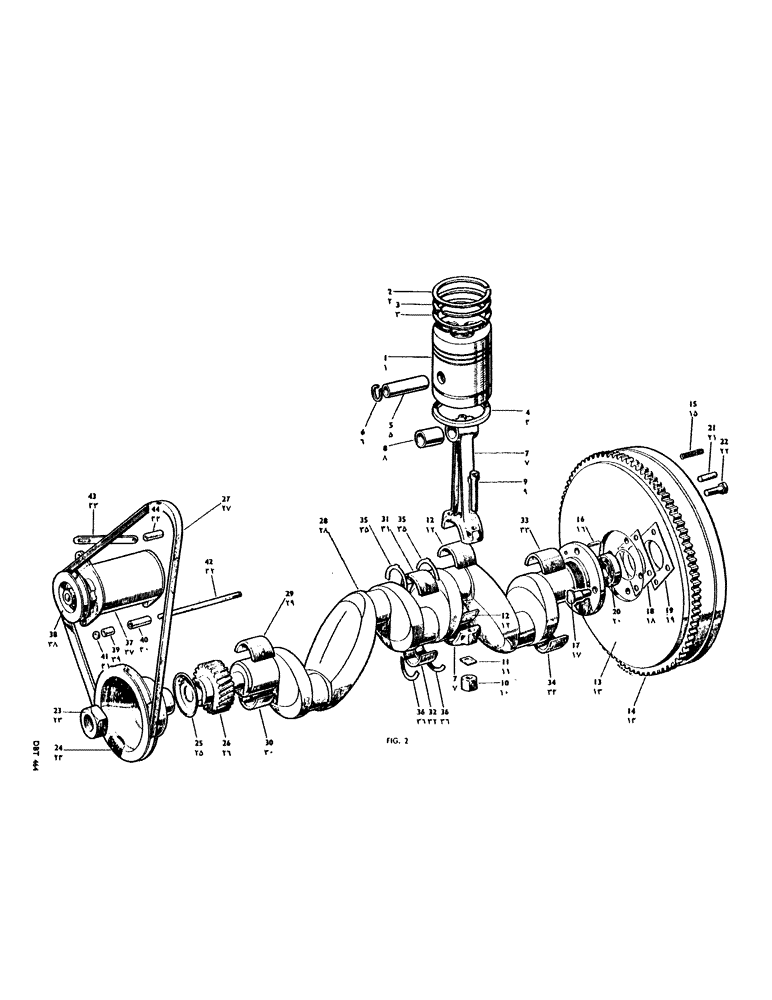

Запчасти Case IH 950 (006) - PISTONS AND CONNECTING RODS, FLYWHEEL, CRANKSHAFT AND DYNAMO (02) - ENGINE

K900806

PISTON

--Diesel 3 5/8", "Standard 3 5/8" dia. Piston" dia.--Complete comprising

4шт.

1

K900800

PISTON

--Diesel, 3 5/8" dia. (Not supplied separately), "Standard 3 5/8" dia. Piston"

4шт.

2

K64974

SPARE PART

Ring--Compression Ring No. 1 "Standard 3 5/8" dia. Piston"

4шт.

3

K64975

RING, PISTON

Ring--Compression Ring No. 2 and No. 3, "Standard 3 5/8" dia. Piston"

8шт.

4

K83789

SCRAPER

Ring--Scraper "Standard 3 5/8" dia. Piston"

4шт.

5

K37023

PIN

Gudgeon Pin "Standard 3 5/8" dia. Piston"

4шт.

6

K34501

RING, SNAP

Circlip--Gudgeon Pin "Standard 3 5/8" dia. Piston"

8шт.

2

K65035

NO LONGER SERVICED

Ring--Compression No. 1 ".010" Oversize" 3 5/8" dia. piston--oversize equipment

4шт.

3

K65036

RING, PISTON

Ring--Compression No. 2 and No. 3 ".010" Oversize"

8шт.

4

K89074

SCRAPER

Ring--Scraper, ".010" Oversize" (Services Standard Piston Part No. 900800)

4шт.

K900809

PISTON

--Diesel--3 5/8", ".020" Oversize" dia.--Complete comprising

4шт.

1

K900803

SPARE PART

Piston--Diesel--3 5/8" dia.--(Not supplied separately), ".020" Oversize"

4шт.

2

K65030

Ring--Compression No. 1 ".020" Oversize"

4шт.

3

K65031

PISTON

Ring--Compression No. 2 and No. 3 ".020" Oversize"

8шт.

4

K89076

RING

--Scraper ".020" Oversize"

4шт.

5

K37023

PIN

Gudgeon Pin Standard

4шт.

6

K34501

RING, SNAP

Circlip--Gudgeon Pin Standard

8шт.

K900810

Piston--Diesel--3 5/8" dia.--Complete comprising

4шт.

1

K900804

Piston--Diesel 3 5/8" dia. (Not supplied separately), ".040" Oversize"

4шт.

2

K65033

Ring--Compression No. 1 ".040" Oversize"

4шт.

3

K65034

Ring--Compression No. 2 and No. 3 ".040" Oversize"

8шт.

4

K89078

PISTON ASSY.

Ring--Scraper ".040" Oversize"

4шт.

5

K37023

PIN

Gudgeon Pin Standard

4шт.

6

K34501

RING, SNAP

Circlip--Gudgeon Pin Standard

8шт.

K36268

SPARE PART

Connecting Rod and Cap Assembly Comprising Refs. 7 - 11

4шт.

7

K66288

SPARE PART

Connecting Rod and Cap (order 36268)

4шт.

8

K31669

BEARING

--Small End

4шт.

9

K31797

BOLT

Conn. Rod

8шт.

10

K31798

NUT

Conn. Rod

8шт.

11

K10618

Tab

8шт.

12

K901649

HALF-BEARING, CRANKS

Big End--Upper and Lower, Standard (Halves)

8шт.

12

K902255

BEARING

Big End--Upper and Lower, ".010" Undersize" (Halves)

8шт.

12

K902256

BEARING

Big End--Upper and Lower, ".020" Undersize" (Halves)

8шт.

13

K89319

Flywheel and Starter Ring--Complete, Livedrive (Double Plate Clutch)

1шт.

K900717

Flywheel and Starter Ring (Single, Non-Livedrive Plate Clutch)

1шт.

14

K36134

GEAR

Starter Ring

1шт.

15

K13226

SPRING

3шт.

16

K10629

PIN

Dowel

1шт.

17

K10608

Flywheel

4шт.

K19404

NUT

Plain--7/16" B.S.F.

4шт.

18

K10623

BRAKE

Tab Washer

1шт.

19

K89686

Locating Disc

1шт.

20

K19167

BALL BEARING,22.23mm ID x 50.8mm OD x 14.29mm W

Ball, Hoff. L.S.9P

1шт.

21

K35840

PIN

Dowel, Serial Range: Clutch-Flywheel

2шт.

22

K19242

BOLT

3/8" B.S.F. x 1 1/8" L., Serial Range: Clutch-Flywheel

6-9шт.

K19482

SPRING WASHER

Spring 3/8" dia., Serial Range: Clutch-Flywheel

6-9шт.

23

K623300

NUT

Crankshaft

1шт.

24

K68057

Crankshaft. Fan and Dynamo Drive (6" dia.)

1шт.

K19607

KEY

Woodruff No. 8

1шт.

25

K10602

Flinger--Oil

1шт.

26

K34460

Crankshaft

1шт.

K19607

KEY

Woodruff No. 8

1шт.

27

K903050

V-BELT

Fan and Dynamo Drive (Wedge Type)

1шт.

28

K902199

CRANKSHAFT

Complete with Bearings and Thrust Washers (Crankshaft 66821)

1шт.

29

K67396

Crankshaft Main--Upper, Standard Front

1шт.

30

K901650

BEARING,CON.ROD

Crankshaft Main--Lower, Standard Front

1шт.

31

K67397

BEARING

Crankshaft Main--Upper, Standard Centre

1шт.

32

K901651

BEARING

Crankshaft Main--Lower, Standard Centre

1шт.

33

K67398

Bearing--Crankshaft Main--Upper, Standard Rear

1шт.

34

K901652

BEARING

Crankshaft Main--Lower, Standard Rear

1шт.

35

K67494

WASHER

Thrust--Crankshaft Upper Standard

2шт.

36

K67495

WASHER

Thrust--Crankshaft Lower Standard

2шт.

29

K67505

BEARING

Crankshaft Main--Upper, ".010" Oversize" Front, equipment

1шт.

30

K902246

SEGMENT

bearing--Crankshaft Main--Lower, ".010" Oversize" Front, equipment

1шт.

31

K67507

BEARING

Crankshaft Main--Upper, ".010" Oversize" Centre, equipment

1шт.

32

K902247

BUSHING

Bearing--Crankshaft Main--Lower, ".010" Oversize" Centre, equipment

1шт.

33

K67508

BEARING

Crankshaft Main--Upper, ".010" Oversize" Rear, equipment

1шт.

34

K902248

JOURNAL

Bearing--Crankshaft Main--Lower, ".010" Oversize" Rear, equipment

1шт.

29

K67513

BEARING

Crankshaft Main--Upper, ".020" Oversize" Front, equipment

1шт.

30

K902249

JOURNAL

Bearing--Crankshaft Main--Lower, ".020" Oversize" Front, equipment

1шт.

31

K67515

BEARING

Crankshaft Main--Upper, ".020" Oversize" Centre, equipment

1шт.

32

K902250

HALF BEARING

Crankshaft Main--Lower, ".020" Oversize" Centre, equipment

1шт.

33

K67516

BEARING

Crankshaft Main--Upper, ".020" Oversize" Rear, equipment

1шт.

34

K902251

BEARING

Crankshaft Main--Lower, ".020" Oversize" Rear, equipment

1шт.

35

K67501

Washer--Thrust--Crankshaft Upper ".005" Oversize", equipment

2шт.

36

K67502

Washer--Thrust--Crankshaft Lower ".005" Oversize", equipment

2шт.

35

K67503

WASHER

thrust--Crankshaft Upper ".020" Oversize", equipment

2шт.

36

K67504

Thrust--Crankshaft Lower ".020" Oversize", equipment

2шт.

37

K961766

ALTERNATOR

Dynamo--12 Volt Lucas C39 P/2, support

1шт.

38

K900757

PULLEY

Dynamo Drive (Lucas) 4" dia., support

1шт.

K15397

Bolt--5/16" ANF 18 TPIx7/8" L. Supplied with Dynamo, and support

1шт.

39

K902217

Distance Piece--Front, dynamo and support

1шт.

40

K902218

Distance Piece--Rear, dynamo and support

1шт.

42

K13059

5/16" B.S.F. x 7 3/8" L., dynamo and support

1шт.

K14420

NO LONGER SERVICED

Nyloc Nut--5/16" B.S.F., dynamo and support

2шт.

43

K902223

SPARE PART

Adjuster Strap, dynamo and support

1шт.

44

K902219

Distance Piece--Strap, dynamo and support

1шт.

K19481

SPRING WASHER

Spring, 5/16" dia., dynamo and support

1шт.
