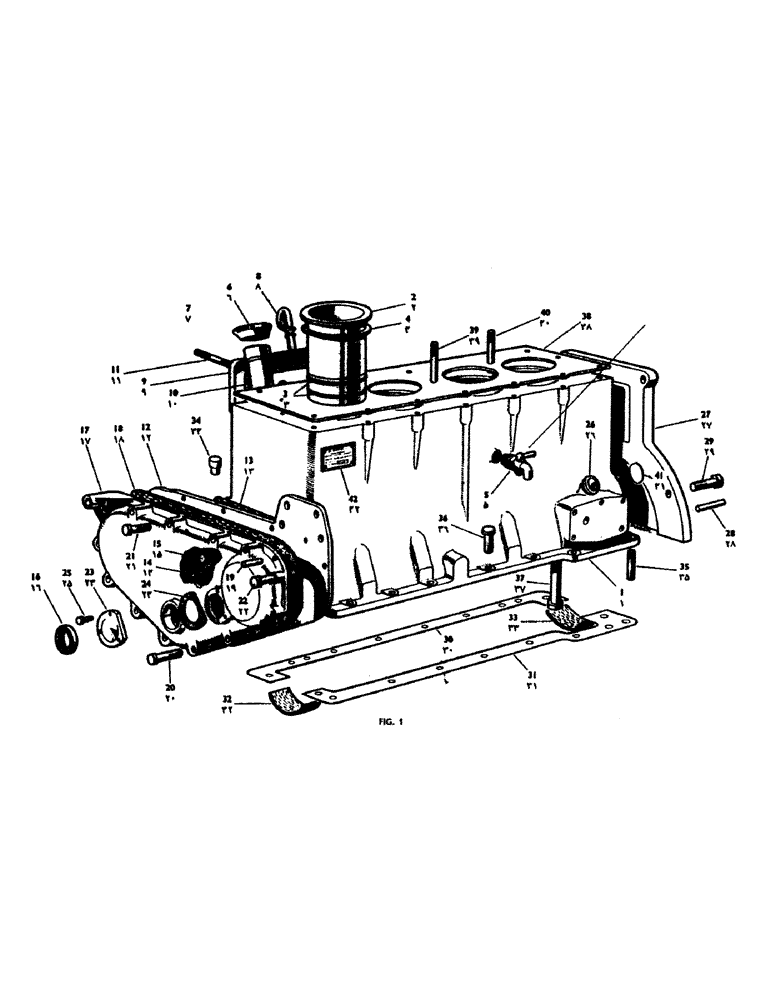

Запчасти Case IH 950 (002) - CYLINDER BLOCK, SLEEVES, COVERS (02) - ENGINE

1

K902190

BLOCK

Diesel Cylinder (less Sleeves)

1шт.

Fitted with Dowelled Heavy Duty Main Bearing Caps and long waisted Bolts 66481/82 Services 3 5/8" Bore Cylinder Sleeves 902001 and Lower Seals 66385

1шт.

2

K902001

CYLINDER

Sleeve--3 5/8" dia. Bore Bonderised

4шт.

3

K66385

O-RING,0.093" Thk x 3.875" ID, 65 Duro

Seal--Lower Sleeve (3/32" dia. Rubber)

8шт.

4

K903879

SEAL

Upper Sleeve--.024" Thick Service Requirements only

1шт.

4

K903880

SEAL

Upper Sleeve--.028" Thick Service Requirements only

1шт.

K66481

BOLT

Waisted 7/16" B.S.F. x 3 1/8" L. Crankshaft Main Bearing Caps to Cylinder Block

6шт.

K66482

BOLT

Waisted 1/2" B.S.F. x 3 1/8" L. Crankshaft Main Bearing Caps to Cylinder Block

4шт.

K15217

PIN

Dowel Crankshaft Main Bearing Caps to Cylinder Block

6шт.

K13167

WASHER, LOCK

Tab Crankshaft Main Bearing Caps to Cylinder Block

4шт.

K12398

Crankshaft Main Bearing Caps to Cylinder Block

2шт.

5

K89737

NO LONGER SERVICED

Drain Tap

1шт.

K30421

SEALING WASHER

Sealing

1шт.

6

K902118

CAP

Oil Filler

1шт.

7

K902117

Oil Filler

1шт.

8

K905244

Dipstick AD4.40T 8147 AD4.40U 5425

1шт.

K14573

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

AD4.40T 8147 AD4.40U 5425

1шт.

9

K10029

COVER

Plate--Tappets

2шт.

10

K10030

GASKET

Cover Plate to Cylinder Block

2шт.

11

K10027

Stud Cover Plate to Cylinder Block

2шт.

K19403

NUT

Plain, 3/8" B.S.F.

2шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

Fibre, 1/8" Gas

2шт.

12

K902115

Carrier Timing Gears

1шт.

13

K31816

GASKET

Carrier Plate to Cylinder Block

1шт.

14

K30745

SPARE PART

Dowel Carrier Plate to Cylinder Block

2шт.

15

K19220

BOLT

5/16" B.S.F. x 3/4" L. Carrier Plate to Cylinder Block

6шт.

K19481

SPRING WASHER

Spring, 5/16" dia. Carrier Plate to Cylinder Block

6шт.

16

K14956

OIL SEAL,37.97mm ID x 60.63mm OD x 9.53mm Thk

Oil for Timing Cover

1шт.

17

K902116

Timing Gears

1шт.

18

K68337

GASKET

Timing Cover to Carrier Plate

1шт.

19

K30745

SPARE PART

Dowel Timing Cover to Carrier Plate

2шт.

20

K19230

BOLT

5/16" B.S.F. x 2" L. Timing Cover to Carrier Plate

5шт.

21

K19229

SPARE PART

Bolt--5/16" B.S.F. x 1 7/8" L. Timing Cover to Carrier Plate

6шт.

22

K19233

Bolt--5/16" B.S.F. x 2 3/4" L. Timing Cover to Carrier Plate

3шт.

K19481

SPRING WASHER

Spring, 5/16" dia.

14шт.

23

K87083

Support Bracket--Intermediate Gear Shaft

1шт.

25

K19220

BOLT

5/16" B.S.F. x 3/4" L. Bracket to Timing Cover

3шт.

K86231

Leakproof, 5/16" dia. Bracket to Timing Cover

3шт.

26

K903851

PRESSURE SWITCH

Oil Warning Switch

1шт.

K15030

WASHER

Copper 1/8" Gas

1шт.

K904169

CONNECTOR, ELEC

Lucas--Switch Wire

1шт.

27

K89384

Starter Motor Support

1шт.

28

K10047

Dowel, Serial Range: Plate-Block

1шт.

29

K19240

SCREW

Bolt--3/8" B.S.F. x 7/8" L., Serial Range: Plate-Block

4шт.

K19482

SPRING WASHER

Spring, 3/8" dia., Serial Range: Plate-Block

4шт.

30

K10037

GASKET

R.H., fixing, Serial Range: bolts--engine-frame

1шт.

31

K10038

GASKET

L.H., fixing, Serial Range: bolts--engine-frame

1шт.

32

K10039

PACKING

Felt, Front, gaskets and fixing, Serial Range: bolts--engine-frame

1шт.

33

K10040

PACKING,3.97mm Thk

Felt, Rear, gaskets and fixing, Serial Range: bolts--engine-frame

1шт.

34

K31610

Dowel, gaskets and fixing, Serial Range: bolts--engine-frame

2шт.

35

K10419

3/8" B.S.F. x 1 3/16" L., gaskets and fixing, Serial Range: bolts--engine-frame

1шт.

36

K19241

BOLT

3/8" B.S.F. x 1" L., gaskets and fixing, Serial Range: bolts--engine-frame

11шт.

37

K19259

3/8" B.S.F. x 6 5/8" L., gaskets and fixing, Serial Range: bolts--engine-frame

4шт.

K19403

NUT

Plain, 3/8" B.S.F., gaskets and fixing, Serial Range: bolts--engine-frame

1шт.

K19482

SPRING WASHER

Spring, 3/8" dia., gaskets and fixing, Serial Range: bolts--engine-frame

16шт.

38

K901914

CYLINDER HEAD GASKET

fixing, Serial Range: bolts--engine-frame

1шт.

39

K625308

DOWEL

Cylinder Head Stud, gaskets and fixing, Serial Range: bolts--engine-frame

2шт.

40

K31949

STUD

Cylinder Head , gaskets and fixing, Serial Range: bolts--engine-frame

8шт.

41

K10023

PLUG

Welch Camshaft Bore, gaskets and fixing, Serial Range: bolts--engine-frame

1шт.

42

K10190

PLATE

Identification, be fixed to Engine after, gaskets and fixing, Serial Range: bolts--engine-frame

1шт.

K11350

Screw--Rd. Hd. 6 B.A. x 3/16" L., Plate to be fafter, gaskets and fixing, Serial Range: bolts--engine-frame

4шт.
