Запчасти Case IH 885N (9-48) - CAB FLOOR AND MOUNTINGS, 885Q, 885QH AND 885SK TRACTORS (09) - CHASSIS/ATTACHMENTS

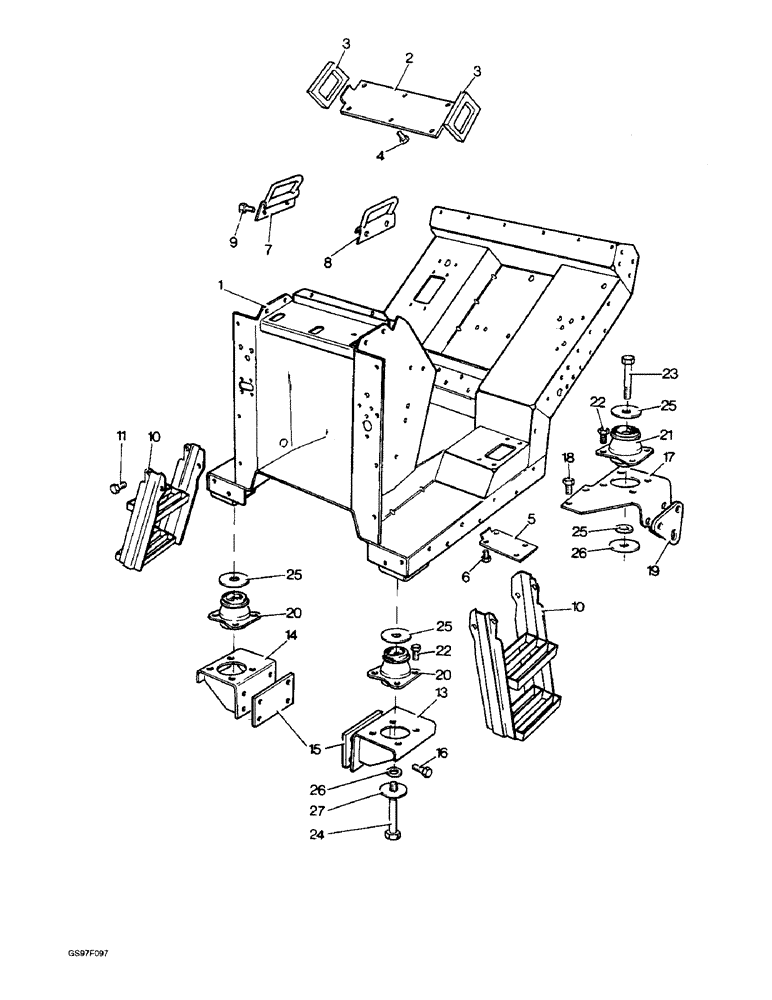

Схема запчастей Case IH 885N - (9-48) - CAB FLOOR AND MOUNTINGS, 885Q, 885QH AND 885SK TRACTORS (09) - CHASSIS/ATTACHMENTS
26
27
23
25
4
8
17
25
13
25
26
15
7
18
22
2
10
11
19
1
14
21
9
16
5
20
3
22
24
20
6
10
3
25

Артикул

Название

Примечание

Количество

1

K995436

FLOOR - cab, used with 885Q and 885QH tractors with serial number 11010300 and after, no longer available

1шт.

1

K955675

CAB

FLOOR - cab, used with 885Sk tractors with serial number 11010300 E5636 and after, no longer available

1шт.

1

K949333

CAB

FLOOR - cab, used with 885Q and 885QH tractors with serial numbers prior to 11010300, no longer available

1шт.

1

K955673

FLOOR

- cab, used with 885Sk tractors with serial numbers, Serial Range: prior-11010300

1шт.

K627753

GROMMET

PLUG - rubber, 3-3/4 inch diameter, fuel tank access, tractor serial number 11010300 and after, no longer available

1шт.

K627710

PLUG

- rubber, 3/4 inch diameter, hand clutch lever aperture, no longer available

1шт.

K627743

PLUG

- rubber, 11/32 inch diameter, hand clutch lever aperture

2шт.

K627738

GROMMET

PLUG - rubber, 7/8 inch diameter, pick-up hitch aperture, used with 885Q and 885QH tractors, no longer available

1шт.

K627743

PLUG

- rubber, 11/32 inch diameter, FWD control aperture, used with 885Q and 885QH tractors

2шт.

K627740

GROMMET

PLUG - rubber, 1-11/32 inch diameter, FWD control aperture, used with 885Q and 885QH tractors, no longer available

1шт.

353-10

PLUG,Cap, .547" OD

- rubber, 1/2 inch diameter, Hydra-Shift lever aperture (Replaces plug K628092)

1шт.

K627742

GROMMET

PLUG - rubber, 15/32 inch diameter, loader control cable apertures

2шт.

2

K950492

PLATE

- blanking, cross beam aperture, used with 885Q and 885QH tractors, no longer available

1шт.

3

K950603

PAD

- sealing, used with 885Q and 885QH tractors, no longer available

2шт.

4

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Used with 885Q and 885QH tractors (Replaces bolt K602983) Hex, 3/8"-16 x 7/8", G5, Full Thd

6шт.

492-11038

LOCK WASHER,3/8"

used with 885Q and 885QH tractors (Replaces washer K19482) 3/8"

6шт.

425-106

NUT,3/8"-16, Cl 5

Used with 885Q and 885QH tractors (Replaces nut K607045) 3/8"-16, G5

6шт.

5

K950382

COVER

PLATE - cover, shift lever aperture, no longer available

1шт.

6

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch, plate to cab floor (Replaces bolt K602735)

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Plate to cab floor (Replaces washer K626341) 1/4"

4шт.

7

K950983

HANDLE

- grab, right-hand, used with 885Q and 885QH tractors, no longer available

1шт.

8

K950984

HANDLE

- grab, left-hand, used with 885Q and 885QH tractors, no longer available

1шт.

9

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SCREW - hex, 5/16 NC x 3/4 inch, used with 885Q and 885QH tractors

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , used with 885Q and 885QH tractors (Replaces washer K19481) 5/16"

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Used with 885Q and 885QH tractors (Replaces nut K607044)

4шт.

10

K955141

STEP

- left-hand, used with 885Q and 885QH tractors with serial number 11010300 and after, no longer available

1шт.

10

K955142

STEP

- right-hand, used with 885Q and 885QH tractors with serial number 11010300 and after, no longer available

1шт.

10

K954563

LEVER

STEP - left and right-hand, used with 885Q and 885QH tractors with serial numbers prior to 11010300, no longer available

2шт.

11

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SCREW - hex, 5/16 NC x 3/4 inch, used with 885Q and 885QH tractors with serial number 11010300 and after

8шт.

11

K602846

SCREW,5/16" - 18 x 5/8", Gr S

- hex, 5/16 NC x 5/8 inch, used with 885Q and 885QH tractors with serial numbers, Serial Range: prior-11010300

7шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, used with 885Q and 885QH tractors with serial numbers prior to 11010300 (Replaces bolt K602847)

1шт.

K626682

WASHER

- flat, 5/16 inch, used with 885Q and 885QH tractors with serial number 11010300 and after

4шт.

B90396

HARDWARE

NUT - hex, 5/16 inch NC, used with 885Q and 885QH tractors with serial numbers prior to 11010300, no longer available

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , used with 885Q and 885QH tractors with serial numbers prior to 11010300 (Replaces washer K19481) 5/16"

8шт.

13

K952942

MOUNTING PARTS

BRACKET - mounting, left-hand front, no longer available

1шт.

14

K952943

MOUNTING PARTS

BRACKET - mounting, right-hand front, no longer available

1шт.

15

K950383

SPACER

- packing, brackets to main frame (Replaces spacer K952941)

2шт.

16

K603277

SCREW

BOLT - hex, 5/8 NC x 1-7/8 inch, brackets to main frame, no longer available

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Brackets to main frame (Replaces washer K19485) 5/8"

8шт.

17

K949371

MOUNTING PARTS

BRACKET - mounting, left-hand rear, no longer available

1шт.

K949372

MOUNTING PARTS

BRACKET - mounting, right-hand rear, no longer available

1шт.

18

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, brackets to rear axle and reductions (Replaces bolt K603141)

10шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Brackets to rear axle and reductions (Replaces washer K626345) 1/2"

10шт.

19

K952704

SHIM

- 1/16 inch, brackets to rear axle and reductions, no longer available

2шт.

20

K949839

BUMPER

MOUNTING - rubber, front, no longer available

2шт.

21

K949838

DAMPER

MOUNTING - rubber, rear

2шт.

22

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, rubber mountings to brackets (Replaces bolt K602984)

16шт.

492-11038

LOCK WASHER,3/8"

rubber mountings to brackets (Replaces washer K19482) 3/8"

16шт.

K19472

WASHER

- flat, 3/8 inch, rubber, Serial Range: mountings-brackets

16шт.

425-106

NUT,3/8"-16, Cl 5

Rubber mountings to brackets (Replaces nut K607045) 3/8"-16, G5

16шт.

23

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch, used with 885Q and 885QH tractors (Replaces bolt K601332)

2шт.

23

K601378

BOLT

- hex, 5/8 NC x 6-1/2 inch, used with 885Sk tractors

2шт.

24

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch (Replaces bolt K601324)

2шт.

25

K949668

WASHER

- special, grooved, 5/8 x 3-5/16 inch, no longer available

4шт.

26

K626930

WASHER

- hex, 5/8 x 1-1/2 inch

4шт.

27

K955087

WASHER

- flat (Replaces washer K626931)

4шт.

K626855

WASHER

- flat, 5/8 inch

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer K19485) 5/8"

4шт.

425-1010

NUT,5/8"-11, G5

2 used with 885Q and 885QH tractors, 4 used with 885Sk tractors (Replaces nut K607048) 5/8"-11, G5

1шт.

K955524

PLATE

NUT - special, 5/8 inch NC, used with 885Q and 885QH tractors, no longer available

2шт.

Выбрано товаров: 60
