Запчасти Case IH 885N (9-44) - CAB ROOF, 885LP TRACTORS (09) - CHASSIS/ATTACHMENTS

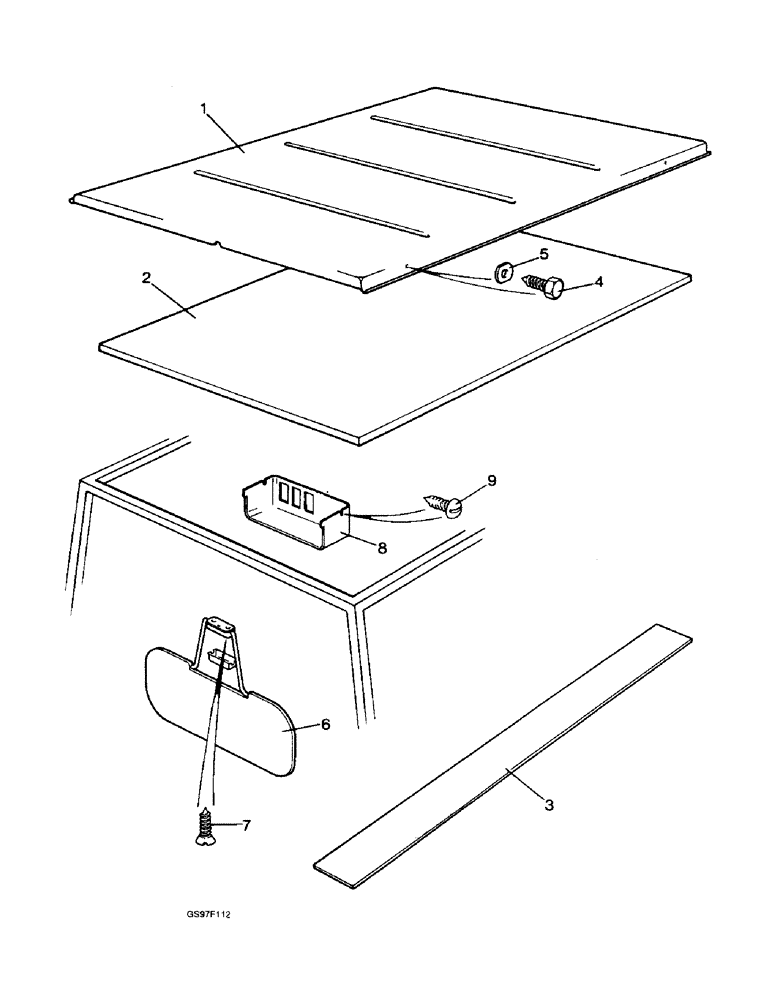

Схема запчастей Case IH 885N - (9-44) - CAB ROOF, 885LP TRACTORS (09) - CHASSIS/ATTACHMENTS
9
3
7
4
2
8
5
6
1

Артикул

Название

Примечание

Количество

K260060

HEATER

ROOF ASSEMBLY - cab, with heater, Sekura 414.077, no longer available, Includes: Ref. 1 - 3

1шт.

K260061

TOP

ROOF ASSEMBLY - cab, without heater, Sekura 41.175, no longer available, Includes: Ref. 1 - 3

1шт.

1

K260062

PANEL

ROOF - cab, with heater, Sekura 414.075, no longer available

1шт.

K260063

PANEL

ROOF - cab, without heater, Sekura 41.176, no longer available

1шт.

2

K260064

FOAM

INSULATION - foam, with heater, Sekura 414.076, no longer available

1шт.

K260065

FOAM

INSULATION - foam, without heater, Sekura 21.903, no longer available

1шт.

3

K260066

PANEL

TAPE - roof, Sekura 972.020, no longer available

1шт.

4

K965565

SCREW

- self-tapping, M8 x 16 mm, Sekura 916.234, no longer available

4шт.

5

K965552

WASHER

- oval, M8 Sekura 912.094, no longer available

4шт.

6

K200034

X

VISOR - sun, without heater, Sekura 944.010, no longer available

1шт.

7

K260067

SCREW

- self-tapping, without heater, Sekura 916.265, no longer available

1шт.

8

K260068

COVER

- wiper, without heater, Sekura 414.067, no longer available

1шт.

9

K260031

SCREW

- self-tapping, without heater, Sekura 916.280, no longer available

2шт.

Выбрано товаров: 13
