Запчасти Case IH 885N (9-42) - CAB ROOF AND SIDE PANELS, 885Q AND 885QH TRACTORS (09) - CHASSIS/ATTACHMENTS

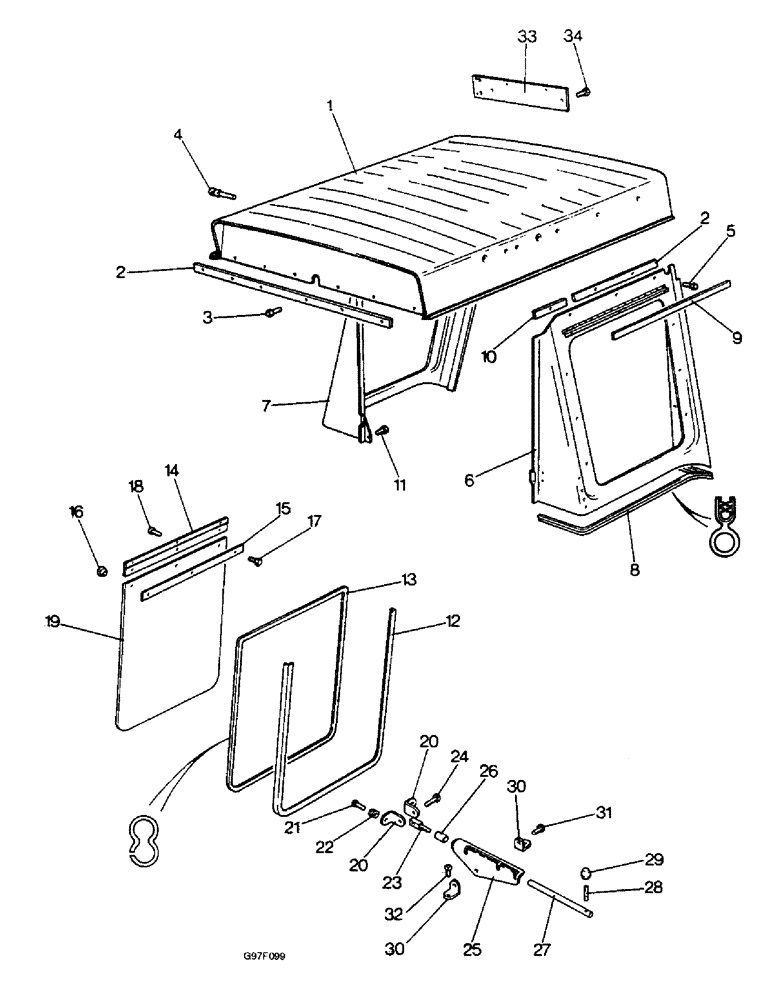

Схема запчастей Case IH 885N - (9-42) - CAB ROOF AND SIDE PANELS, 885Q AND 885QH TRACTORS (09) - CHASSIS/ATTACHMENTS
29
8
2
33
27
16
9
5
18
14
11
30
21
7
23
1
24
34
31
25
19
6
26
28
30
32
10
22
13
4
12
15
20
3
2
17
20

Артикул

Название

Примечание

Количество

1

K955188

CAB

ROOF - cab, tractor serial number 11010300 and after, no longer available

1шт.

1

K775585

ROOF

- cab, tractor serial numbers, Serial Range: prior-11010300

1шт.

2

K692017

RUBBER STRIP

STRIP - plastic, 1 x 1/16 inch, roof to front frame, no longer available

1шт.

3

K603926

SCREW

- hex, 1/4 NC x 3/4 inch, roof to front frame, six used with tractor serial number 11010300 and after, eight used with tractor serial numbers, Serial Range: prior-11010300

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Roof to front frame (Replaces washer K626341) 1/4"

8шт.

K627745

GROMMET

- roof panel, 3/4 inch, tractor serial numbers prior to 11010300, no longer available

4шт.

4

K950477

BOLT

- lifting, no longer available

4шт.

K692065

BOLT

INSERT - threaded, 1/4 inch NC, roof and side panels to upper frame, twenty used with tractor serial number 11010300 and after, twenty-eight used with tractor serial numbers prior to 11010300, no longer available

1шт.

5

K603926

SCREW

- hex, 1/4 NC x 3/4 inch, roof and side panels to upper frame, twenty-six used with tractor serial numbers prior to 11010300, twenty used with tractor serial number 11010300 and after

1шт.

K626662

WASHER

- flat, 1/4 inch, roof and side panels to upper frame, twenty-six used with tractor serial numbers prior to 11010300, twenty used with tractor serial number 11010300 and after (Replaces washer K19470)

1шт.

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER - external tooth lock, roof and side panels to upper frame, twenty-six used with tractor serial numbers prior to 11010300, twenty used with tractor serial number 11010300 and after (Replaces washer K626552)

1шт.

6

K955174

PANEL

- side, left-hand, used with tractor serial number 11010300 and after, no longer available

1шт.

6

K950469

PLATE

PANEL - side, left-hand, used with tractor serial numbers prior to 11010300, no longer available

1шт.

7

K955173

PLATE

PANEL - side, right-hand, used with tractor serial number 11010300 and after, no longer available

1шт.

7

K950470

PANEL

- side, right-hand, used with tractor serial numbers prior to 11010300, no longer available

1шт.

8

K691979

PANEL

STRIP - sealing, no longer available

1шт.

9

K692156

STRIP - plastic, 1 x 1/16 inch, no longer available

1шт.

10

K950219

STRIP

- plastic, 8 inch, used with tractor serial numbers prior to 11010300, no longer available

2шт.

11

K602846

SCREW,5/16" - 18 x 5/8", Gr S

- hex, 5/16 NC x 5/8 inch, side, Serial Range: panels-fenders

2шт.

K626682

WASHER

- flat, 5/16 inch, side, Serial Range: panels-fenders

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , side panels to fenders (Replaces washer K19481) 5/16"

2шт.

12

K955702

PANEL

EDGING - panel, right-hand, used with tractor serial number 11010300 and after, no longer available

1шт.

13

K955705

SEAL

EXCLUDER - draught, panel to opening window, used with tractor serial number 11010300 and after, no longer available

1шт.

14

K955728

HINGE

- right-hand window, used with tractor serial number 11010300 and after, no longer available

1шт.

15

K955703

STRIP

- backing, used with tractor serial number 11010300 and after, no longer available

1шт.

16

K955706

SLEEVE

BUSHING - rubber, used with tractor serial number 11010300 and after, no longer available

3шт.

17

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch, tractor serial number 11010300 and after

3шт.

18

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

- hex, 1/4 NC x 5/8 inch, panel to opening window, used with tractor serial number 11010300 and after, no longer available

3шт.

K626662

WASHER

- flat, 1/4 inch, tractor serial number 11010300 and after

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Tractor S/N 11010300 and after 1/4"

3шт.

234-10025

NUT,Crown, 1/4"-20

- dome, 1/4 inch NC, tractor serial number 11010300 and after

3шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, used with tractor serial number 11010300 and after

3шт.

19

K955192

GLASS

- window, right-hand side panel, used with tractor serial number 11010300 and after, no longer available

1шт.

20

K955714

BRACKET

- angle, used with tractor serial number 11010300 and after, no longer available

2шт.

21

K691892

SCREW

- hex, 1/4 NC x 1 inch, used with tractor serial number 11010300 and after, no longer available

2шт.

22

K955707

GROMMET

BUSHING - rubber, used with tractor serial number 11010300 and after, no longer available

2шт.

23

K955713

SCREW

- pivot, used with tractor serial number 11010300 and after, no longer available

1шт.

24

470-12520

SCREW,Slotted Pan Hd, 1/4"-20 x 1 1/4"

- machine, pan head slotted, 1/4 NC x 1-1/4 inch, used with tractor serial number 11010300 and after (Replaces screw K603931)

1шт.

K626662

WASHER

- flat, 1/4 inch, used with tractor serial number 11010300 and after

5шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, , Used with Tractor S/N 11010300 and after (Replaces nut K607300) 1/4"-20, GB

3шт.

K956195

BOLT

CATCH ASSEMBLY - window, used with tractor serial number 11010300 and after, no longer available, Includes: Ref. 25 - 31, Washer, and Nut

1шт.

25

K955708

BOLT

BARREL - catch, used with tractor serial number 11010300 and after, no longer available

1шт.

26

K955711

BUSHING

- nylon, used with tractor serial number 11010300 and after, no longer available

1шт.

27

K955712

BOLT

- barrel, used with tractor serial number 11010300 and after, no longer available

1шт.

28

K955715

STUD

- 3/8 x 1/4 inch NC, used with tractor serial number 11010300 and after, no longer available

1шт.

29

K950493

KNOB

- stud, used with tractor serial number 11010300 and after

1шт.

30

K955714

BRACKET

- angle, used with tractor serial number 11010300 and after, no longer available

2шт.

31

K603297

SCREW - hex, 1/4 NC x 7/8 inch, used with tractor serial number 11010300 and after, no longer available

1шт.

K626662

WASHER

- flat, 1/4 inch, tractor serial number 11010300 and after

1шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, , Used with Tractor S/N 11010300 and after (Replaces nut K607300) 1/4"-20, GB

1шт.

32

K603926

SCREW

- hex, 1/4 NC x 3/4 inch, catch to fender, used with tractor serial number 11010300 and after

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Catch to fender, used with tractor S/N 11010300 and after (Replaces washer K626341) 1/4"

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch, catch to fender, used with tractor serial number 11010300 and after (Replaces nut K607043)

2шт.

33

K952425

PLATE

- number, no longer available

1шт.

33

K691892

SCREW

- hex, 1/4 NC x 1 inch, used with tractor serial number 11010300 and after, no longer available

4шт.

34

K604093

SCREW

- hex, 1/4 NC x 1/2 inch, no longer available

2шт.

K627705

GROMMET

- 1/2 inch, lamp lead, no longer available

1шт.

Выбрано товаров: 57
